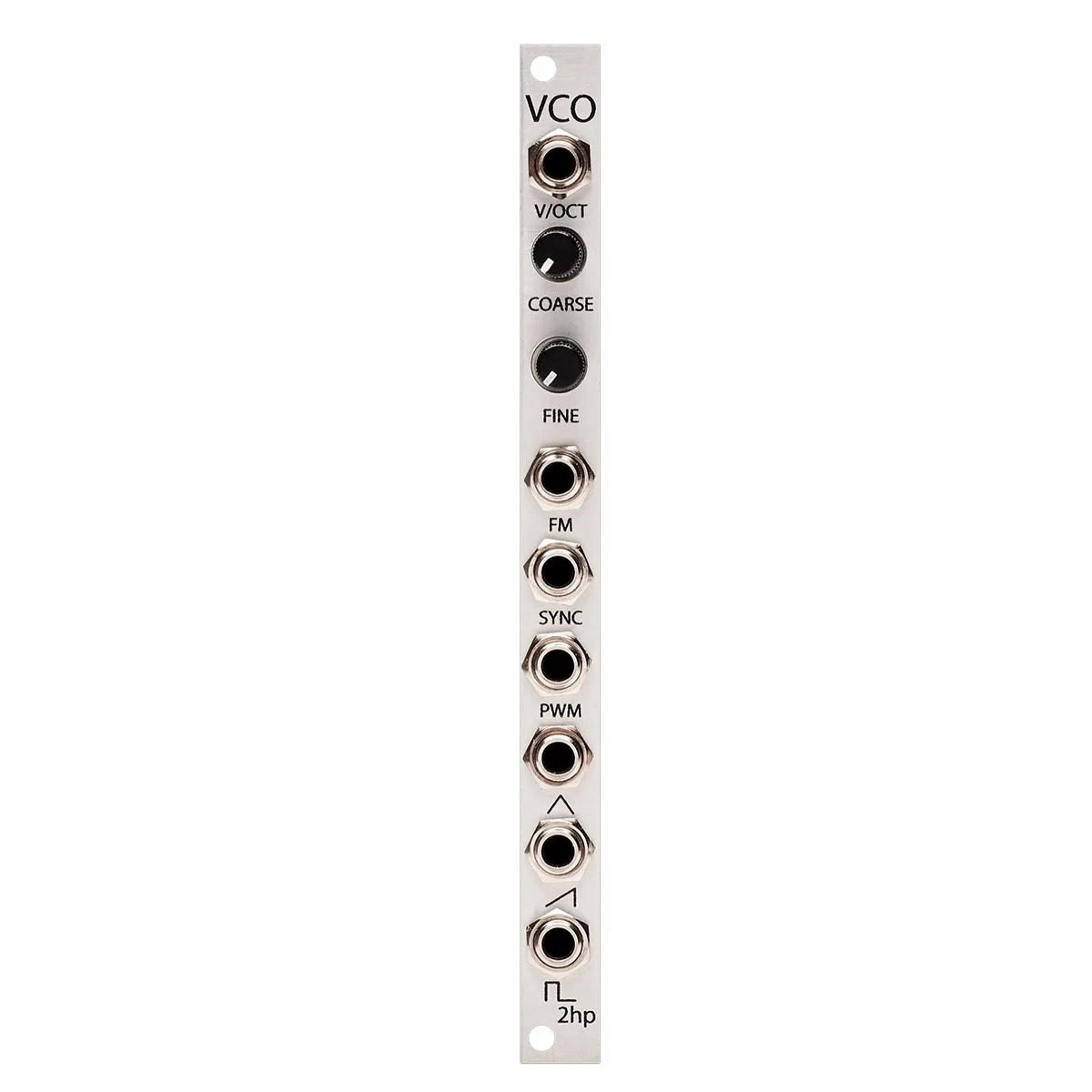

2hp VCO Eurorack Oscillator Module (Silver)

VCO is an analog voltage controlled oscillator based on the reissue of the legendary Curtis CEM3340 IC.

Many believe this chip to be the greatest sounding analog oscillator of all time. VCO features simultaneous triangle, sawtooth, and square wave outputs with linear FM, hard sync, and PWM capabilities. Accurate 1V/Oct tracking across 10+ octaves provides a huge frequency range for melodies or dramatic sweeps.

– Add some analog warmth to your patches with VCO.
– CEM3340 based architecture
– Analog VCO
– 10+ octave range with accurate 1V/Oct tracking
– PWM control

Specifications

Width: 2hp
Depth: 42mm
Power: 27 mA +12V, 24 mA -12V, 0 mA 5V

Manufacturer product page here.

Product manual here.
