- Four CV-controlled Clock Divider/Multipliers
- Tap tempo button and five sync’ed clock outputs make the QCD perfect for head-of-the-chain “Master” clock module
- Tap clock output runs at the tapped tempo (even if other channels are being clocked externally)
- Create complex rhythmic patterns by patching multiple channels into each other’s Div/Mult CV and Reset
- each of the four channels has an independent clock IN, OUT, Reset and Div/Mult CV
- Divide or Multiply incoming clock from /32 to x16 on each channel
- -Detented knob to snap to integer division/multiples
- -CV jack to modulate Div/Mult amount
- Reset jack (per channel) restarts the clock when a trigger is received (alters phase of clock)
- Clock input jacks are normalized downwards: Tap->Red->Black->Blue->Green
- Clock outputs stop automatically when incoming clock stops
- LEDs blink to output clocks’ tempos
- 5V clock output pulses, fully buffered. Default is square-wave, and PW is controllable with expander
- Daisy chain multiple QCDs or other clock modules using Tap Out jack
- Header on the PCB to connect to Quad Pingable LFO (QPLFO) to provide four CV Skew-able, CV Div/Mult-able envelopes
- Interfaces with QCD Expander for more features (Pulse Width, Inverted Gate, attenuverters for CV inputs)
Specifications
Width: 10hp
Depth: 26 mm
Power: 48 mA +12V, 40 mA -12V, 41 mA 5V
You're currently browsing the Elevator Sound EU site.
switch to the U.K site >
On Sale

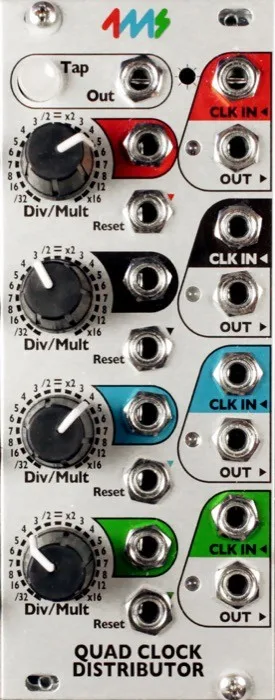

4ms Quad Clock Distributor Eurorack Module (QCD)
In Stock
Ready to ship worldwide!
€269.00
inc. VAT
€229.00 inc. VAT
€189.26 ex. VAT
In stock
Bear in mind prices on the site are initially shown including Spanish VAT (21%).
After entering your shipping address at checkout prices on the site will update to show the correct VAT amount due to us based on your location. If purchasing from outside the EU, VAT, handling fees, and import duties will potentially be due on delivery.
