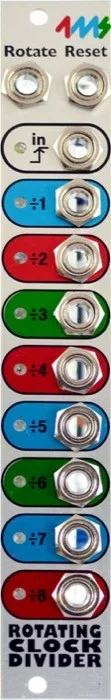

The Rotating Clock Divider (RCD) produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.
Specifications
Width: 4hp
Depth: 35 mm
Power: 33 mA +12V, 4 mA -12V, 0 mA 5V
