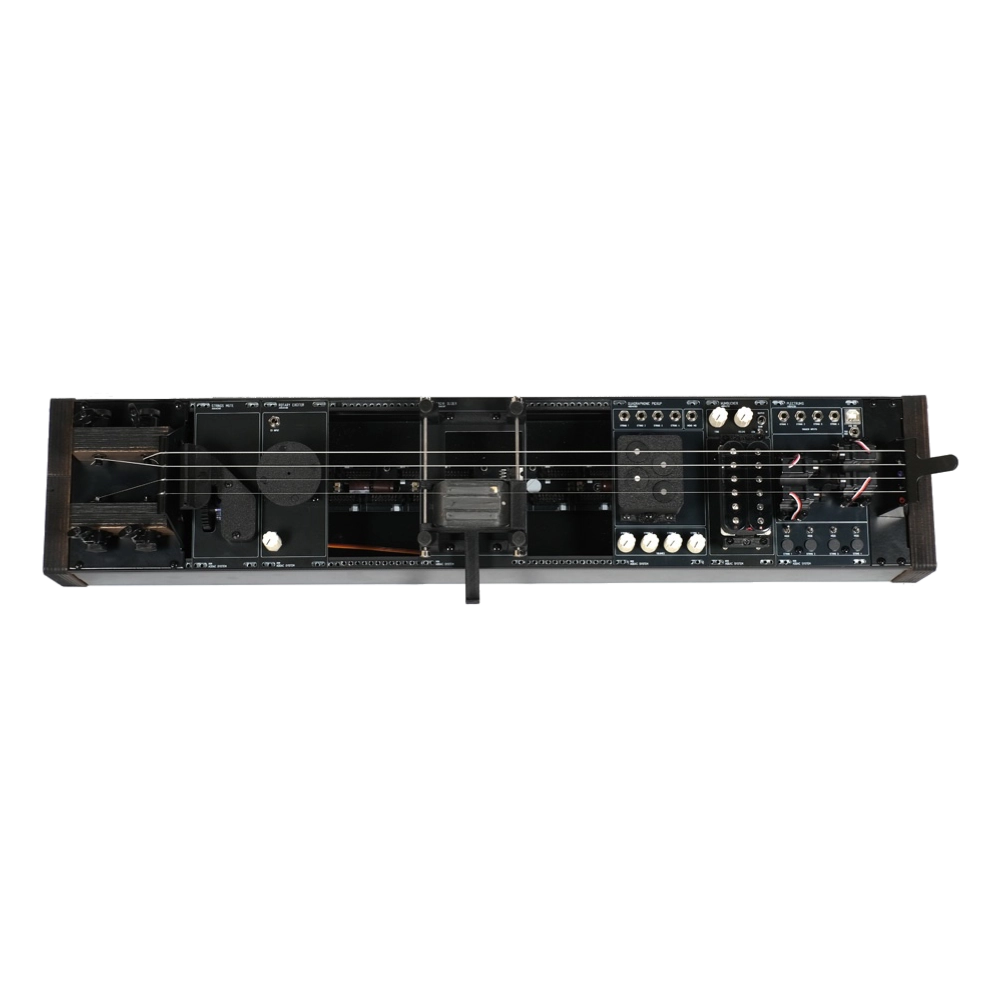

The ADDAC 120F Strings Frame is made specifically for the ADDAC Four Strings Series.
Power Specifications
- AC Input: 90v to 240v
- Output: ±12V
- Current: +12V 1.5A / -12V 1.5A
- Busboards with 19 connectors, providing +5V (draws from +12V, 500mA max. per busboard)
Featuring shutdown protection for:
- Over Current – when maximum current is exceeded (for when a module ribbon cable is reversed)
- Over Heating – if the AC Brick is over heating
- Over Voltage – if the voltage changes above or below the expected output
If one of the above issues happens, the PSU will enter an intermittent ON/OFF state until the issue is corrected, preventing damage to the PSU and modules.
