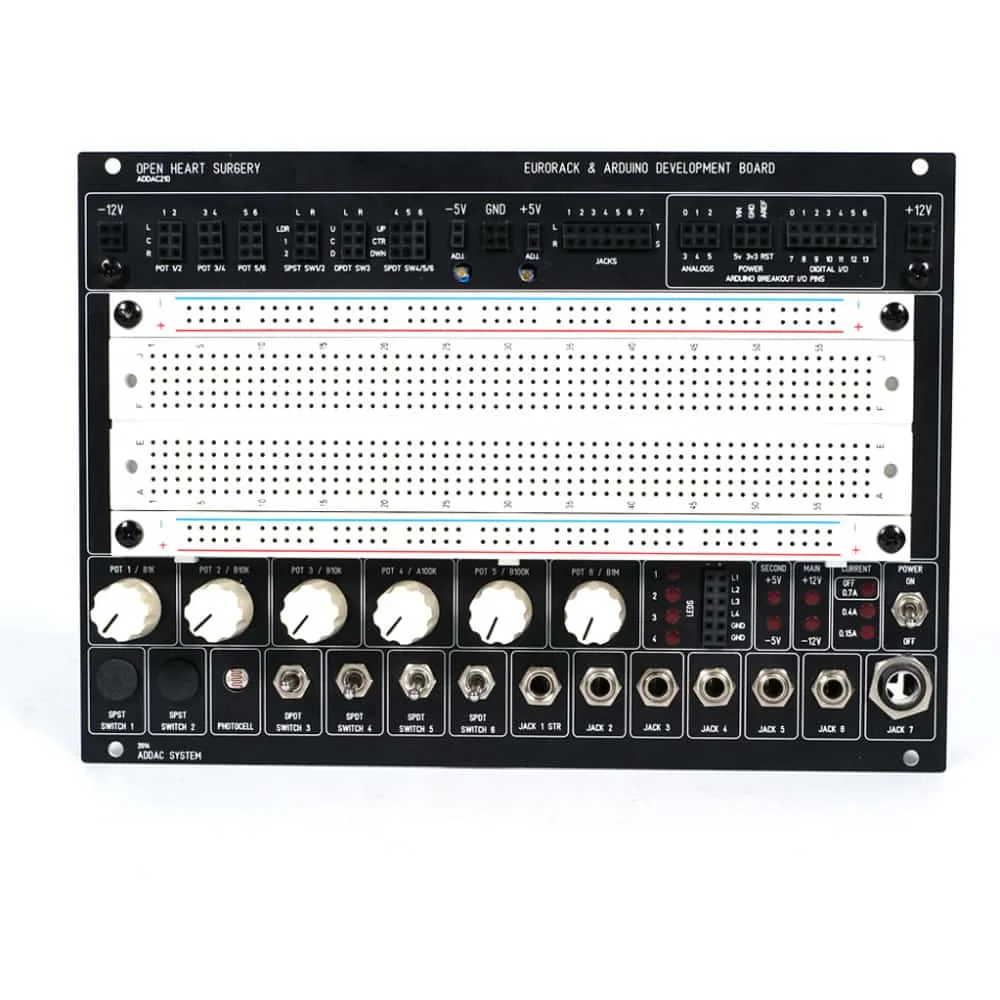

ADDAC 210 Open Heart Surgery Eurorack Module

The ADDAC 210 is a development platform optimiwed for the Eurorack electronic enthusiast.

Feb 08 2023 Update:
As most switching power supplies already have built in protections we decided to remove the relays power off protection circuit.
We kept the current detection circuitry but updated the current thresholds so now leds will light up in 30mA intervals (30, 60 and 90mA instead of 150, 400, 750mA as it’s labeled on the panel).

Frontpanel parts:

• On/Off Power switch
• 1x breadboard
• 1x 1K Pots
• 2x 10k Pot
• 1x 100k Log Pot
• 1x 100k Pot
• 1x 1M Pot
• 4x Leds
• 1x Photocell
• 2x SPST (normally open) push switches
• 1x DPDT (on/on) toggle switch
• 1x SPDT (on/on) toggle switch
• 2x SPDT (on/off/on) toggle switches
• 1x 3.5mm stereo jack
• 5x 3.5mm mono jack
• 1x 1/4” mono jack

Ships with:

• 1M Ribbon Cable and 55cm standoff Spacers for desktop operation.
• 1 Extra breadboardScrews and nylon washers

Specifications

• Width: 36hp
• Depth: 35mm
• Power: +12V 700mA

Manufacturer product page here.
