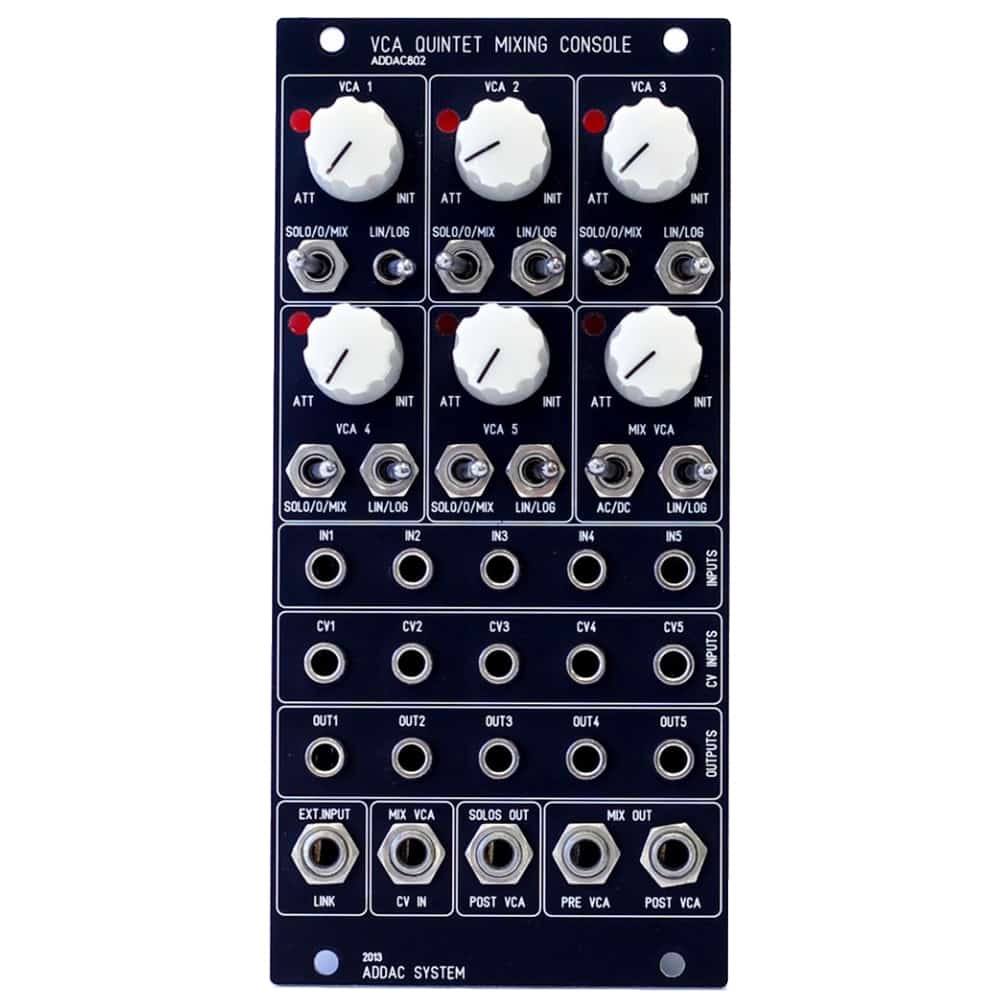

This module comes to update our previous ADDAC802 Audio Mixer
Features
- 5 Channel Mixer
- 1 Master Output
- External input into the Mix channel for daisy chaining.
- 2 independent mixing paths, Solo and Mix
- Mix Output includes a 6th VCA with Pre and Post outputs
- Each of the 5 channels has:
. VCA with initial Knob
. Monitor LED
. Independent output
. Linear or logarithmic control
. Solo/Off/Mix switch that routes their audio to the Solo Channel or the Mix channel. In Off position the VCA does not go to the outputs.
All 5 VCA’s can be used separately for different sources (audio or cv) or mix in 2 different chains.
Outputs:
. 1 Pre Master VCA output
. 1 Post Master VCA output
. 1 Solo output
Specifications
Width: 12 hp
Depth: 55 mm
Power: +190mA/-150mA
