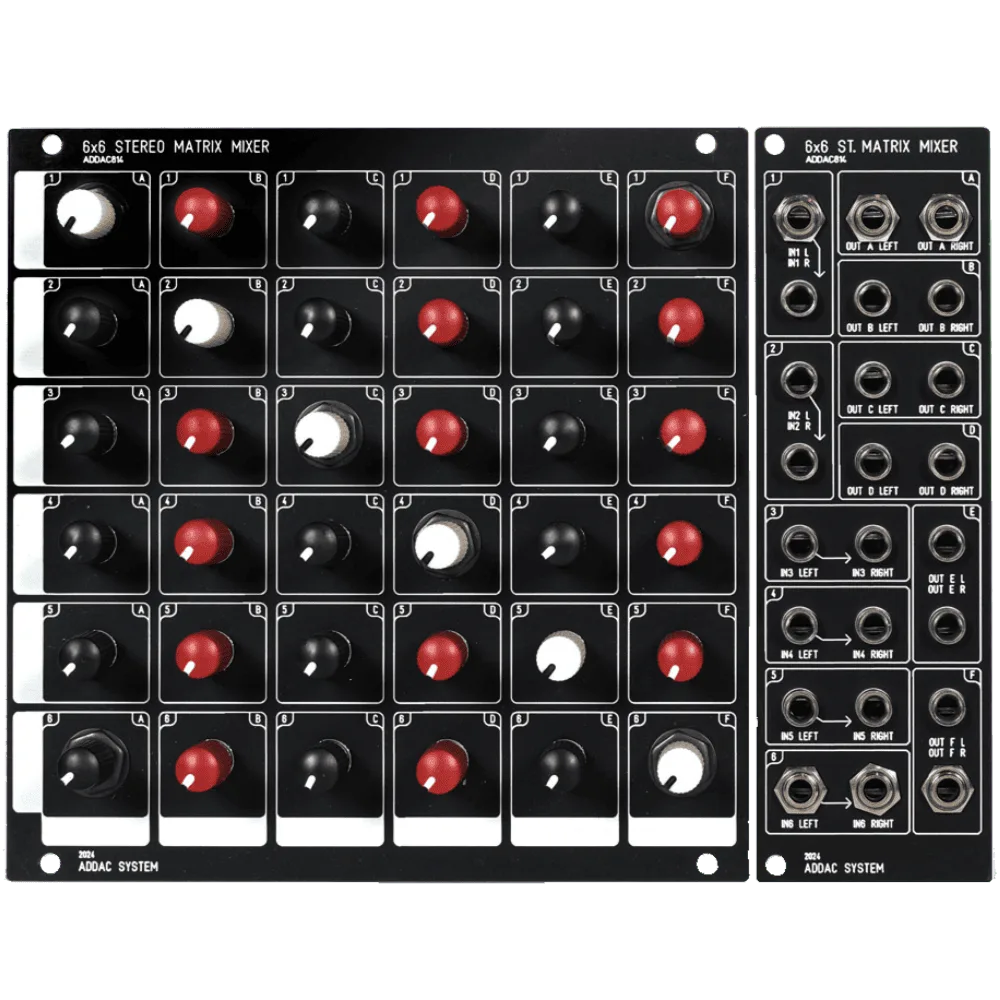

ADDAC 814 Eurorack 6×6 Stereo Matrix Mixer Module

425.00 inc. VAT

351.24 ex. VAT

Bear in mind prices on the site are initially shown including Spanish VAT (21%).

After entering your shipping address at checkout prices on the site will update to show the correct VAT amount due to us based on your location. If purchasing from outside the EU, VAT, handling fees, and import duties will potentially be due on delivery.





Product Info


ADDAC is pleased to announce their take on matrix mixers; a 6×6 stereo matrix easily expandable to larger configurations. Matrix mixers may need some time to get used to but they are very much self explanatory, each knob controls the volume of a matrix point routing the respective input to the desired output.

The flexibility of a matrix mixer is far superior to a standard mixer, the possibility to route any input to any single or multiple outputs allow for very complex chains, combining parallel and series processing while easily reconfigurable without any extra patching.

Features

  • All Inputs Left channels are normalled to the Right Inputs.
  • Blank areas on the left and bottom edges of the panel allow for the user to write all the inputs and outputs sources that each channel is connected to.
  • Different coloured knobs for faster visual recall-ing: Black for A,C,E Outputs; Dark Red for B,D,F Outputs.
  • Cream knobs for potential feedback diagonal: 1A, 2B, 3C, 4D, 5E, 6F.
  • DC coupled circuitry, can be used to mix both audio or cv signals.
  • Jumpers on the back of both modules allow the user to set each channel independently to Line or Synth Level, making it easier to integrate with external sources, sound processors or guitar pedals.

Specifications

  • Width: 25hp + 8hp (33hp total)
  • Depth: 45mm
  • Power: +12V 140mA / -12V 140mA

Manufacturer product page here.
Product manual here.
