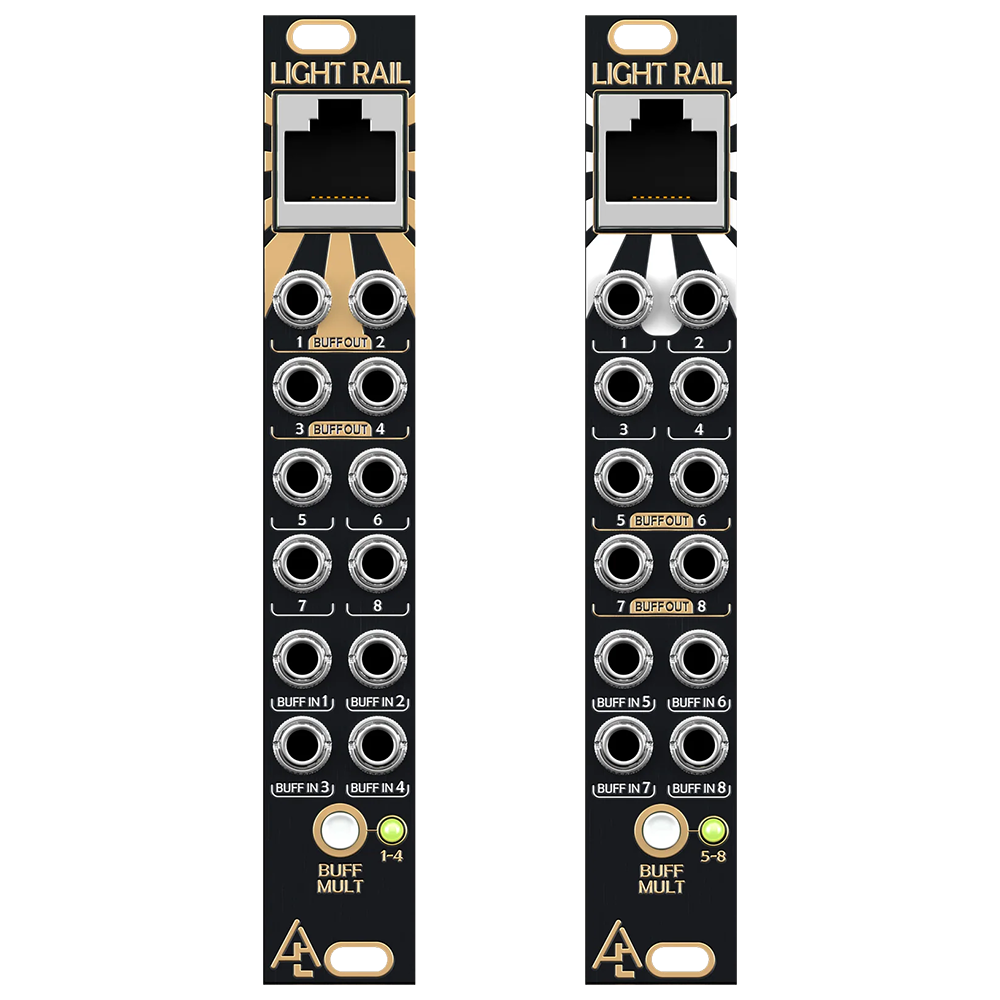

8 channels of audio or modulation over ethernet. There are two modules and a 3′ CAT7e cable to connect them together. There are 8 total channels that are unbuffered and bi-directional. The primary usage is to connect two cases or just send a bundle of signals from one part of your larger case to another. You also get the option of buffering up to four channels on each side. This gives you a local copy of the signal and sends buffered copy to the other module, saving you from having to use a MULT to keep a local copy.
Some notes:
- When one side of the Light Rail is in buffered mode, you cannot send signals from the opposite side on those 4 buffered channels (the other 4 channels can still be used in bi-directional mode)
- If you are after a different longer/shorter cable, you will get the best performance with CAT7e as it offers the shielding, which is used for the ground
- While the cross channel bleed is minimal, you will notice some very minor cross talk between the channels
Specifications
- Width: __hp
- Depth: 35mm
- Power: +12V __mA / -12V __mA
