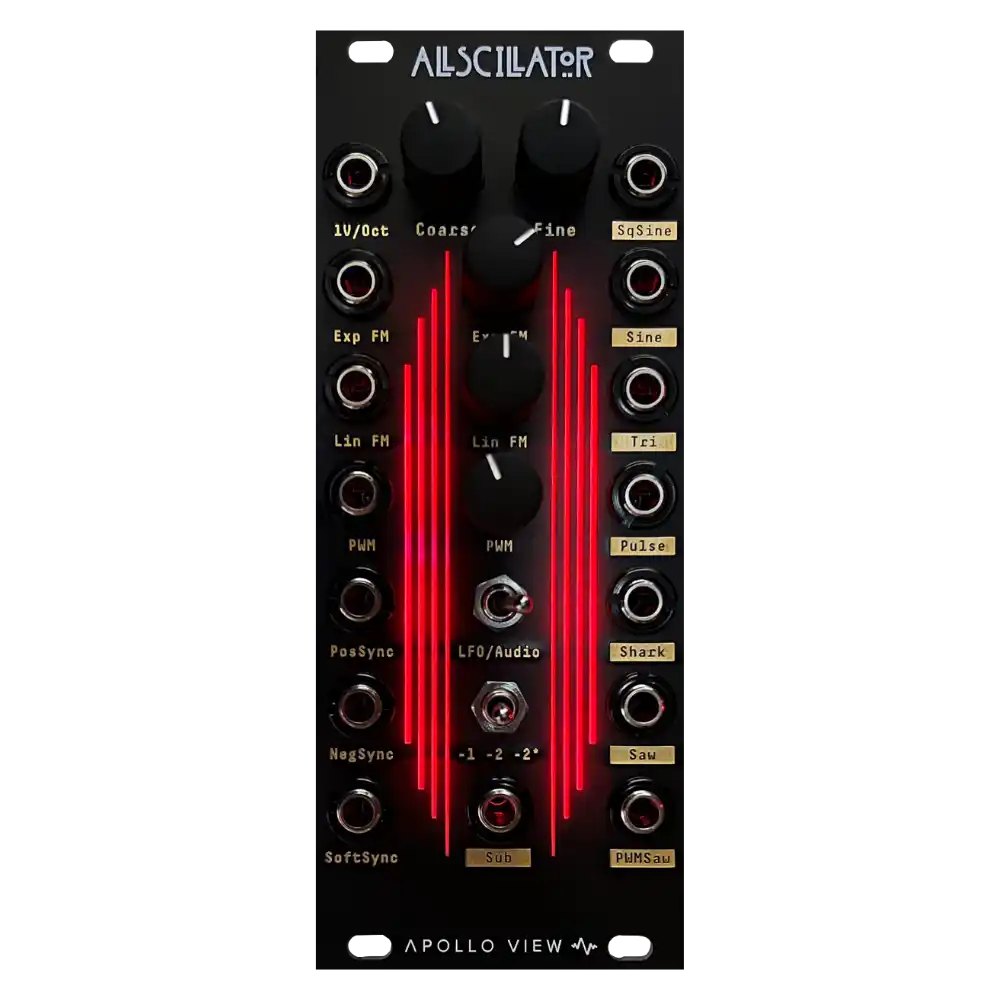

ALL’ the oscillator waveforms in 10 HP – No ordinary 3340 VCO!
Extremely stable across all temperatures, wide-ranging (0.0011Hz – 20kHz), all analogue triangle core VCO / LFO / Ultra-LFO based on 3340 VCO IC, which utilises the full potential of the 3340’s capabilities and adds additional wave-shaped outputs.
Many believe this chip to be the greatest-sounding analogue oscillator of all time.
Eight simultaneously available waveforms:
- Square Sine
- Sine
- Tri
- Pulse (PWM)
- Sharktooth
- Saw
- PWM Saw
- Sub (-1 Octave, -2 Octave and -2* Octave Pulse)
Features
- 1V/oct tracking over +10 octaves
- Eight simultaneously available waveforms
- Unique PWM Saw
- Sub Pulse waveform (-1 octave, -2 octave, -2* octave)
- Audio / LFO / Ultra LFO modes (up to 15 mins)
- Exponential Frequency Modulation
- Linear Frequency Modulation
- Exp FM and Lin FM simultaneously available
- Positive edge Hard Sync
- Negative edge Hard Sync
- Soft Sync
- 3 Sync types simultaneously available
- Coarse Knob sweeps 5 octaves in Audio mode
- Fine Knob sweeps -+5 semitones in Audio mode
- Extremely stable across all temperatures
Specifications
- Width: 10hp
- Depth: 40mm
- Power: +12V 135mA / -12V 120mA
