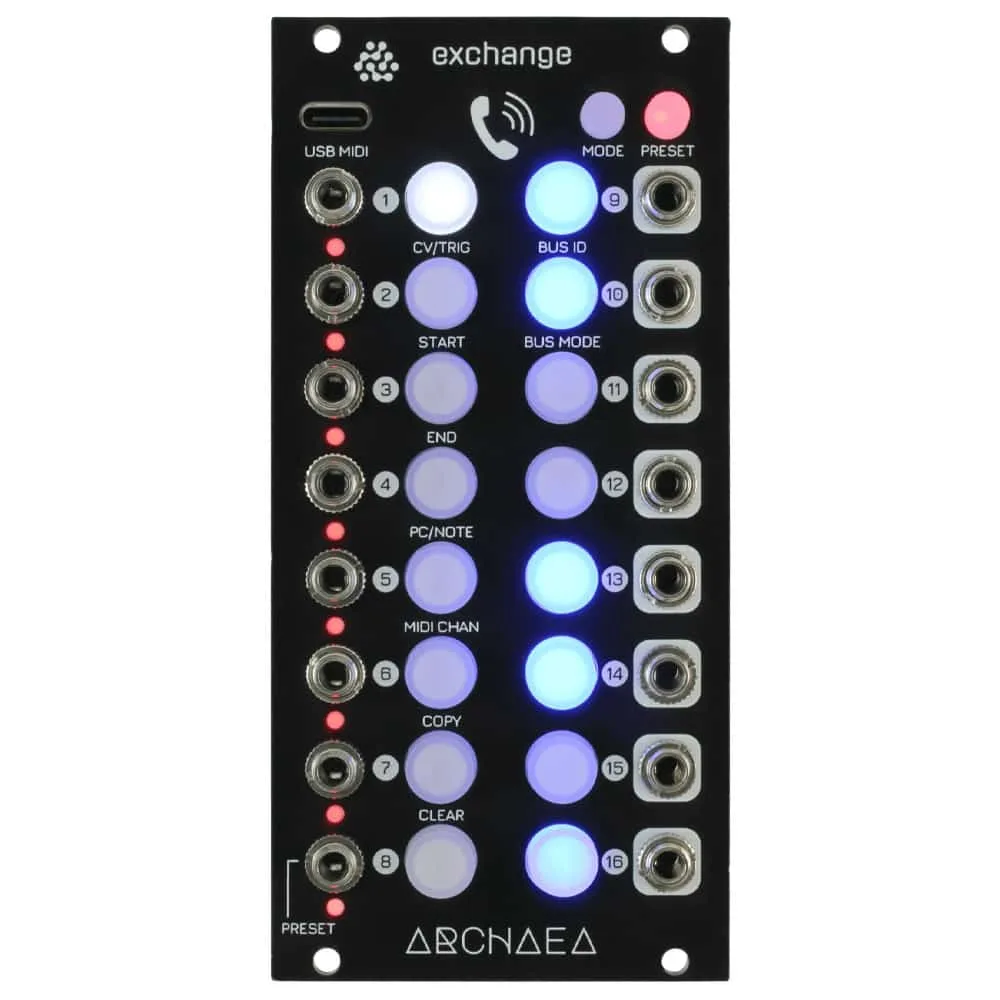

Exchange is a patching module where the 8 inputs can be switched to any of the 8 outputs. By connecting other modules to Exchange, patches can be created using the 8 input and output buttons, and stored as presets for instant re-patching.
Exchange modules can be connected in a chain using connectors at the rear of the module, and then synchronised to handle larger, more complex patches. The chain inputs and outputs can also be accessed through front-panel jacks using the Expander module.
Features
- 8×8 digitally-controlled analog patching matrix
- Signal range: -10V to +10V
- 64 programmable preset slots
- USB MIDI note/PC preset change control
- Trigger sequence/trigger random/CV preset change input with programmable preset sequence range
- 8 patch chain inputs and outputs (on module rear)
- Programmable selection between an individual chain and jack inputs
- Automatic detection of input jack insertion, and switching between chain and jack inputs
- Highlighting of connection routes for inputs/outputs across chained modules
- Data Bus for synchronising presets and highlighting connections across multiple modules
Specifications
- Width: 12hp
- Depth: 32mm
- Power: +12V: 7.7mA, -12V: 7.4mA, 5V: 93mA
