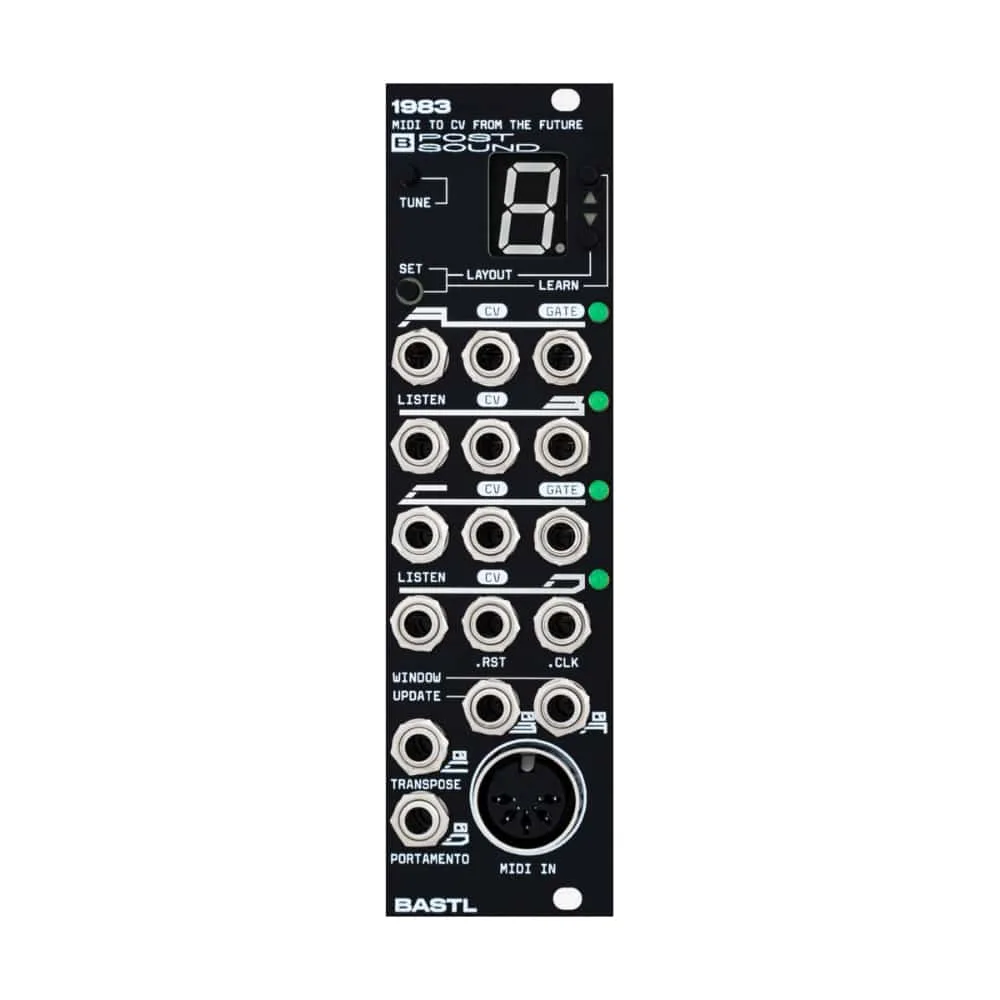

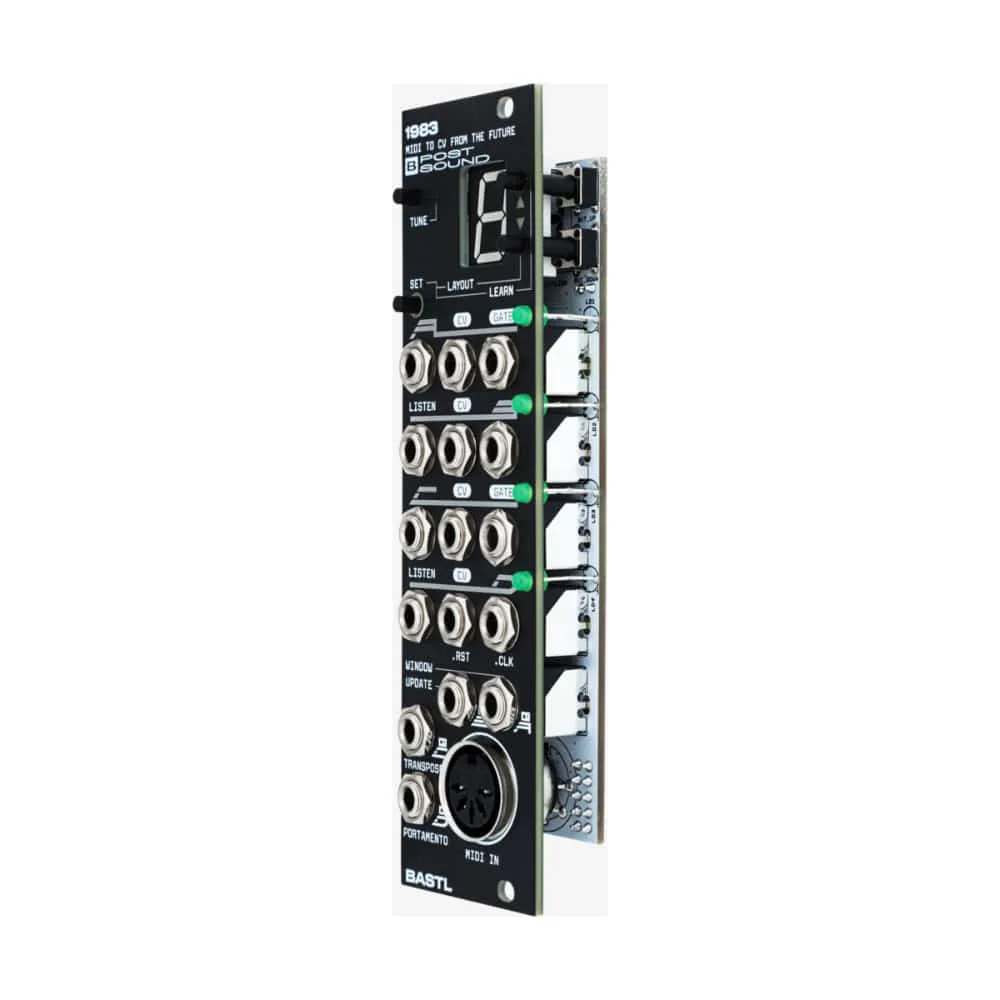

Bastl Instruments 1983 Eurorack MIDI to CV Module

The 1983 is a polyphonic MIDI to CV interface with creative voice allocation and automatic tuning capabilities.

Features

• 4 channels of CV and GATE
• LISTEN input per channel for automatic tuning
• automatic tuning by a single press of a button (offset & scaling correction)
• several tuning systems (equal temperament, just intonation, A = 440/432 Hz etc.)
• LAYOUT selection (4 voice, 3+1 voice, 2 velocity voice, 4×1 voice, 1 voice, 8 gates, 8 CCs, 4 triggers + velocity, quantiser)
• each layout can map outputs of Channel D to MIDI Clock (adjustable divider) and Reset
• LEARN mode to assign MIDI channel and other properties
• UPDATE jack to quantise outputs to clock or trigger sequences
• WINDOW jack to creatively allocate notes in the buffer to available voices
• TRANSPOSE CV to shift outputs by semitones, fifths or octaves
• PORTAMENTO CV to adjust glide time
• responds to MIDI Note On & Off, CC (also Sustain), Velocity, Pitch Bend, Clock, Aftertouch
• µTune scale editing per each semitone in octave

Specifications

• Width: 7hp
• Depth: 24mm
• Power: +12V 60mA / -12V 20mA
