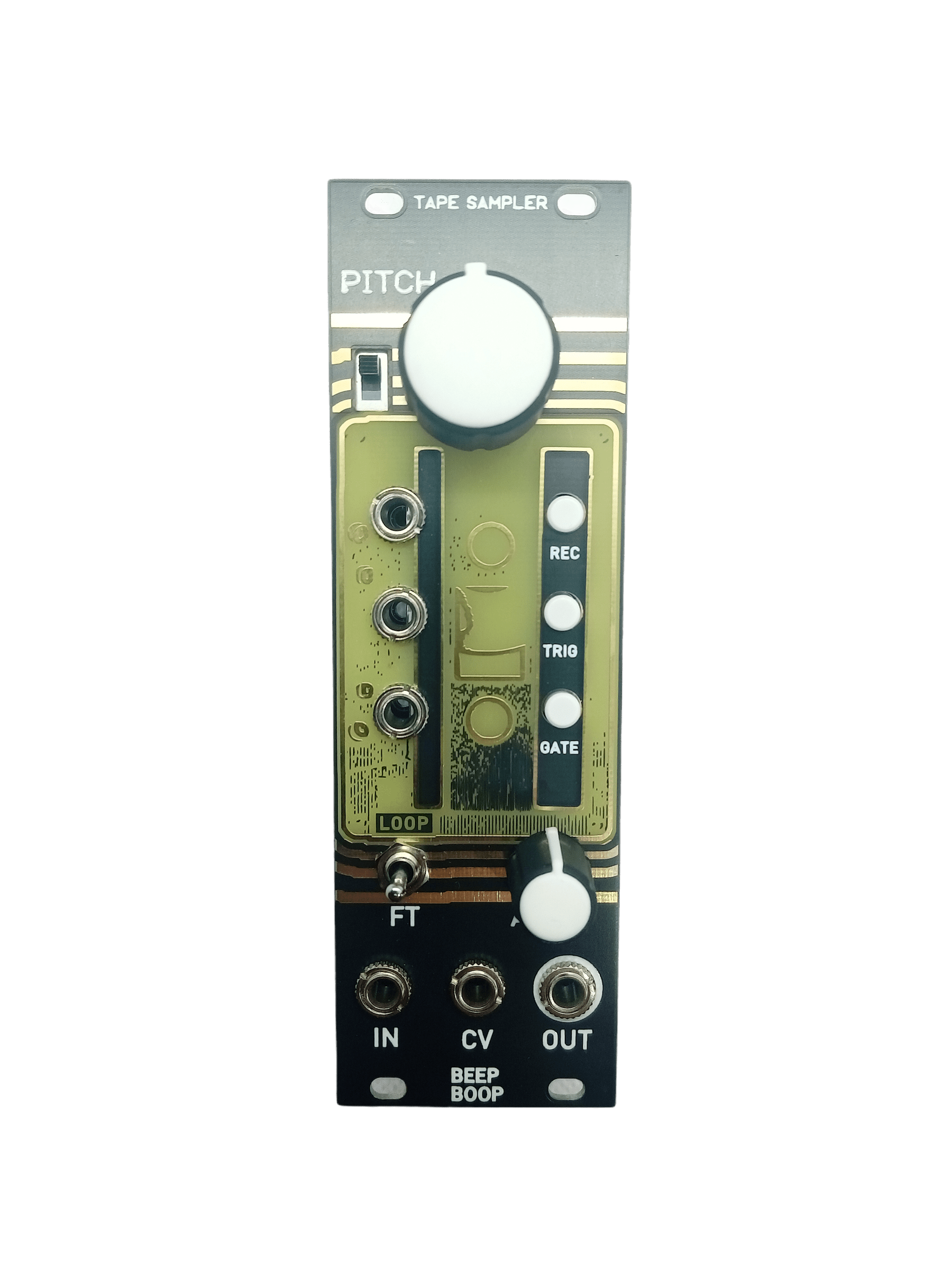

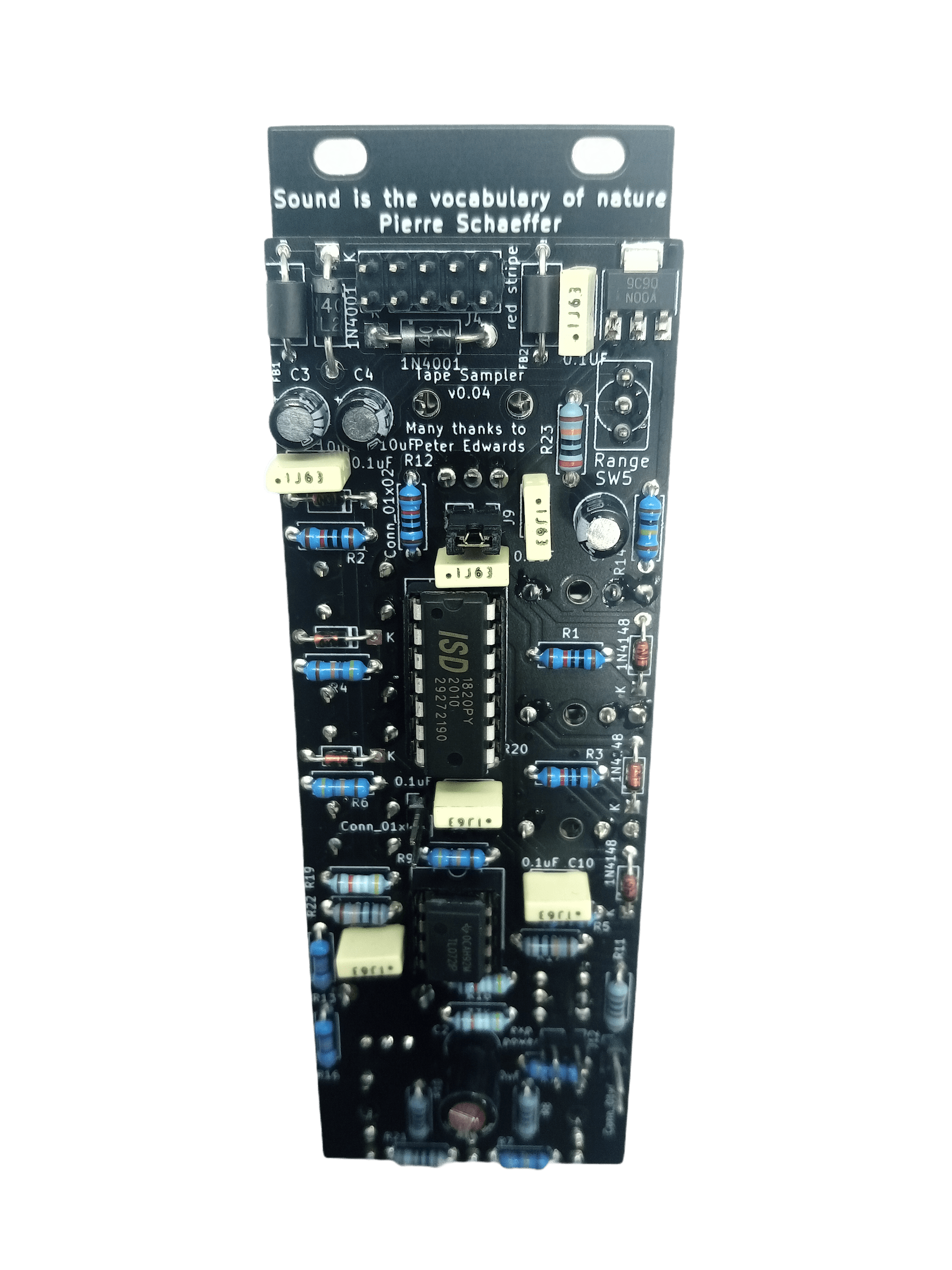

The Beepboop LO-FI “tape” sampler for Eurorack is inspired by Peter Edwards of Casper Electronicsand his experimentation with the ISD1820 sampler chip. The name “tape” is given to the module due to the Lo-fi sample rate which is similar to the classic Casio SK1 sampler keyboard.
The module can sample and save one lofi audio file of up to 20s at standard playback rate. The sample can then be played back by either in its entirety or gated.
There is a loop switch which triggers the sample to play again after the sample has stopped. The attenuveter CV input controls the pitch of the sample allowing you to speed up, slow down and audio rate modulate your sample.
A unique feature of the module is the ability to save the CV modulation to a recording to get tape like wobbles!
This can be used to create kick like pitch bends when using an envelope for CV and to trigger a recorded sound at the sametime.
This module can also be used a a LOFI lo-pass filter with 3 modulation it inputs!
Switch to FT and then feed a audiorate signal into the CV, gate and/or trig for werid ringmod style effects.
V4 new features;
- High/low pitch range switch
- Attenuveter CV
- Increased output gain to 5v peak to peak using a active opamp circuit.
- Expander headers
- Reduced end of sample “click”
- Lovingly hand soldered and built at Beepboop Electronics Workshop.
- Includes power ribbon, mounting screws and 1 year Warranty
