Befaco’s take on the ultimate eurorack case! Bringing your system to the next level.
Equipped with our latest and most sophisticated power supply (Trolley Bus), the Befaco 7U Case supplies up to 5000mA of power.
The rear panel counts with a vast array of connections to pair your system with external devices. Each connector follows the Intellijel format, making them fully compatible with Intellijel’s 1U modules.

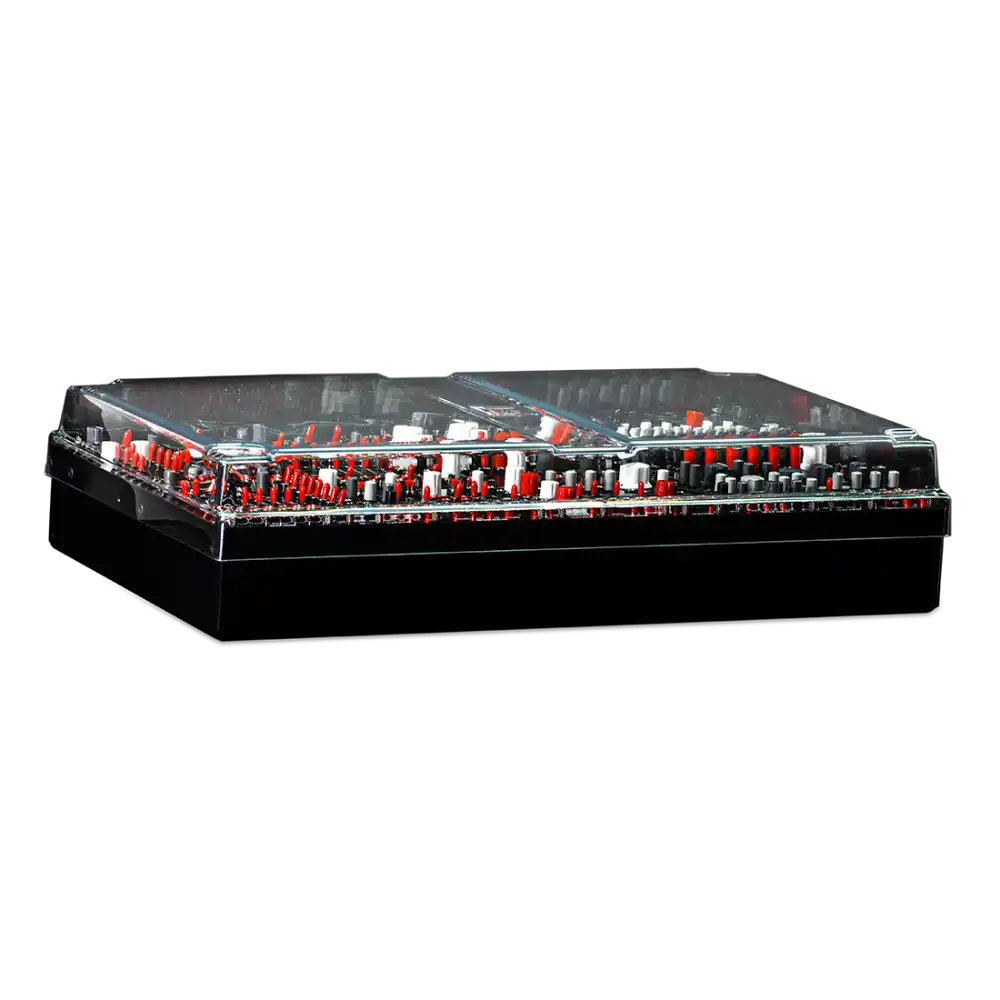

Designed with a high-quality Unibody Black Anodised Aluminum frame, the Befaco 7U Case is a slim and sturdy solution to travel with. The included PET-G clear cover keeps your modules safe even patched!
*Befaco Modules in images not included*
Technical Specifications
- External Dimensions (without cover): 53.5cms x 31cms x 8cms
- External Dimensions (with cover): 53.5cms x 31cms x 14cms
- Internal Row Dimensions: 2x 3U 104HP and 1x 1U 104HP (Intellijel format)
- Power supply Specifications: +12V: 5000mA, -12V: 2500mA, 5V: 4000mA
- Module Depth: 53mm (power supply side), 70mm (rest of the case)
- Module Slots: 36
- Weight (without cover): 2.6kg
- Weight (with cover): 3.4kg
- Rear connectors: 6 x 6.35mm Jack I/O (Balanced or Unbalanced), MIDI DIN In/Out/Thru, USB Device Type B, Apple compatible USB-A charging ports.
- Power brick: 135W 2.5mm Barrel connector center positive (included)
- Cover: PET-G Clear cover (included)
- Finish: Black Anodised Aluminum
- Vesa 100 format threads. Recommended Vesa stand: 12kg
- Kensington Lock
