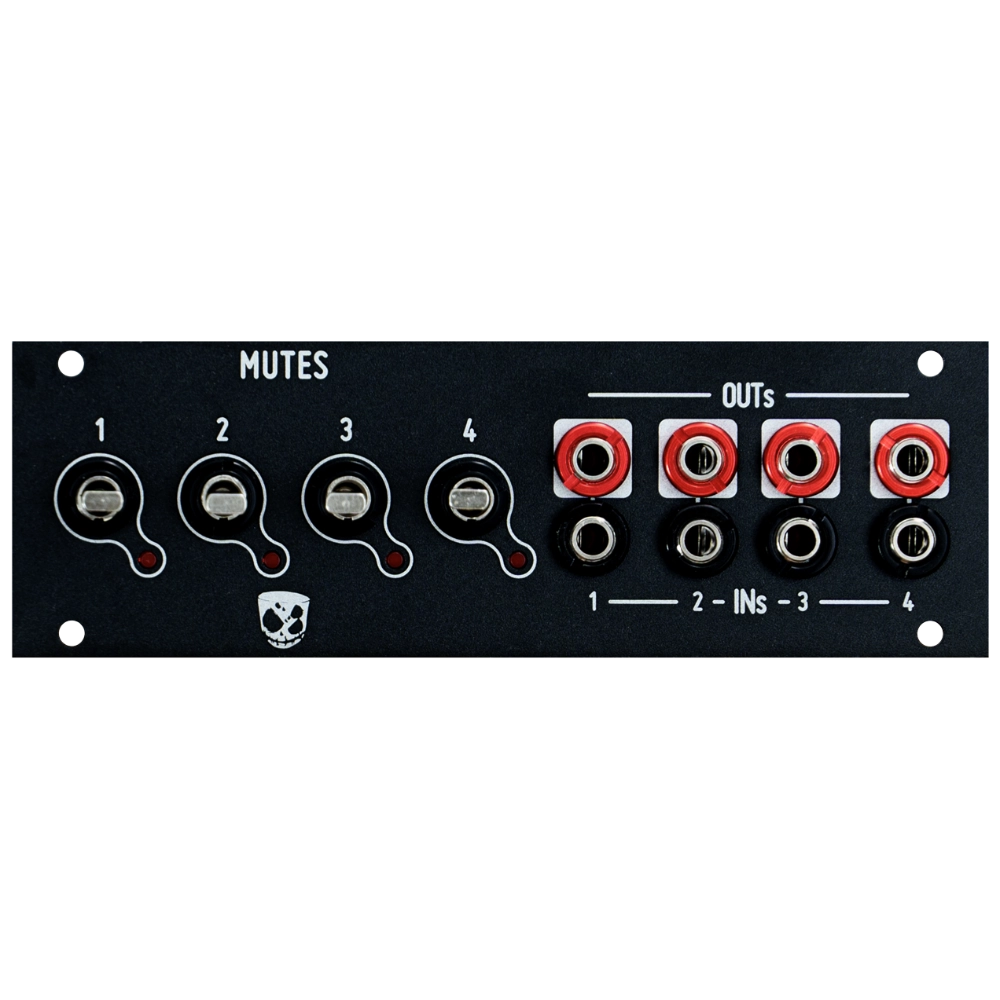

MUTES MK2 UPDATE:
This new unit uses VCA based technology that offers improvements in noise floor / bleed and the signal integrity passing through the channels. It also retains the well loved response and feel of the original click free, Vactrol-style muting and the performable 3-way momentary – off – on switches.
Mutes Mk2 also now comes with a 1U alternative panel to sideways mount the module in compatible, Intellijel format 1U rows and cases. The 1U panel is included in the box/kit with the normal 3U version along with the Befaco Bananut Wrench to change the panel over.
. . .
Mutes goes above and beyond basic muting by allowing you to split groups of signals to multiple destinations, making it great for FX dub performing and varied signal routing.
You also get a three position switch giving you: MOMENTARY signal pass through (it springs back to the centre
when released); OFF (or muted) in the centre; and ON to the right. We’ve also added vactrols to the circuit giving the switching a pleasing decay for both audio and modulation as well a totally click free muting. This module can add mutes to anything, your mixer, module inputs or outputs, modulation signals, sequencers, gate sources and more.
Mutes was developed by Befaco on behalf of DivKid.
Features
- LEDs to visualise signals
- 3 way momentary – off – on switching
- Buffered and cascading normalising of inputs
- Vactrol based muting
- Alternative 1U panel to mount module sideways
- Includes: Knurlies, 1U panel, Bananuts wrench, Glow Worm cables
Specifications
- Width: 4hp
- Depth: 32mm
- Power: +12V 20mA / -12V 0mA
