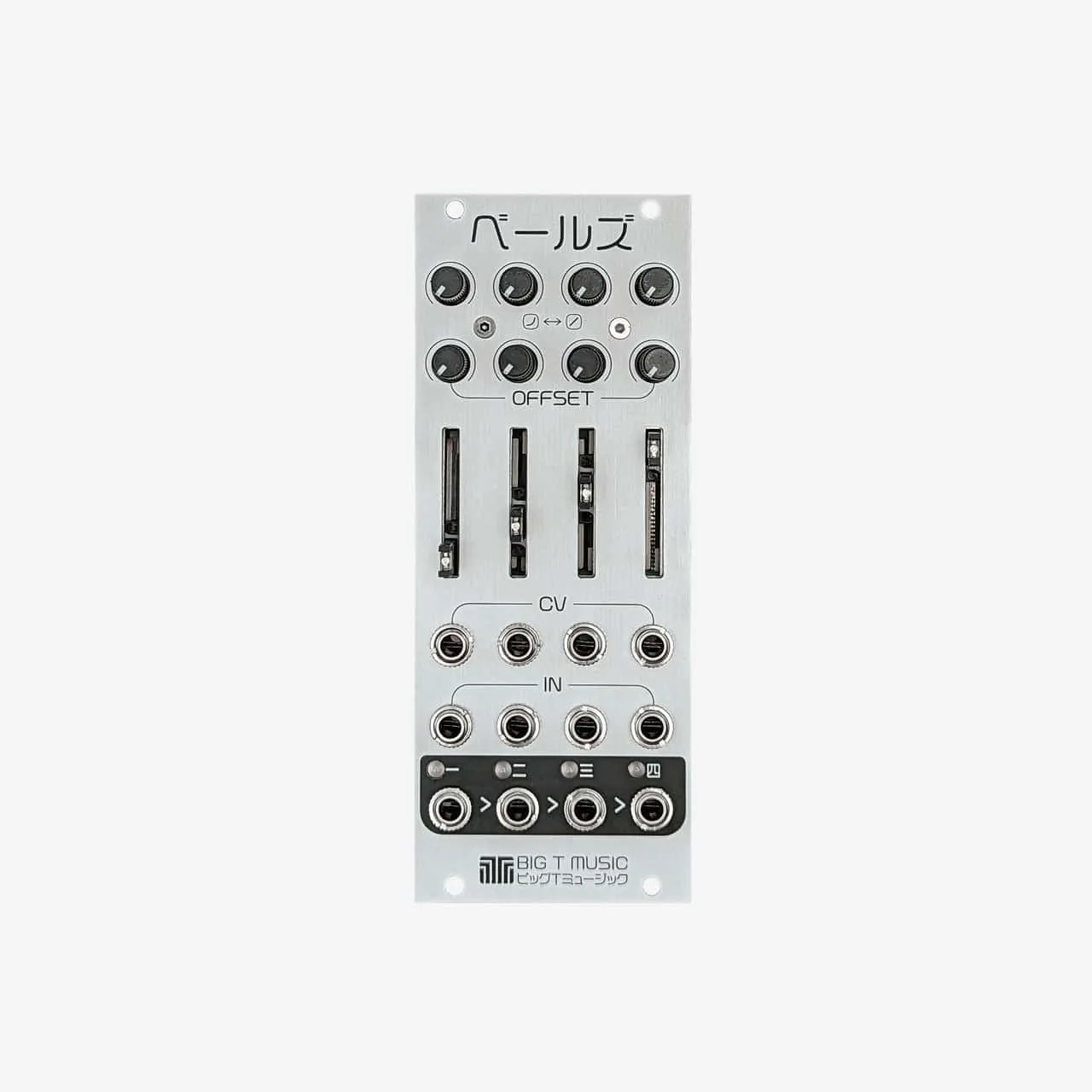

Big T Music Beruzu Eurorack Quad VCA Module (Silver) (Mutable Instruments Veils Clone)

219.00 inc. VAT

180.99 ex. VAT

In stock

Bear in mind prices on the site are initially shown including Spanish VAT (21%).

After entering your shipping address at checkout prices on the site will update to show the correct VAT amount due to us based on your location. If purchasing from outside the EU, VAT, handling fees, and import duties will potentially be due on delivery.





Product Info


Beruzu is a 1:1 Replicant of Veils V2 originally released by Mutable Instruments in 2020, providing four VCAs with an adjustable response curve and offset control in a 10hp package.

All components have been carefully sourced with no expense spared including sliders without detents identical to the original specification.

Beruzu outputs are daisy-chained, allowing adjacent groups of 2, 3, or all 4 channels to be mixed together.

Features

  • More compact footprint (10-HP)
  • Sliders instead of knobs for the main gain/CV control. These control the amount of gain (amplitude) modulation from the CV input, or direct gain control when no cable is patched in the CV input – as you would find on a standard mixer channel fader.
  • Gain indicator LED on all four faders.
  • Positive offset control (0 to 8V) for direct use of bipolar modulation sources.
  • All inputs DC-coupled.
  • All inputs handle audio-rate signals.
  • Input impedance: 100k for all inputs.
  • Gain scale: a +5V CV translates to a gain of 1 (0dB), both in linear and in exponential mode.
  • Large gains above +20dB (sufficient for amplifying line-level signals) achievable in exponential mode.
  • Offset control adding an adjustable voltage from 0 to 8V to the gain CV.

Specifications

  • Width: 10hp
  • Depth: 25mm
  • Power: +50mA / -50mA

Product manual here.
