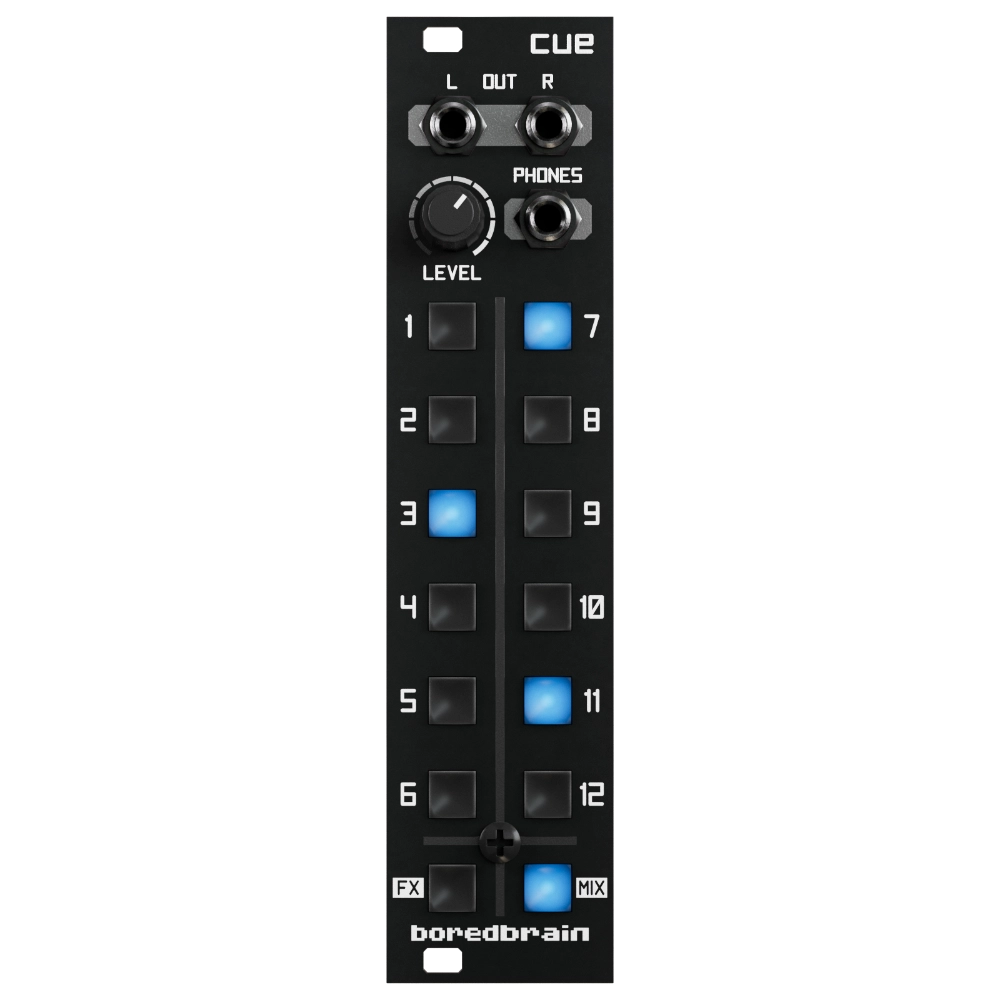

Xcelon Cue is a dedicated channel monitoring expander for the Xcelon eurorack mixer. Designed primarily for live performance scenarios, the module allows for selectable pre-fader listening of any channel, the two FX returns and/or the main mix in a fully expanded Xcelon mix system.
The slim 6HP module provides an additional cue mix bus to the Xcelon mix system intended for individual channel monitoring while performing. Channels can be selected individually and simultaneously to monitor in headphones or to patch elsewhere, without affecting the main mix busses.
Features
- Monitor up to fourteen audio sources from Xcelon mixer and channel expanders
- Individual cue buttons for channels 1 thru 12, FX returns and main mix
- Dedicated headphone output with independent level control
- Additional Eurorack-level stereo output for alternate cue bus routing
- Also connects to IO module to cue other Eurorack audio signals
Specifications
- Width: 6hp
- Depth: 38mm
- Power: +12V 70mA / -12V 40mA
