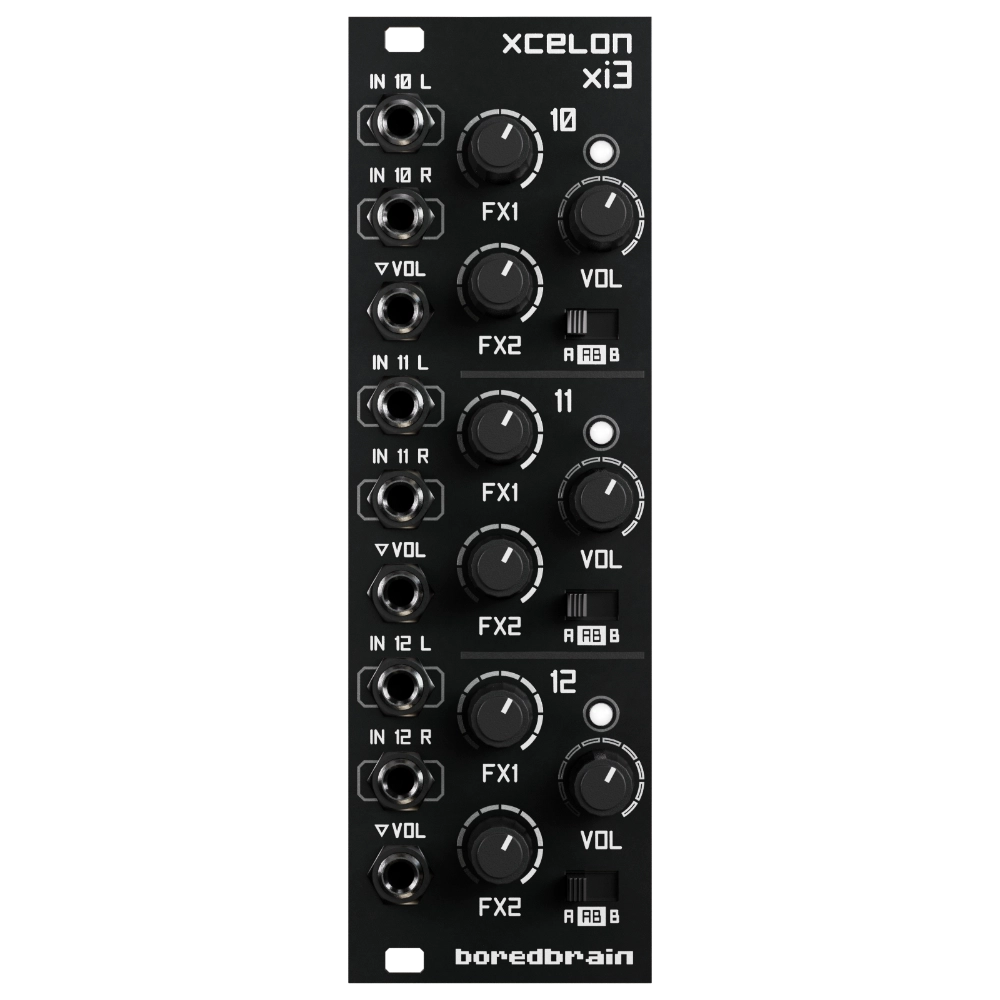

Xcelon Xi3 is a compact three-channel stereo audio input expander for the Xcelon eurorack mixer. The module includes core mixing features and connections meant to expand the number of mixer inputs without sacrificing valuable space.
The 8HP module provides essential channel parameters for each channel such as volume control, both stereo effects sends, and mix bus selection. Xi3 channels share the same mix bus and FX send architecture as the main mixer, integrating seamlessly within the Xcelon system. Like the Xcelon and XP3 channel expander, Xi3 also includes both pre and post-fader direct output headers for advanced routing and multi-channel recording.
Features
- Adds three stereo/dual-mono channels to Xcelon mixer in just 8 HP
- Two stereo FX sends and two stereo output mix busses selectable per-channel
- VCA-based volume controls with CV input and responsive LED indicators
- Configurable jumpers for dual-mono operation allowing up to six mono sources
- Pre/post-fader direct output ports for all three stereo channels
Specifications
- Width: 8hp
- Depth: 38mm
- Power: +12V 55mA / -12V 50mA
