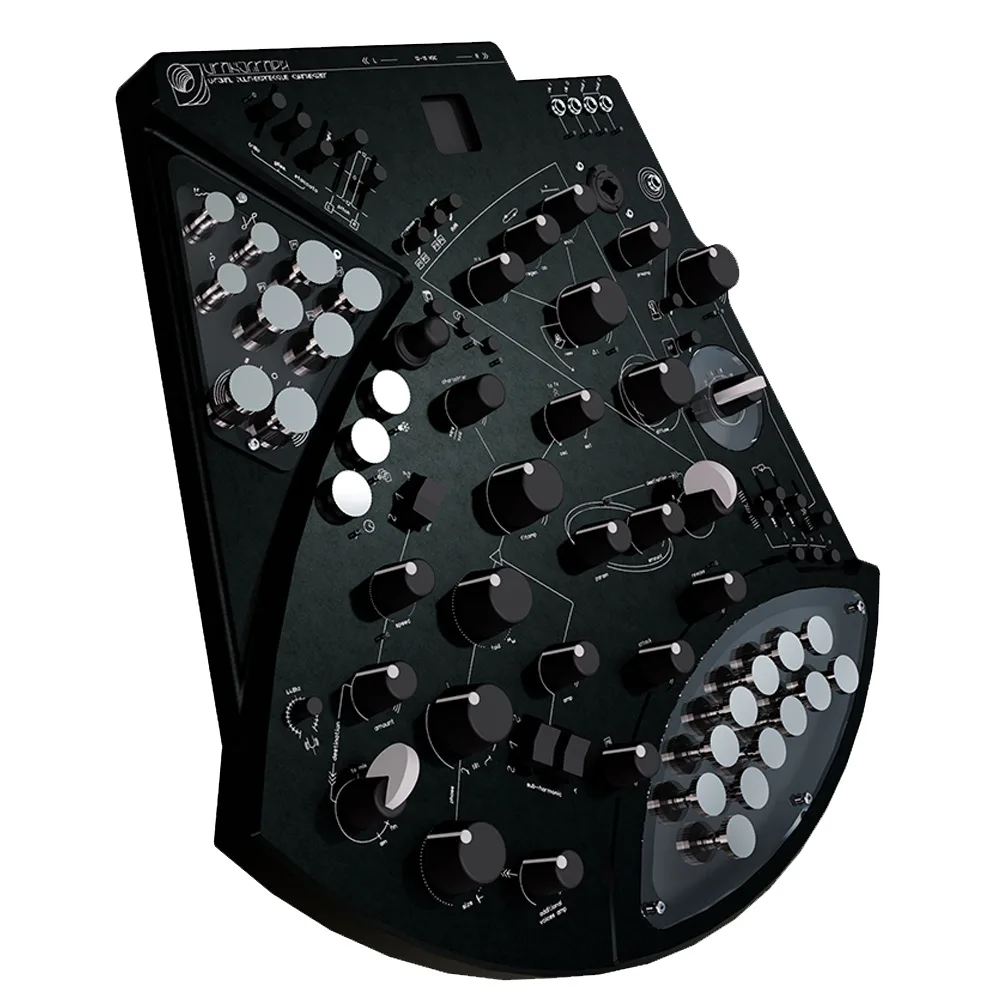

Uranograph is an electronic musical instrument that merges the expressive depth of classical instruments with the limitless possibilities of synthesis. A complete, self-contained world designed for live experimental performance, where every gesture, touch, and modulation is sculpted in real time.
Its capacitive tactile keys and instant note articulation encourage musicians to develop a deep connection with its behavior, refine their technique, and master its nuances.
With its ability to effortlessly reproduce microtonal notes, Uranograph is well-suited for exploring diverse musical expressions and cultural scales.
Its unique digital engine blends additive phase distortion with west-coast shaping, creating textures that feel raw, ancient, alien — like melodies echoing across a desert, or resonating in a distorted future city. Uranograph integrates an extensive 5-voice synthesis core, FX processing (both for internal and external sources), and a 2-reel looper into a seamless creative tool.
Features
- Dual-CPU digital instrument with 24-bit codec
- Stainless steel capacitive touch plates, offering long-lasting life
- Touch-bend surfaces crafted from special opaline black plexiglass
- VESA 75×75 M6 screws on the back
- 50 Keyboard layouts
- 3x Oscillators synthesis core
- 2x Additional aliasing oscillators
- 1x Complex assignable LFO
- External input with XLR/6,3mm combo input with preamp and phantom power
- Stereo morphing delay
- Single knob diffuse control
- Two-reel performative tape looper
- Performative save and recall with a capacity of 96 presets
- Metronome for live performance, routed only to the headphones
- High-quality headphones output via a 3.5mm jack, featuring a dedicated level control
- Dual balanced line-level TRS outputs
- 1x combo 3,5mm analog clock IN/MIDI clock in
- 1x assignable CV in
- 1x 3,5mm analog clock OUT
Specifications
- Dimensions: 350 × 360 mm
- Weight: 2.7kg
- Power: 15V center-positive DC adapter.
- Precision CNC-machined from a solid aluminum block, anodized and laser-engraved for durability
