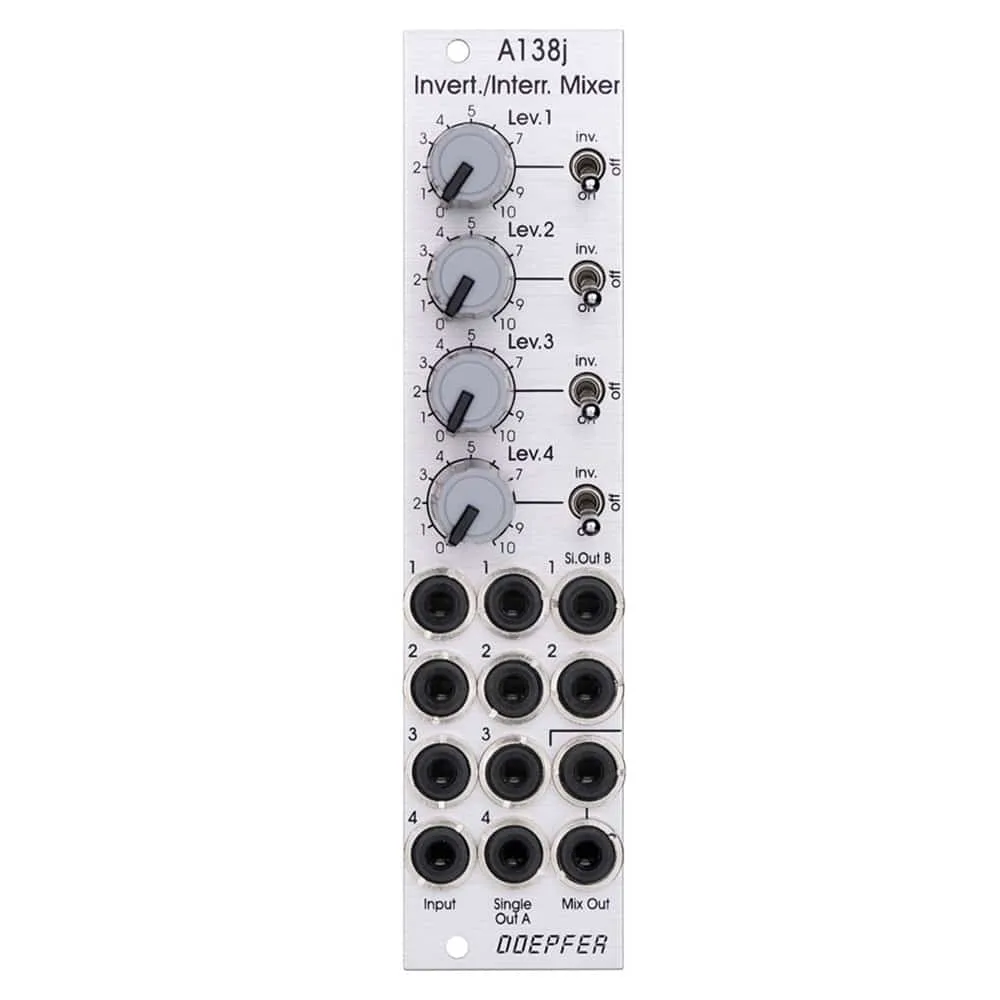

A-138J is a four channel mixer with an additional polarity/mute switch for each input. In the upper position of the corresponding switch the inverted signal is used. In the center position the input in question is turned off (mute) and in the lower position the “normal” (i.e. non-inverted) signal is used. The inverting of signals is used especially for control voltage signals (e.g. LFO, ADSR). But even for corellated audio signals this feature is useful. For example for feedback applications or the mixing of original and processed signals (e.g. original and filtered signal to obtain new filter types).
For channel 1 a DC Offset function can be activated: in this case control Lev.1 generates an adjustable DC voltage (positive or negative depending upon the position of the polarity switch) provided that no plug is inserted into socket Input 1.
On top of that the module is equipped with two types of single outputs and a dual mix output. All inputs and outputs are DC coupled. Consequently the VCAs can be used to mix both audio and control voltages. Each input is – apart from the polarity/mute switch – equipped with a linear attenuator. The amplification range is 0….1. The single outputs offer the attenuated and possibly inverted/muted signal of the channel in question. Two version of single outputs are available:
Single Output A: If a plug is inserted into the single output “A” socket the channel in question is removed from the sum signal.
Single Output B: If a plug is inserted into the single output “B” socket the channel in question is not removed from the sum signal. This type of single outputs is available only for the channels 1 and 2.
Based on this flexible structure each channel can be used also individually as attenuator or inverter (i.e. without mixer function).
The output is twice available (two sockets, hard-wired like a multiple).
Specifications
Width: 6hp
Depth: 40mm
Power: +20mA, -20mA
