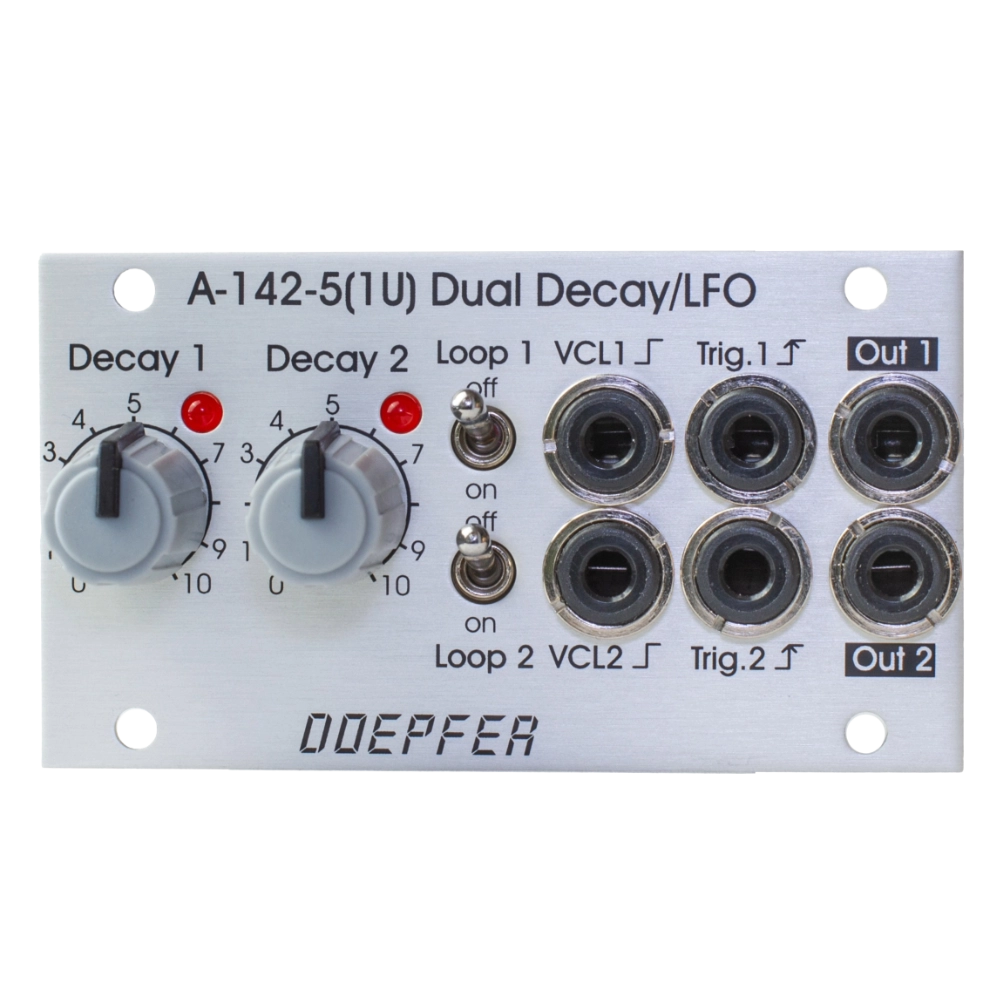

Doepfer A-142-5 Eurorack 1U Dual Decay LFO Module

The A-142-5 (1U) 1U module contains two envelope generators that can also function as A/D LFOs.

Features

• Two envelope generators with A/D and LFO capability
• Manual Decay control per unit (2 ms to 2 seconds)
• 2 Trigger inputs, normalled to each other
• Loop toggle: switches between envelope (off) and LFO (on) modes
• Two Gate and CV outputs
• Voltage Control Loop (VCL) input activates the loop, turning the unit into an LFO (if loop toggle is off)
• Envelope and LFO interact if a trigger signal is applied during LFO mode
• Attack time is adjustable via internal trim pots for each envelope generator
• Versatile loop function and VCL input for complex modulations

Power: +12V 10mA / -12V 10mA
