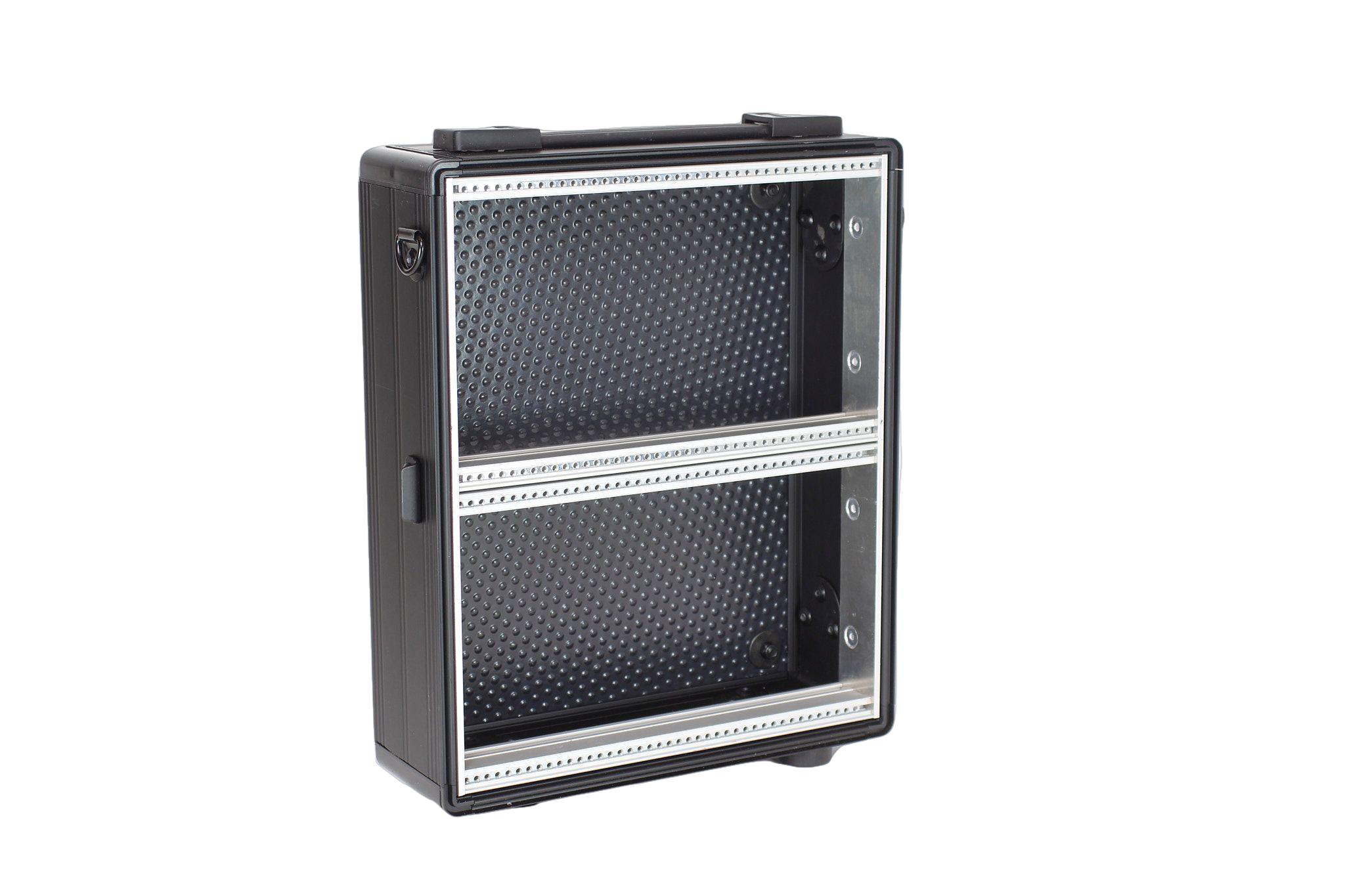

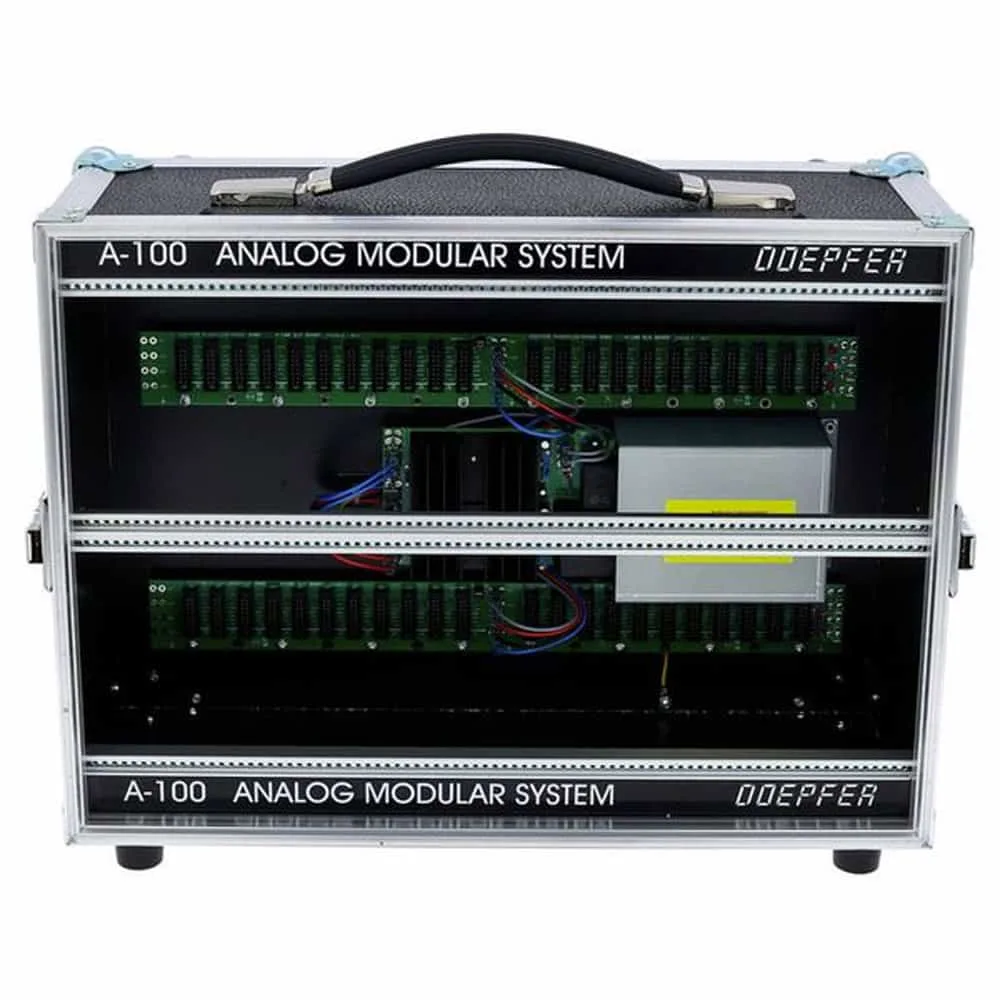

For mobile use also portable suitcase versions of the A-100 cases are available. Inside the removable cover there is sufficient space to carry the system completely patched or to move patch chords and the power cable (valid only for original A-100 patch cables, for cables from other manufacturers with larger jack plugs there might be not sufficient space, actually about 50 mm space are available).
The A-100 suitcases can be used vertical or horizontal, provided that a suitable support is used (not available from us, the mains inlet and the power switch have to remain accessible). The suitcases are equipped with 4 rubber feet on the bottom and rear side and a handle on the top.
The A-100 suitcases are made of black wood with aluminium extrusions with the rail construction fixed to the other parts of the suitcase.
Measures:
outside: approx. 460 x 330 x 175 mm, without cover and rubber feet
outside: approx. 460 x 340 x 220 mm, with cover and rubber feet
inside: 2 x 84 HP x 3U, usable depth for A-100 modules: approx. 70 mm in the power supply area (bottom right), resp. approx. 100 mm in the remaining area (measured from inner side of the front panel until end of the pc board of the module)
Quantity of bus boards: 2
Weight (without modules): about 7 kg
Maximum Output Current:
with built-in A-100PSU3: +12V/2000 mA, -12V/1200mA, +5V/4000mA
