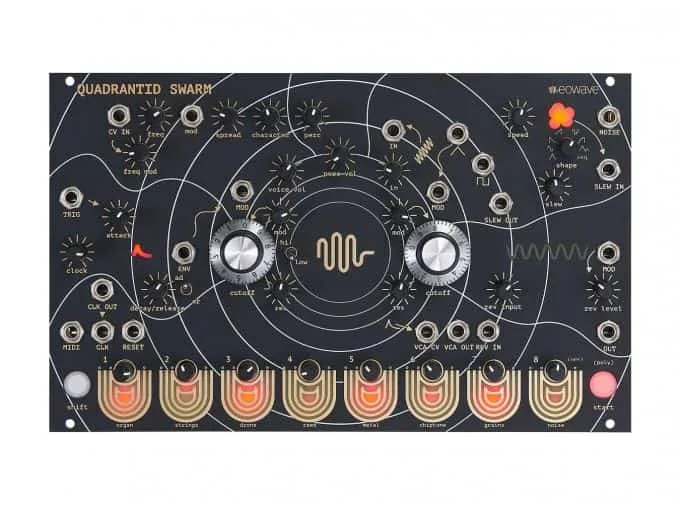

The Quandratid Swarm module from Eowave is a semi-modular digital hybrid Eurorack module with a vast array of sounds, ready to be integrate with the rest of your Eurorack system. Combining a triangle oscillator with spread folding with a secondary percussive voice, it is capable of an incredible amount of textures and timbres. Further shape those sounds with the two 12dB/oct filters, configured in series. Filter 1 is selectable between low pass and high pass, while filter 2 is a low pass filter. In addition to the digital elements, a physical spring reverb provides a distinctive element of space to your sounds.
The touchplate interface is configurable in three modes: monophonic touchplate, polyphonic touch plate, and step sequencer. The eight-step sequencer has both an internal clock and can be clocked from an external clock source. In addition, the Quadrantid Swarm features a MIDI input to sequence the synthesizer from MIDI sources. An eight-waveform LFO with slew limiter adds motion to your sounds, while the two-stage envelope modulates the VCA and VCF concurrently.
Due to the semi-modular nature of this synthesizer, it requires no patch cables to make sounds. However, it contains a multitude of CV inputs to add another dimension of modulation and control. Whether you use it on its own or as part of a more extensive setup, the Quadrantic Swarm is a source of a myriad of sounds.
QUADRANTID SWARM FEATURES
-Semi-modular digital hybrid synthesizer voice
-Touchplates can be used monophonically, polyphonically, or as an eight-step sequencer
-Triangle wave oscillator with spread wavefolding
-Percussive voice with a ton of character
-Eight-waveform LFO with slew limiter
-Two 12dB/oct filters in series
-Two-stage envelope
-MIDI input
-Physical spring reverb
-Tons of CV inputs and outputs
