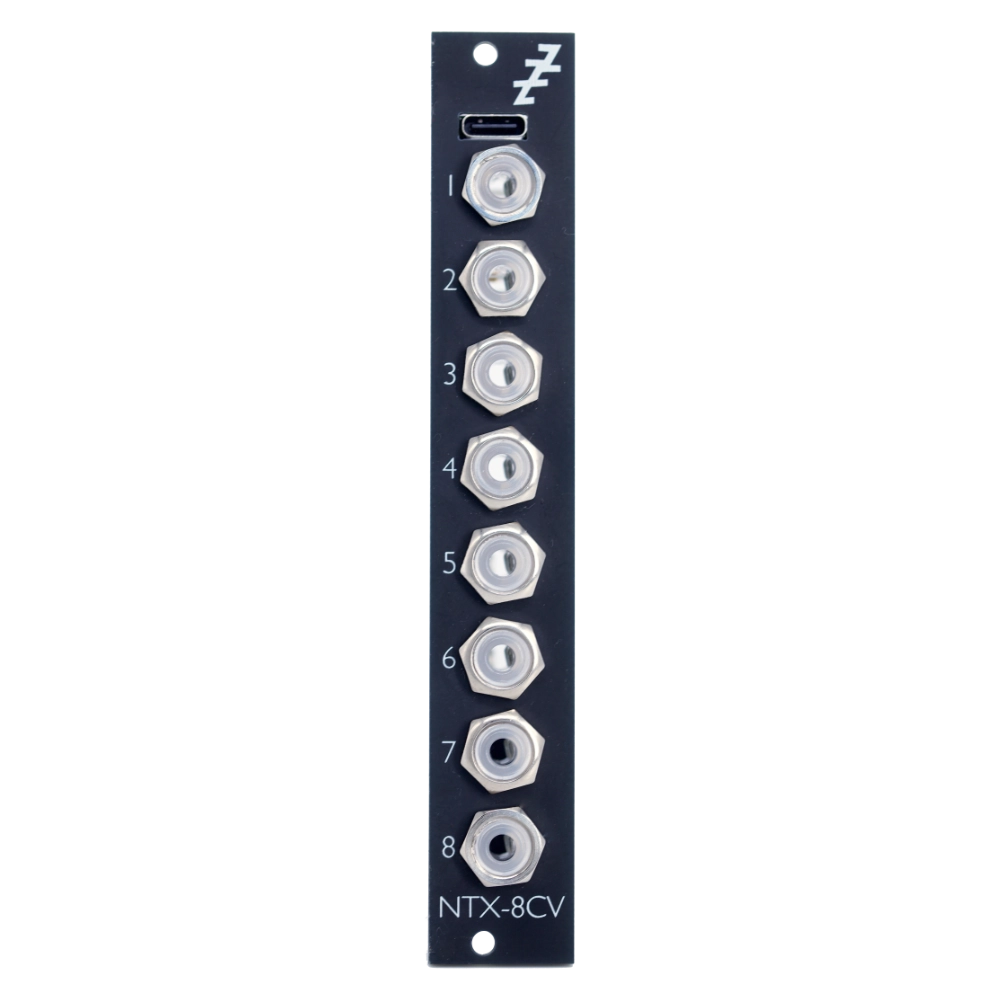

The NTX-8CV is a 4HP Eurorack module with three distinct purposes.
USB MIDI to CV converter
The NTX-8CV offers MIDI/CV conversion, using a design based on our best-in-class FH-2, but in a more compact form factor. Its dual role USB port allows the NTX-8CV to operate both as a USB MIDI Class compliant device (e.g. connected to a computer or tablet) and as a USB host (so you can plug a USB MIDI controller straight in).
USB audio/CV interface
The NTX-8CV operates as a USB Audio Class compliant device, offering 8 channels of DC coupled audio or CV outputs (and so is compatible with Silent Way, CV Tools, Bitwig Studio etc.).
Disting NT output expander
The NTX-8CV connects directly to a disting NT, adding 8 CV outputs. Additional NTX-8CV units can be daisy-chained for up to 64 extra CV outputs (on top of the NT’s own 8). The output ports have exactly the same technical specifications as those on the disting NT itself.
Power: +12V 74mA / -12V 17mA (plus any current drawn by an attached USB device)
