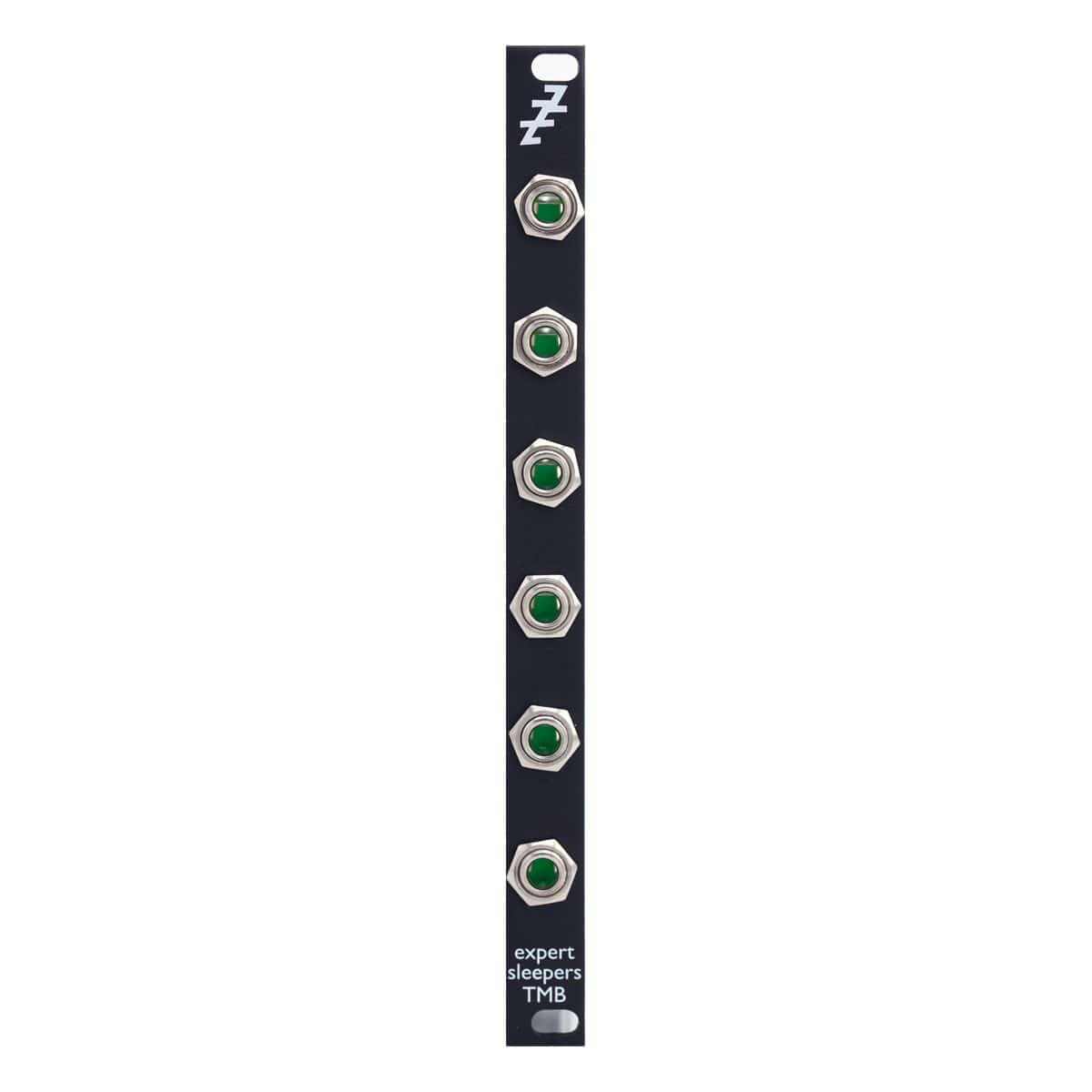

Expert Sleepers Tiny Midi Breakout Eurorack Module

The Tiny MIDI breakout provides 3.5mm TRS MIDI connectors for compatible modules with breakout headers – the disting mk4, disting EX, ES-9, General CV, and FH-2.

It can also be used with modules from other manufacturers e.g. the Michigan Synth Works F8R.

The six sockets can be shared amongst modules as needed. The module is entirely passive, and can be wired up for Type A or Type B 3.5mm MIDI.

The Tiny MIDI breakout’s specifications are as follows:
Panel width: 2HP
Module depth: 30mm (including cables)
Current draw: none

In The Box
The module
Two M3x6mm screws
One four-way ribbon cable

The cable colours may vary from those shown below. The cable may be split into two two-way cables if desired. Extra cables are readily available from e.g. Adafruit, Amazon, Mouser etc. Search for “DuPont cables” or “jumper wires”.

Panel width: 2HP
Module depth: 30mm (including cables)
Current draw: none
