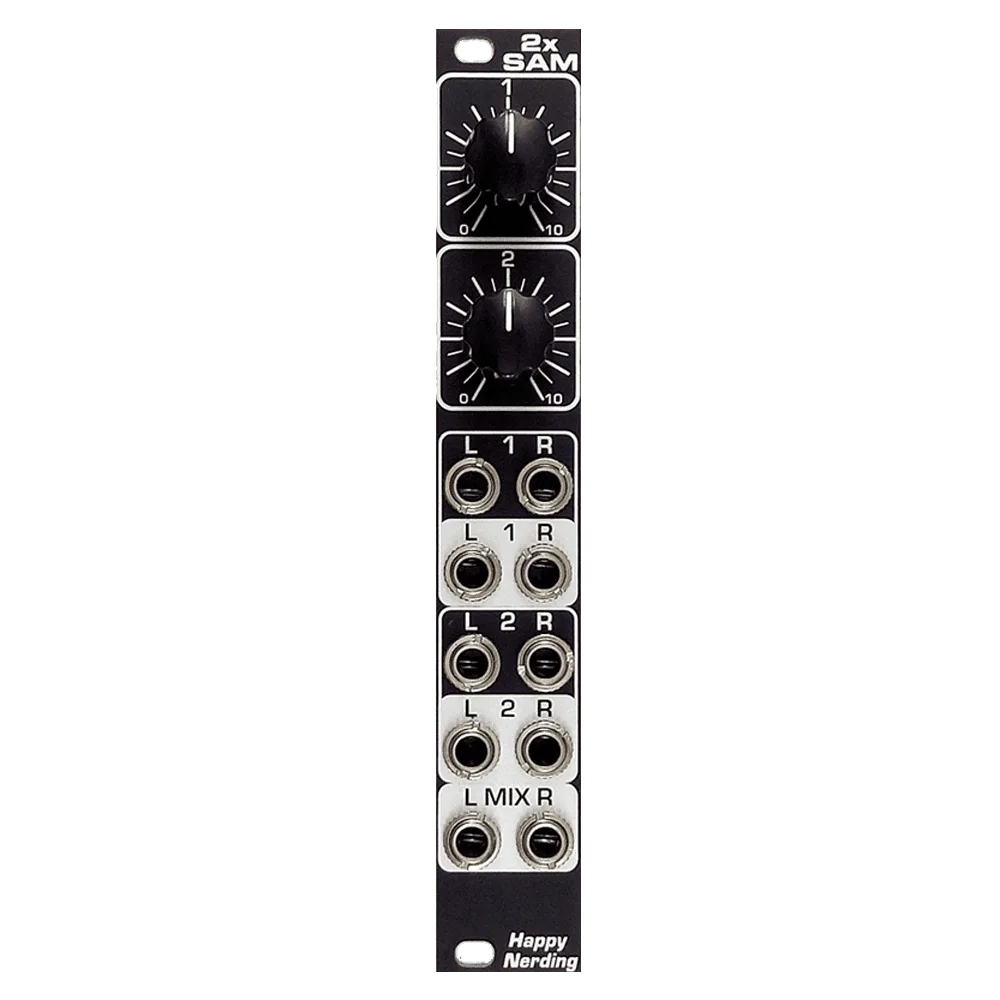

Happy Nerding 2xSAM Eurorack Dual Stereo Mixer Module (Black)

89.00 inc. VAT

73.55 ex. VAT

Bear in mind prices on the site are initially shown including Spanish VAT (21%).

After entering your shipping address at checkout prices on the site will update to show the correct VAT amount due to us based on your location. If purchasing from outside the EU, VAT, handling fees, and import duties will potentially be due on delivery.





Product Info


Features

  • Separate stereo outputs for attenuator duties
  • Stereo mixer output
  • Optional 5x gain for each input to raise line levels to modular amplitude (jumpers on the backside)
  • Clean (low noise and distortion) performance
  • Right inputs are normalled to Left inputs for easy mono operation
  • AC coupled inputs
  • Several 2xSAMs can be chained together or with other HN stereo modules via sockets on the back side.
  • 2xSAM’s total mix stereo output can be internally sent to the Isolator, PanMix Jr, 3xStereo Mixer, or can be received from OUT, PanMix, PanMix Jr, 3xStereo Mixer, or another 2xSAM.
  • If jumpers are not installed (placed on one pin only by default) the max gain is 1x. When the jumper is properly placed on both pins – the gain is 5x. There are four inputs thus four jumpers. Each jumper is relevant to its channel.

Specifications
Width: 4hp
Depth: 35mm
Power: 27 mA +12V, 27 mA –12V
Manufacturer product page here.
