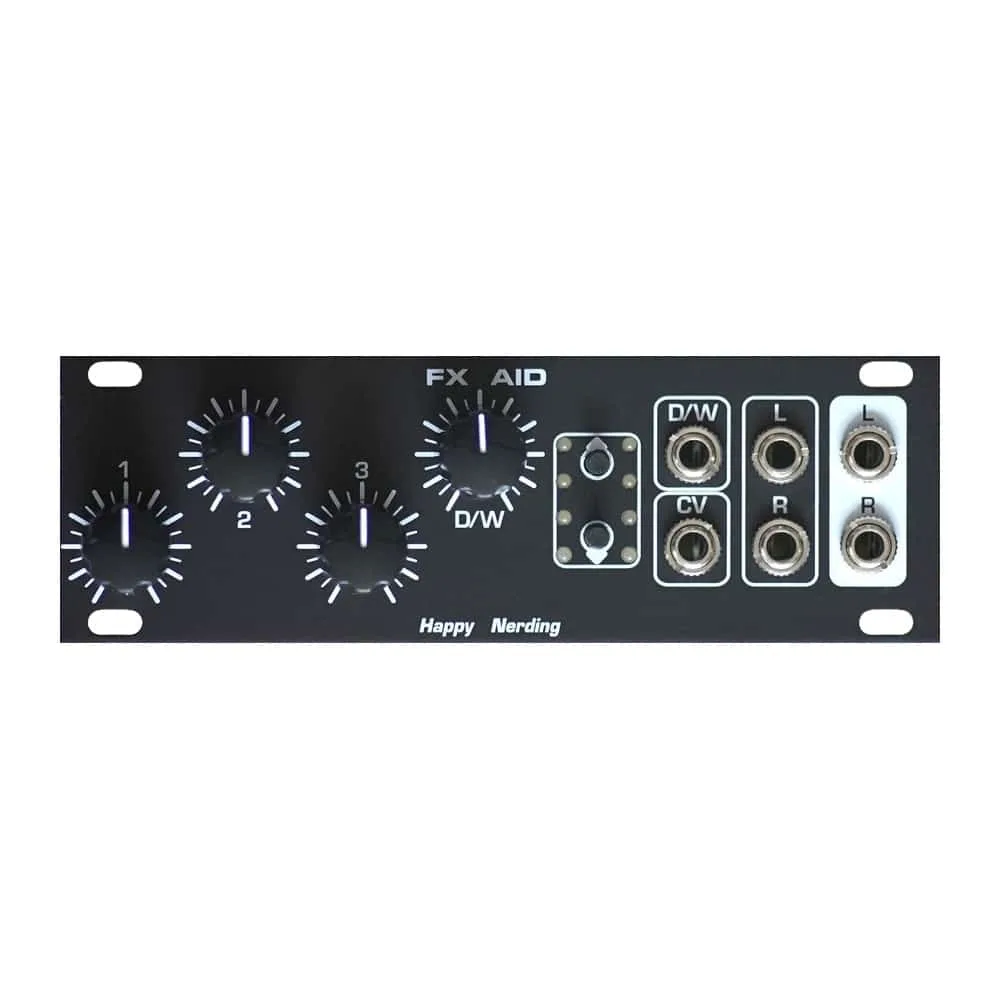

32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets – stores selected program and all three controls. Spin FV-1 based. Intellijel format 1U.
The last used effect, assigns and presets are always remembered. 32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order. Reflashing procedure is quite easy: playing 40 sec long “wav” file of line level amplitude to CV input. Reflashing mode: hold both buttons for 10 sec. By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 2000 Hz or brought up to 48 kHz.
Specifications
Width: 24hp
Depth: 40mm
Power: +80mA, -30mA
Manufacturer product page here.
Product manual here.
