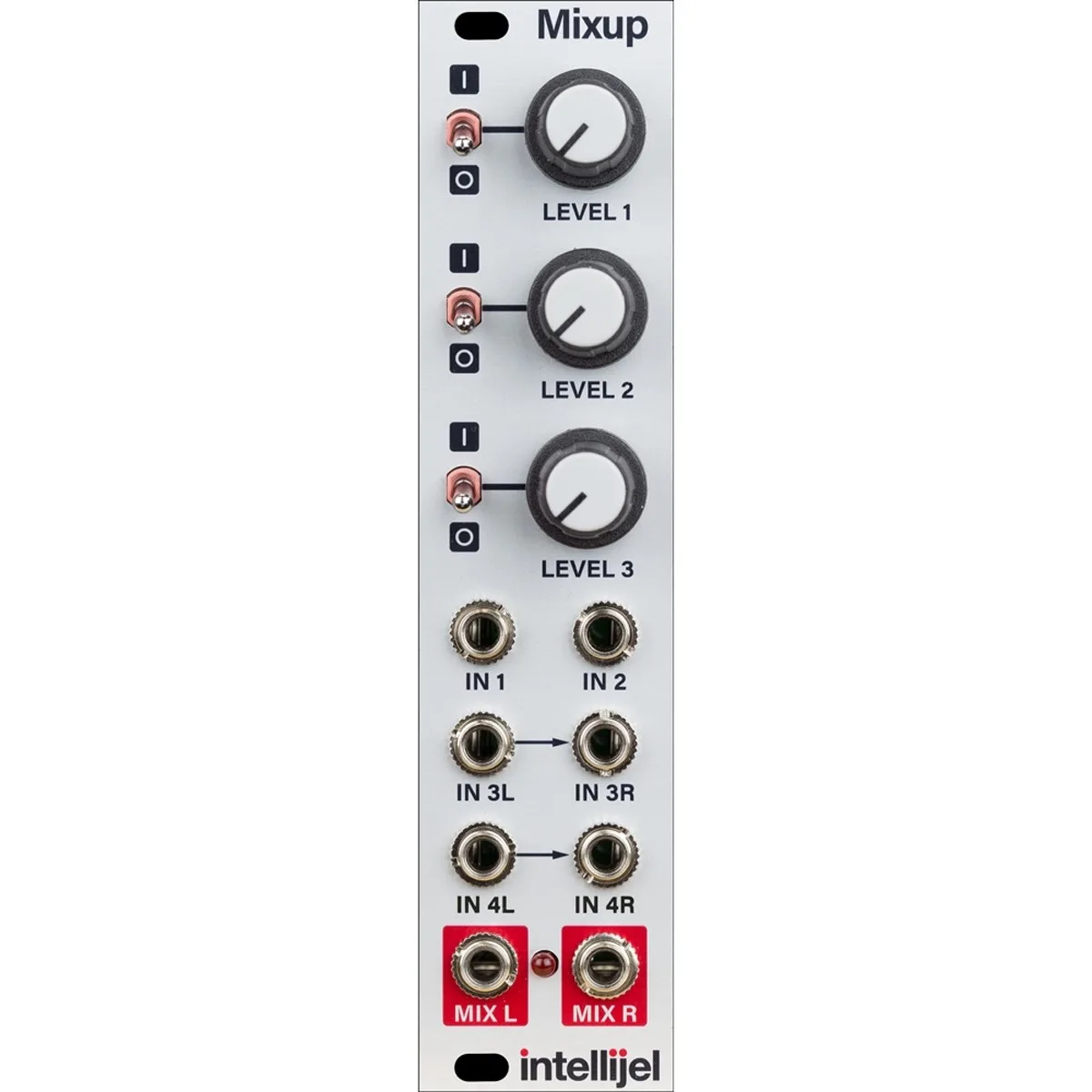

Mixup is a versatile, expandable audio mixer for eurorack format. It has eight inputs (6 on the front panel) and two outputs. Inputs 1 and 2 are single-channel mono inputs, each with its own mute switch and level control; Input 3 is a dual-channel stereo input with a shared mute and level control; and input 4 is an auxiliary unity-gain, non-mutable stereo input.
Features
- Mixes up to eight channels to a stereo output.
- Mute switches and level knobs for channels 1 to 3.
- Chain-able with other Mixup modules.
Specifications
Width: 6 hp
Depth: 29 mm
Power: 15mA @ +12V, 16mA @ -12V
