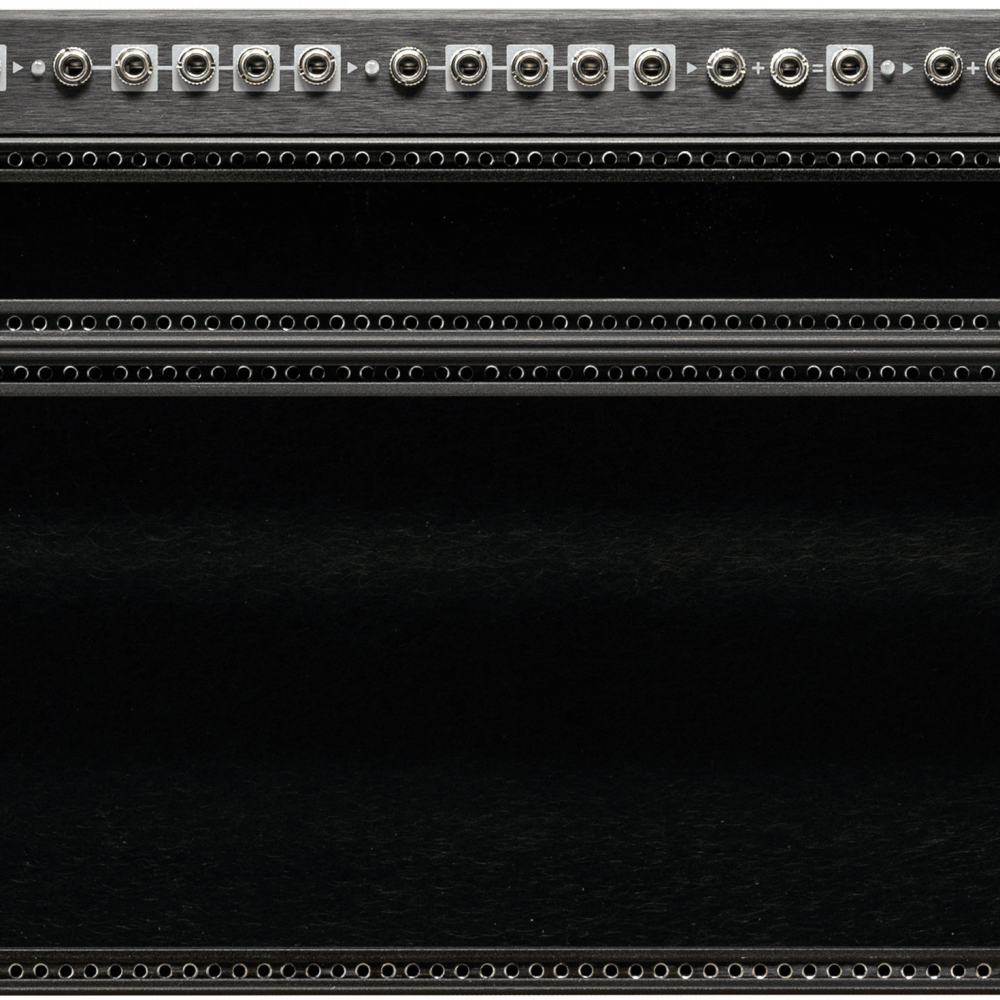

The new 104hp Palette case from Intellijel! It’s 4U with built in utilities in a slim and portable form factor. A decksaver cover and padded gig bag are on the way also.
Features
- One 104 hp row of Eurorack (3U) module space.
- One 104 hp row of Intellijel (1U) module space.
- Built in triple buffered multiple with bi-polar led level indicators.
- Built in dual precision summers with bi-polar led level indicators.
- Expansion jacks for MIDI and balanced audio i/o.
- Threaded M3 strips for mounting modules.
- High spec 60 Watt power supply capable of powering up to 24 modules with +12 V output at 1500 mA, -12 V output at 1500 mA and +5 V output at 500 mA.
- Utilities Row
- Triple 1:4 buffered multiple.
- Dual 2:1 precision summer.
- Four 1/4? balanced audio (trs) jacks that can be connected to the Stereo Line Out 1U, Stereo Line In 1U, Pedal I/O 1U or Mixup.
- ?” (3.5mm) MIDI Input that can be connected to MIDI 1U.
- ?” (3.5mm) MIDI Output that can be connected to MIDI 1U.
- USB-B port that connects to the MIDI 1U and other future modules.
- Rocker switch and 2.1mm x 5.5mm barrel plug for power entry.
Specifications
Dimensions: 537.7 x 204.4 x 51.3 (mm) (58.5 mm high, when including rubber feet/jacks)
Max Module Depth: 45.5 mm for middle 102HP, 37.42 mm at each 1HP edge
Power: 1.5A @ 12V, 1.5A @ -12V, 500mA @ +5V, 60W Power Brick, 24 Headers
