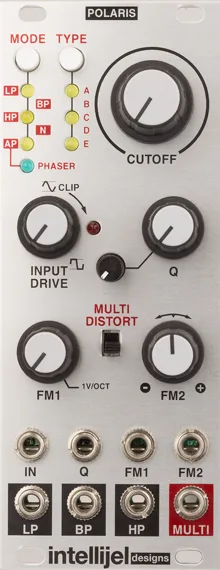

The Polaris is a 4-stage cascaded OTA filter designed by David Dixon. It builds on the lineage of the Dr. Octature and Atlantis filters, but with a totally revised core and resonance control. Along with dedicated LP, HP and BP outputs it features a configurable MULTI output capable of an unprecedented 27 different filter modes.
Features
- Dedicated LP, BP and HP outputs.
- MULTI output with 27 selectable filter types: 4 x LP, 5x BP, 4 x HP, 5 x Notch, 4x AP and 4 x Phaser (AP mode with inverted dry blend).
- Specially designed resonance compensation circuit so that bass frequencies are retained when Q is increased.
- Input drive control with soft clipping distortion.
- MULTI output asymmetric distortion.
Specifications
Width: 10 hp
Depth: 40 mm
Power: 56mA @ -12V 60mA @ 12V
