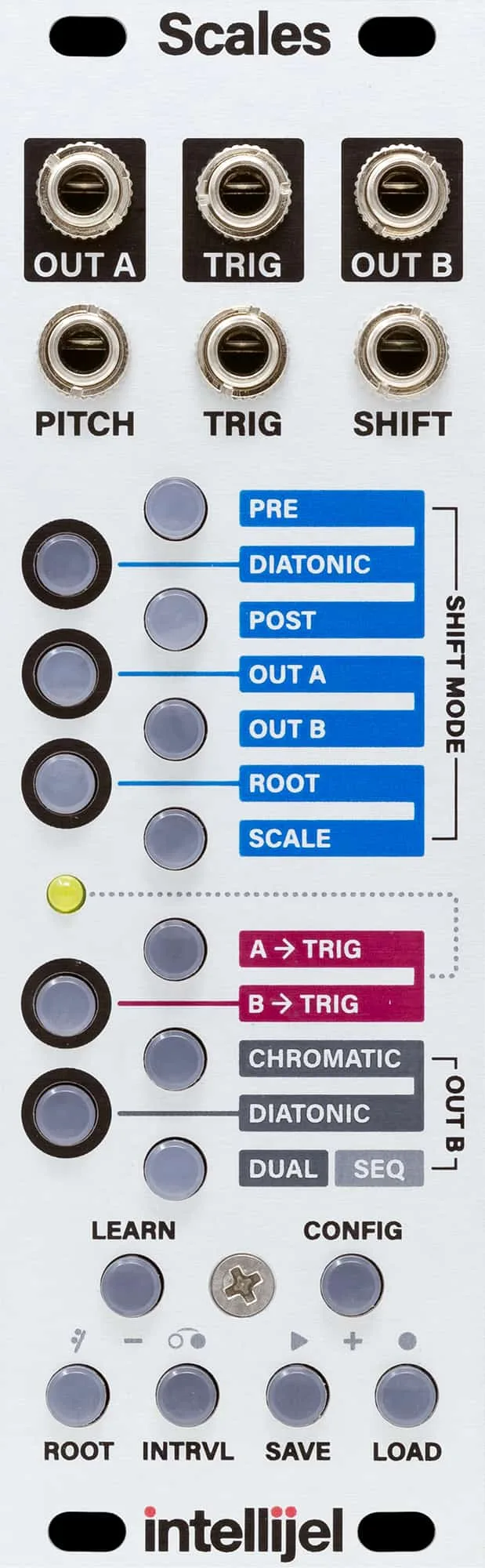

Scales is an 8hp dual-channel note quantizer and step sequencer. Fundamentally, it takes an input voltage, quantizes it to notes in a user-defined scale, and sends that quantized voltage to an output, where you can use it as a melodic pitch source for oscillators or any other module that expects to see discreet note values at its input.
Features
- SHIFT/PITCH inputs and A/B outputs operate in a -10v to +10v range with 1v/oct scaling
- 1-octave keyboard for selecting scale notes in real time and LED buttons provide visual feedback of quantizing
- Save and recall up to 35 different scales and sequences, arranged in 5 banks (black keys) of 7 scales each (white keys)
- 35 factory scale patterns included
- High resolution precision DAC for accurate pitch generation
- Adjustable trigger delay
- LEARN function allows you to monitor external sequences or inputs and learn notes from them
- Tuning mode so you can conveniently tune connected VCOs
- ROOT function allows you to set root with or without shifting your current scale to match
Specifications
Width: 8 hp
Depth: 39 mm
Power: 35mA @ +12V 5mA @ -12V
