A space-friendly, feature-rich, highly flexible solution for all your stereo line level input and output needs. Includes a dedicated headphone jack/volume and a clever Cue bus for monitoring signals outside of the main output or to add a 2nd source to the main outputs.

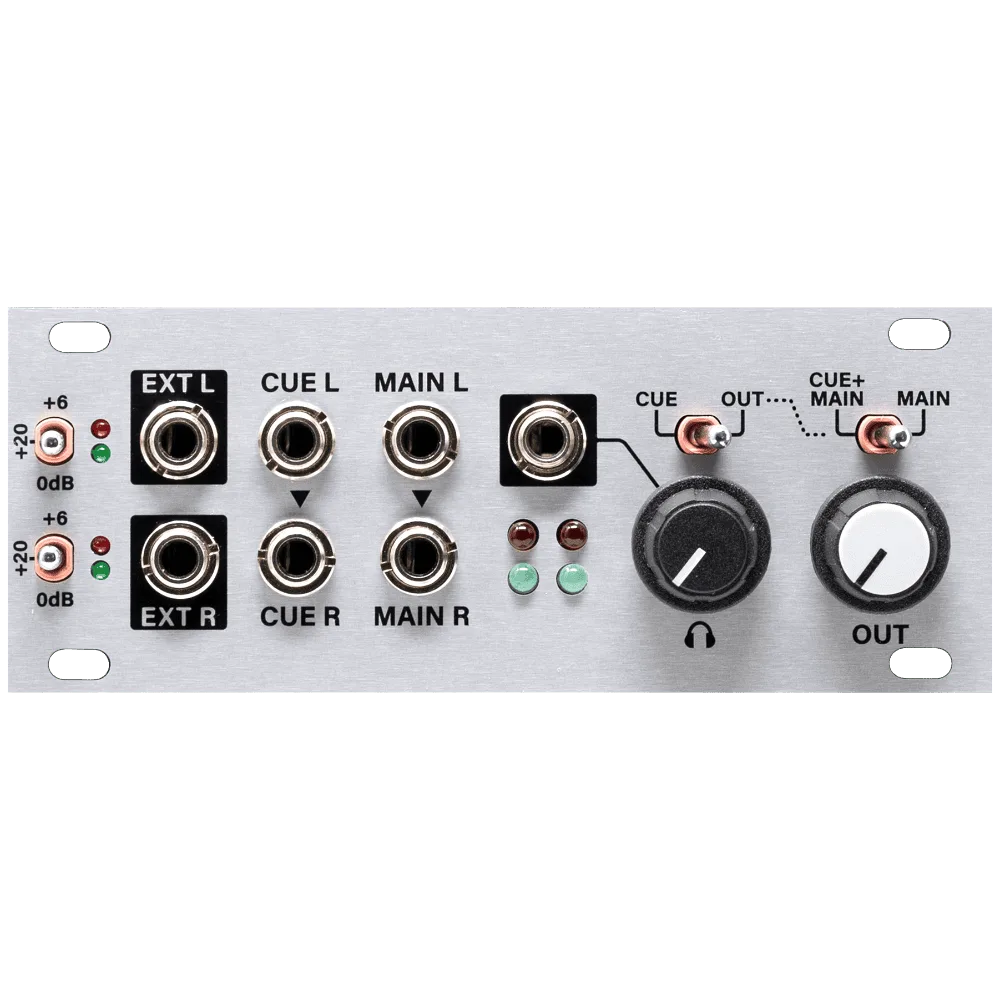

The Stereo I/O 1U is an all-in-one audio input/output module designed to bridge the gap between your Eurorack system and line-level devices. Whether you want to process external audio with your modules, monitor your patch with headphones, or connect your system to mixers or interfaces with line level – Stereo I/O 1U has got you covered.
The Stereo I/O module connects to compatible Intellijel Cases & Modules using 6-pin or 3-pin connectors (included with the module) on the module’s rear. These multi-pin connectors are compatible with:
– The Audio Jacks board of Intellijel Performance & Palette Cases (7U, 4U)
– The Stereo Line In Jacks / Stereo Line Out Jacks 1U modules
– XY IO 1U module
Features
- Main output to balanced stereo line level with volume control (for line mixers, FX, speakers etc.)
- Stereo input from balanced line level with gain switches (for Grooveboxes, FX, Synthesizers etc.)
- 1/8 inch stereo headphone output with independent level control & source selection.
- Cue output for monitoring with headphones or summing with the main output.
- Pairs well with the Aux Mix 1U module
Specifications
- Width: 20hp
- Depth: 42mm
- Power: +12V 48mA / -12V 29mA
