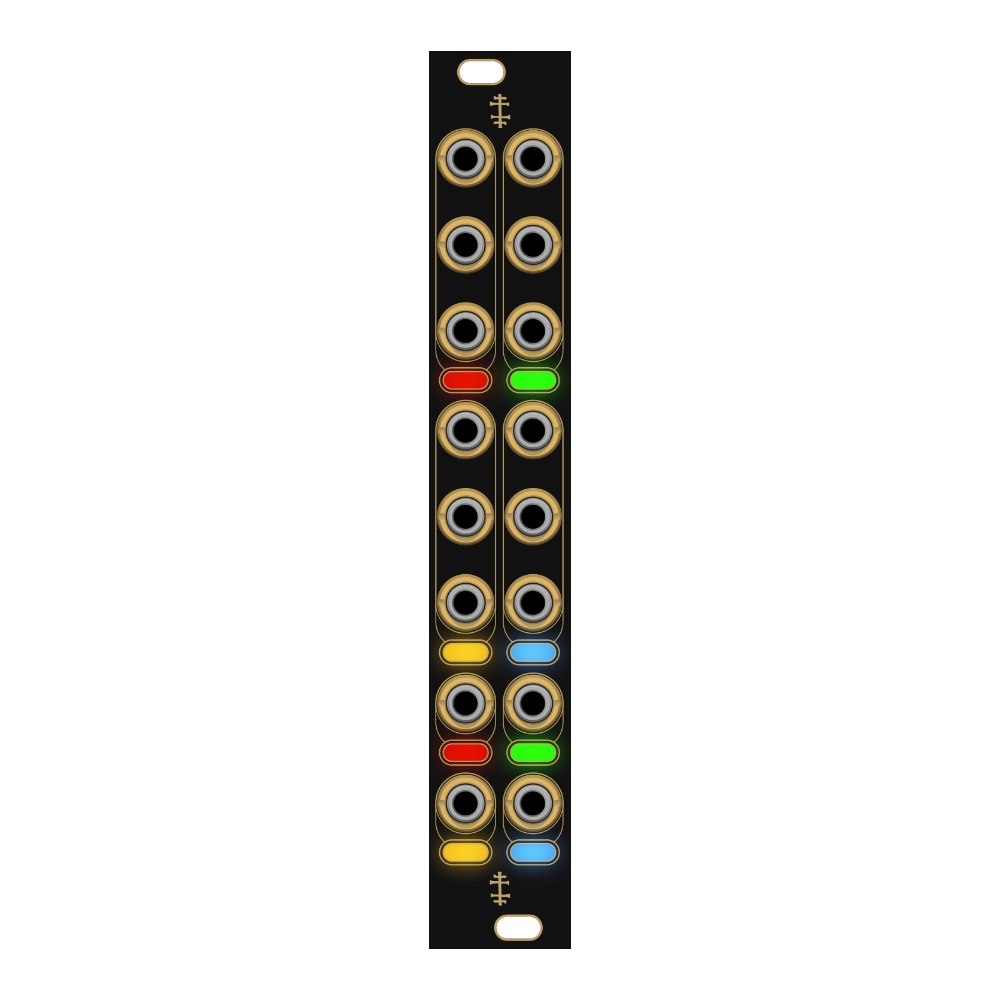

Mimic is a 4HP quad buffered mult by Isobar Industries with a performance oriented design, having inputs all localised to the bottom of the module and outputs at the top.
The module can be flipped upside down and jumpers swapped on the back to have the normalling work in either orientation. Each channel has colour-coded LEDs for even easier visualisation of each channel.
Features
- Inputs are all on one side of the module, so the outputs are more accessible in a performance environment
- Left-right normalling is reversible depending on if you wish to use the module with inputs at the top or bottom
- 3 outputs per mult channel
- Fully buffered
- Suitable for CV or Audio multiplying
- Distinct colour coding per channel. Red, Green, Yellow, Blue
Power: +12V 91mA / -12V 37mA
