The idea of the Flexshaper comes from a feature in the Oberheim® Matrix synthesizers called Tracking Generator.
This signal processor was part of the modulation matrix and meant to be virtually inserted between modulation sources and destinations in order to change the shape of the controlling signal.

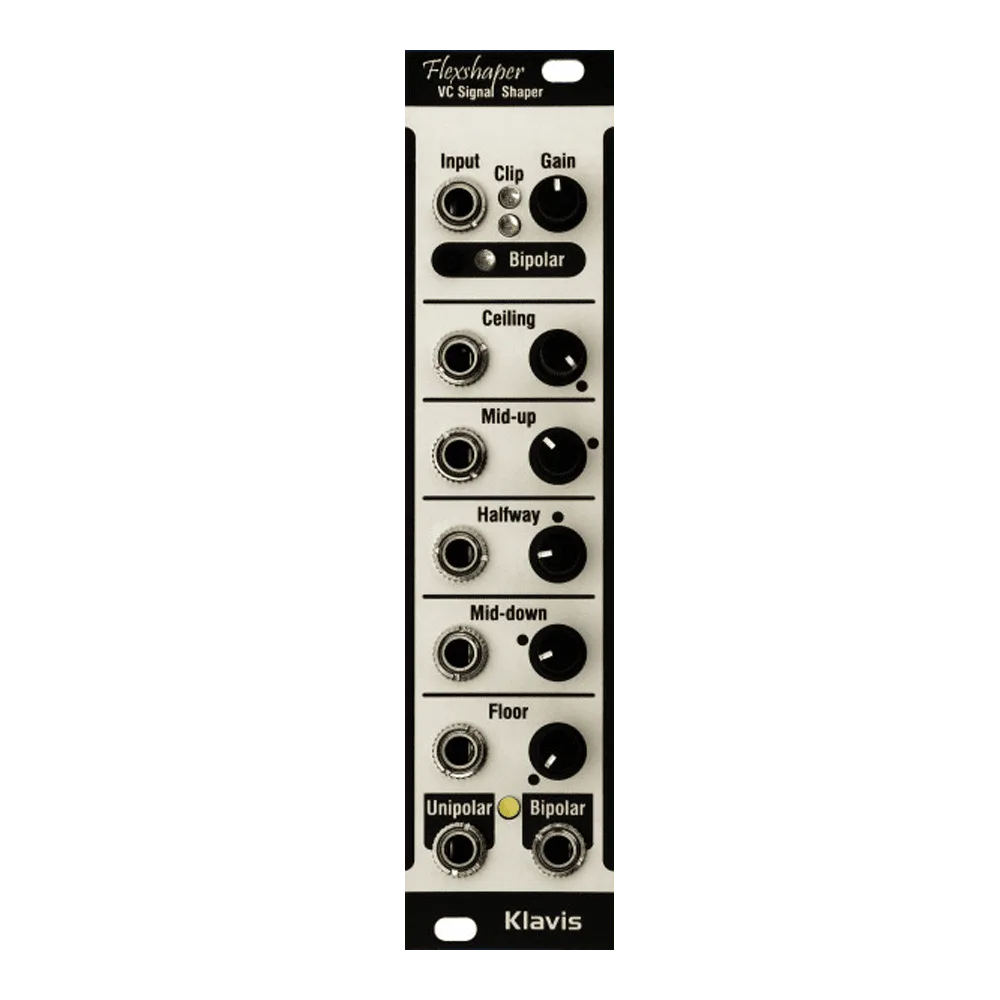

The Flexshaper is a highly versatile module when it comes to modify evolving voltages in other directions and levels. Five settings allow you to fold/expand/clip/compress/invert partially or completely any CV or audio signal. The module can act as an envelope-shaping tool, frequency multiplier, waveshaper, clipper, distortion, limiter, curve changer, and more. Five CV inputs offer limitless control over the placement of the voltage points for dynamic signal sculpting.
Features
- Process from DC to full audio range
- Unipolar/bipolar input mode switch
- Nominal & clip level LEDs
- Output signal LED
- Input gain setting for nominal level setting, allows clean flat clipping when overdriven
- Five manual voltage mapping potentiometers
- Five CV control of the voltage mapping points
- Simultaneously active unipolar and bipolar outputs
Specifications
Width: 6hp
Depth: 21mm
Power: 12V:6mA, -12V:7mA, +5V:32mA
