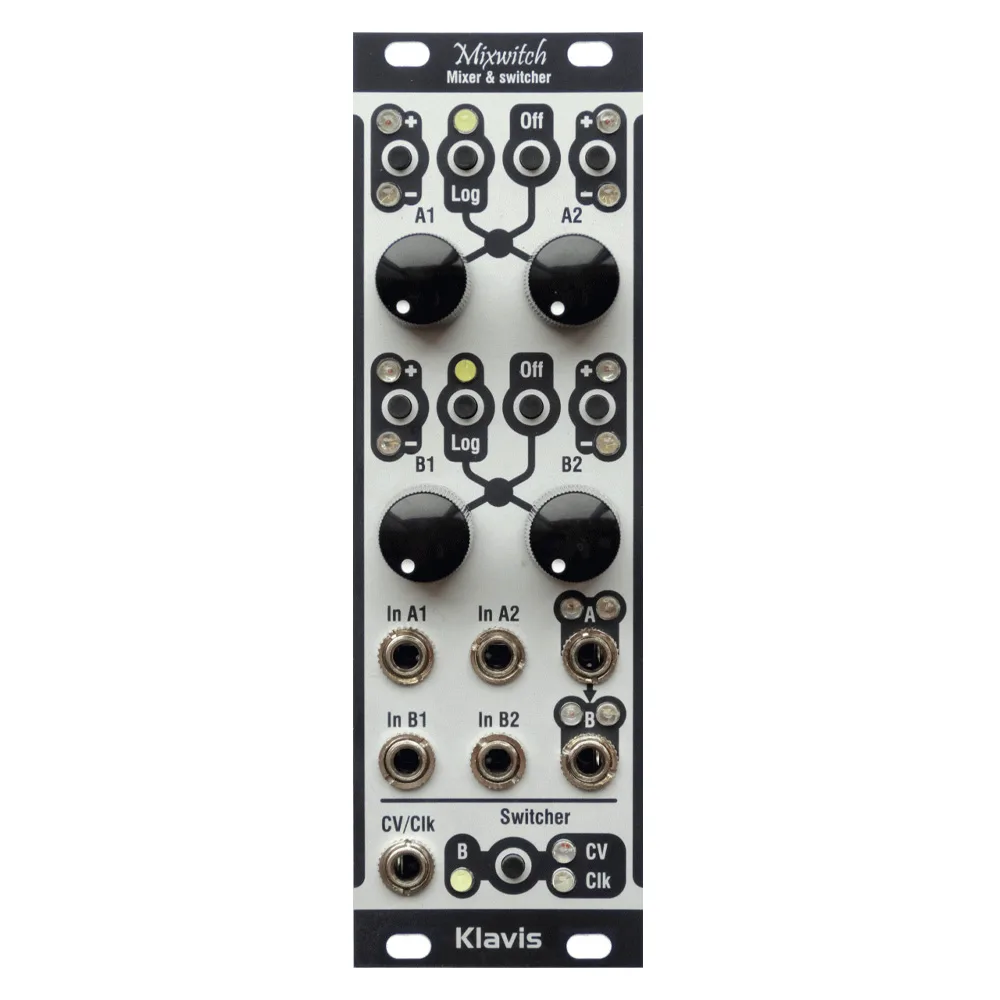

Focused versatility seems an oxymoron when describing the features that led to the design of the Mixwitch. With only a pinch of mixing, inverting and controlled switching, a plethora of combinations and uses are at your disposal. This is voltage processing magic!
Dual 2 to 1 mixers, normalized into 4 to 1
Click-less mute per mixer
Click-less polarity inversion per input with LED indication
Modulation vs. audio mode selection (lin/log) per mixer, with change of potentiometer curve response and LED indication.
Two LEDs on each output showing the amplitude and polarity of the output signal
Unconnected inputs present a fixed voltage to ease offset creation
Full range DC-coupled analog signal path
Switch/Selector
Switch among 4 inputs, only 2, or disabled
Select an input sequentially with a clock/trigger
Select an input randomly with a clock/trigger
Select an input in relation to a control voltage
CV and clock control are audio rate capable
Settings retained over the power cycle
High-quality potentiometers with metal shaft
Skiff-friendly & compact module
