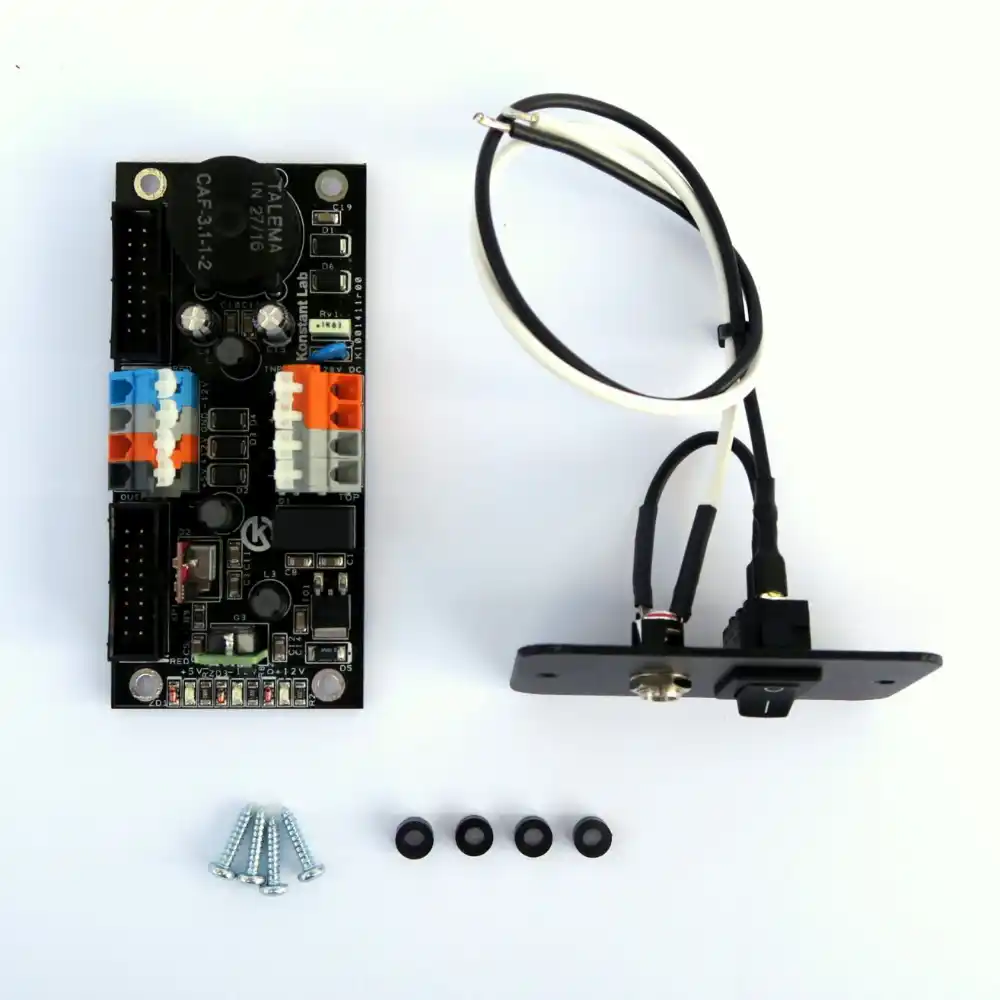

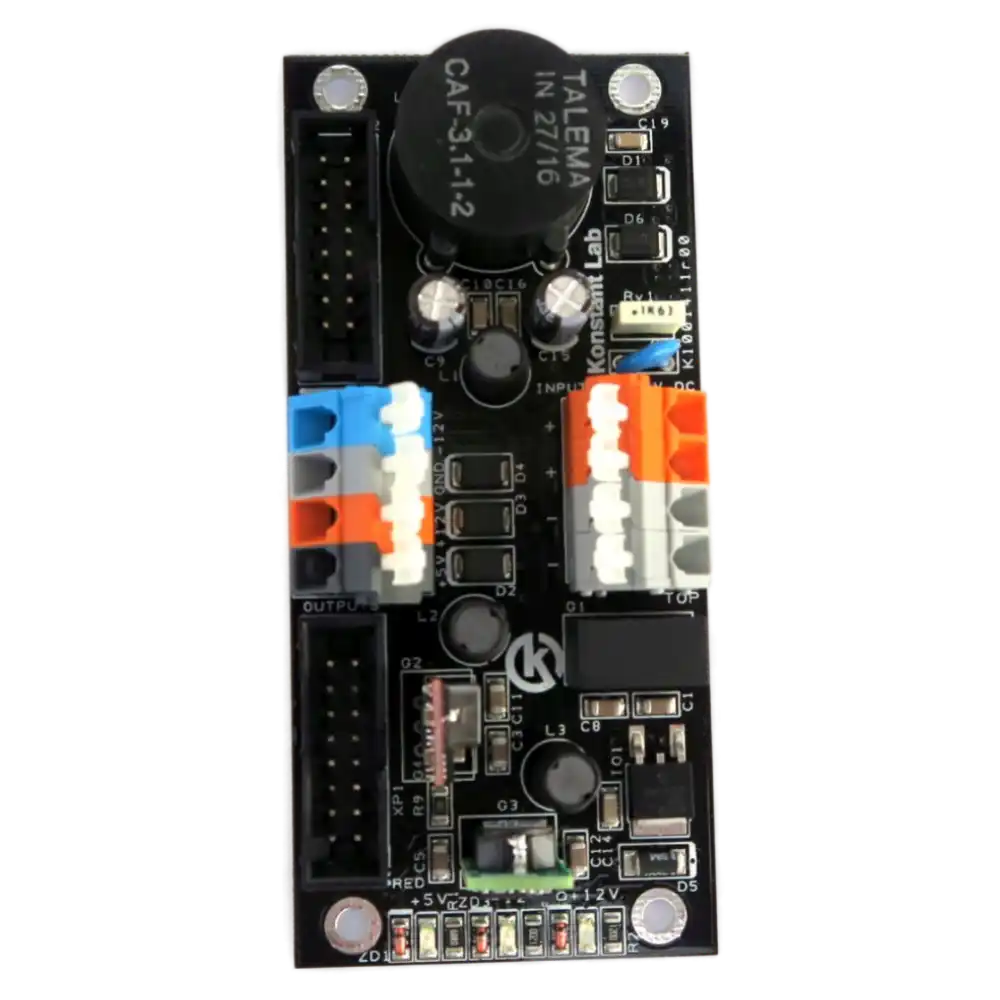

BoardPWR is a small and low weight synth PSU solution. You can mount it into your synth case without sacrificing any HP. If you are looking for a high-quality low noise power supply for your modular synth, you found it.
BoardPWR delivers 12V / 2A, -12V / 1.2A and +5V/1.5A.
With its small footprint, BoardPWR is a perfect PSU solution for the ever traveling musician. BoardPWR is safely supplied from an external DC?power?brick (16-20V). It is possible to chain more BoardPWRs together in one case and feed them from one power brick altogether. There are two types of output connections. You can either connect bus boards via two 16pins IDC headers (ideal for flying bus boards) or via high-quality WAGO spring terminals.
We recommend Meanwell GSM60A18-P1J DC Power Brick for one BoardPWR PSU and GST120A20-P1M for two BoardPWR PSU solutions.
