Filtered Bus Board #2 is the new bus board with extra filtered output headers and straight connectors.

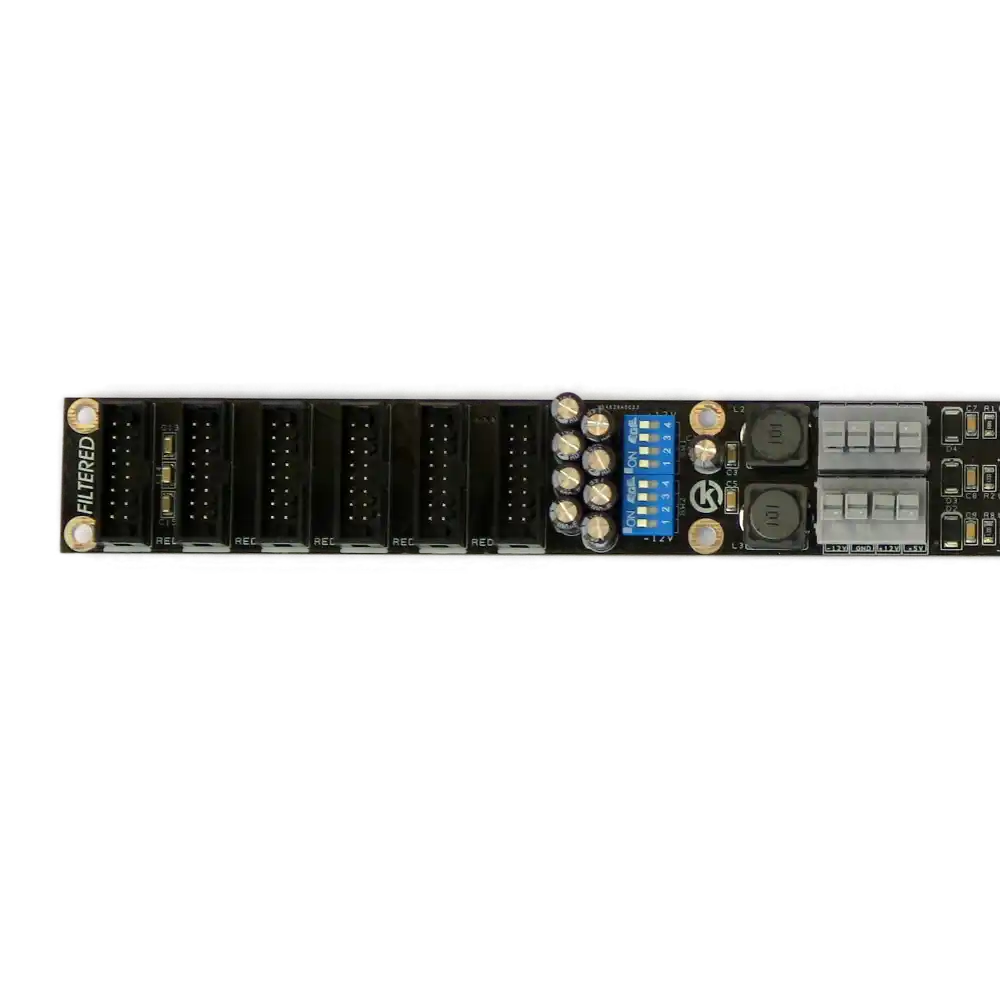

This is an ideal bus board for all Konstant Lab power supplies but also works with other eurorack power supplies as well. Bus board contains 19 output headers. 13 direct headers with decoupling capacitors and 6 filtered headers with unique filtering circuits. Filtered headers are specially dedicated to feed analog modules that are sensitive/susceptible to power quality.

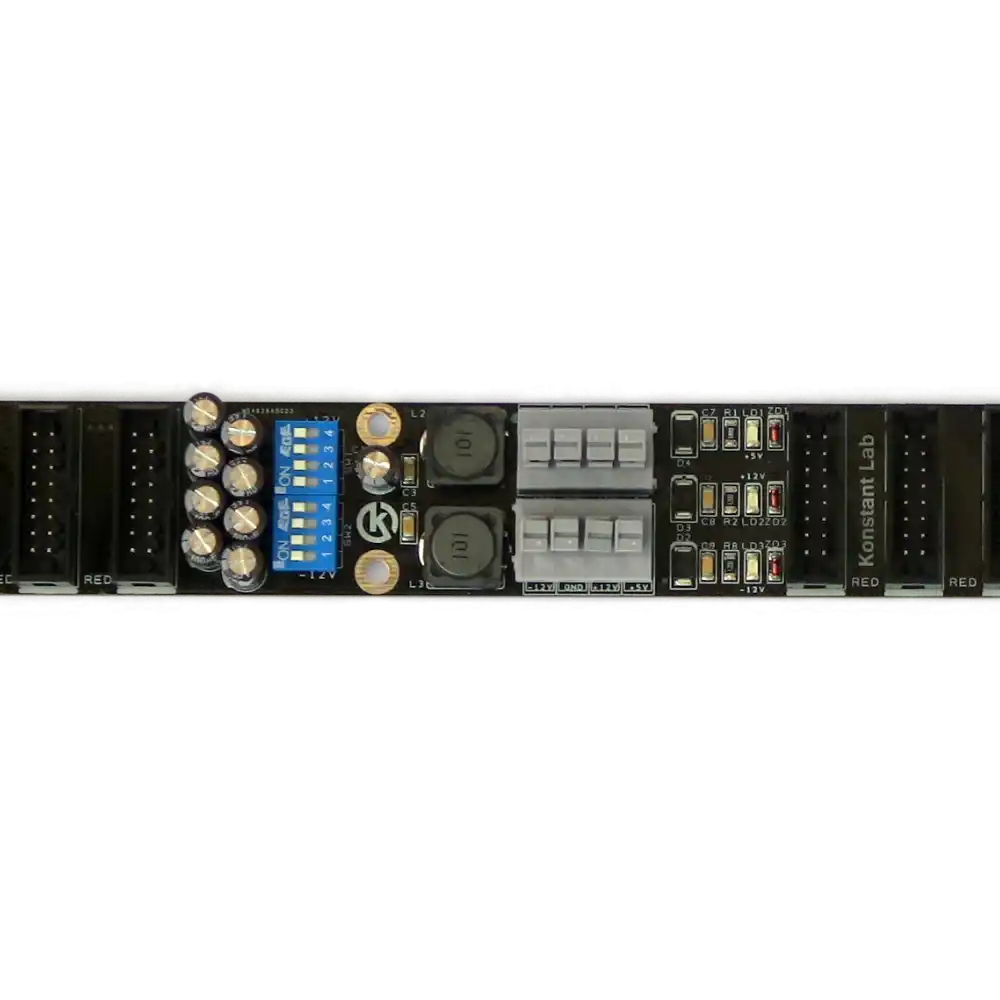

Decoupling capacitors and LC filters reject noise caused by PSU and digital modules by 70%. Two 4 ways DIP switches can tune filtration capacity when some PSU has starting problems with big capacity on output – especially handy if you have a lot of digital modules present in your system.
Each power rail is protected against over-voltage for your modules and systems safety.
Technical:
- 39.3cm x 3cm
- 20 mm height with inserted connectors
- Two shock resistant “Push to Connect” input terminals

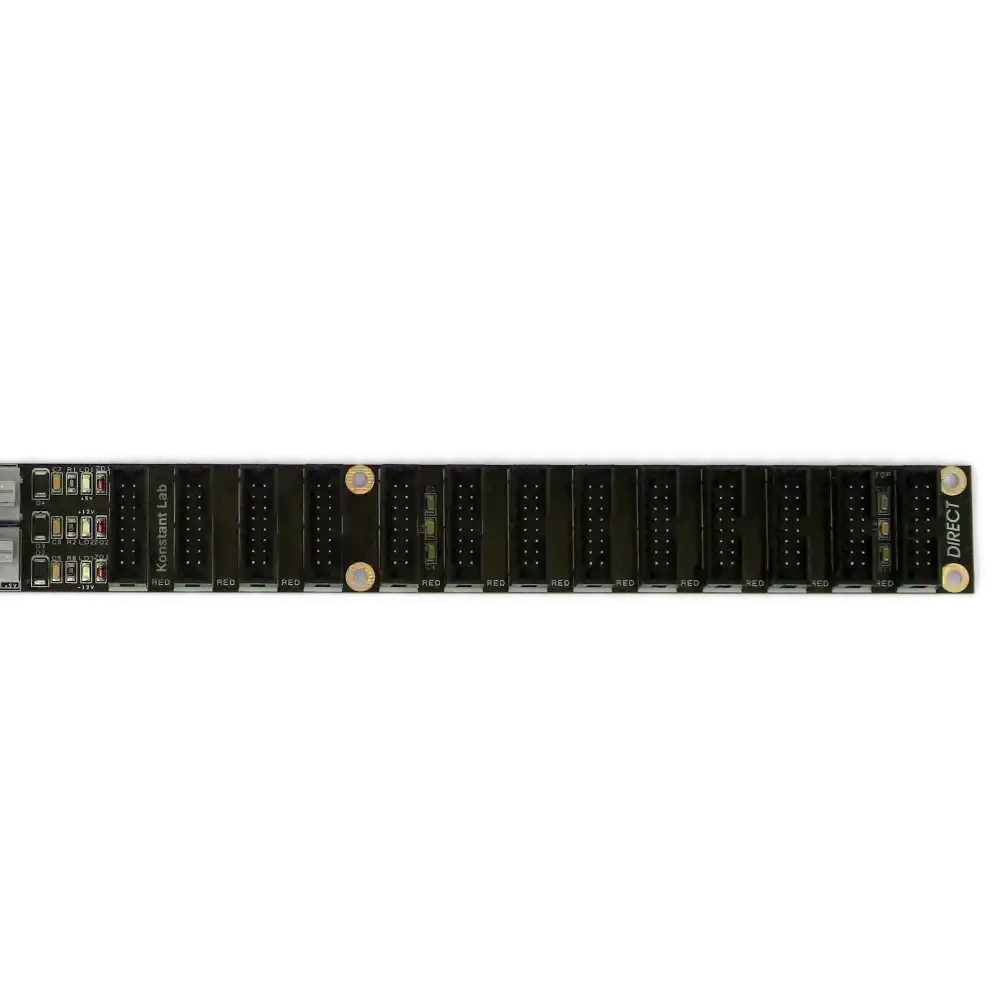

- 13 Direct Headers
- 6 Filtered Headers
- 19 TotaL shredded Output Headers
- Max Current- 4000m/a for whole busboard / 2000m/a for Filtered Section
