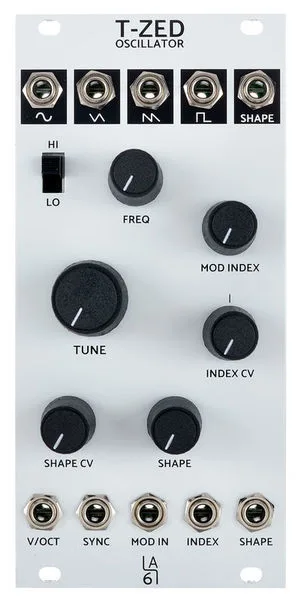

An analogue oscillator with through-zero phase modulation. The core of the T-ZED is the SSI2130 integrated circuit. Voltage controlled wave shape and phase modulation index allow for automated sonic versatility, and 2 separate frequency ranges mean the T-ZED can be used as an audio or CV source.
Features
- Simultaneous SINE, TRIANGLE, SAW, SQUARE, and variable SHAPE outputs
- Phase MOD input with bipolar INDEX circuit
- V/OCT input tracks 10 octaves
- FREQ spans 10 octaves, TUNE spans 1 octave
- Hard SYNC input
- SHAPE output (Sine to Triangle to Saw) with CV input and attenuator
- Frequency range HI: 10hz-25khz
- Frequency range LO: 0,1hz-200hz
Specifications
• 12hp
• 25mm depth
• Current draw: 55mA/45mA +12v/-12v
• Reverse power polarity protection
