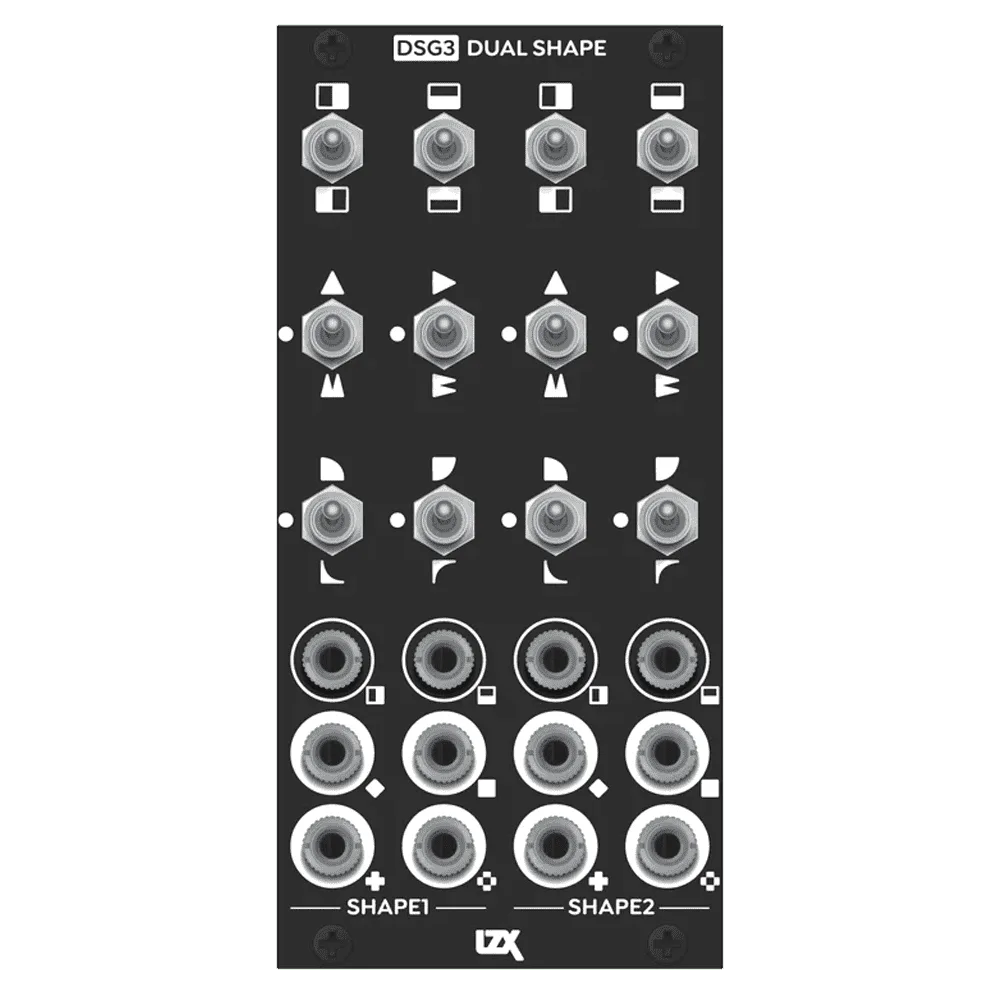

DSG3 Dual Shape Generator makes two shapes using a laundry list of powerful wave shaping functions.
- Two auto-calibrating HD/SD ramp generators
- Four inverters
- Eight frequency doublers / full wave rectifiers
- Four exponential wave shapers
- Four logarithmic wave shapers
- Two minimum functions
- Two maximum functions
- Two absolute value functions
- Two summing amplifiers
LZX Gen3 Design Standards
- Long lifespan pots, jacks and mechanical switches.
- Active switching and gain control of the entire signal path.
- Toggle switches latched to vertical refresh.
- Integrated ultra low noise power supplies.
Specifications
Width: 12hp
Depth: 42mm
Power: TBC
