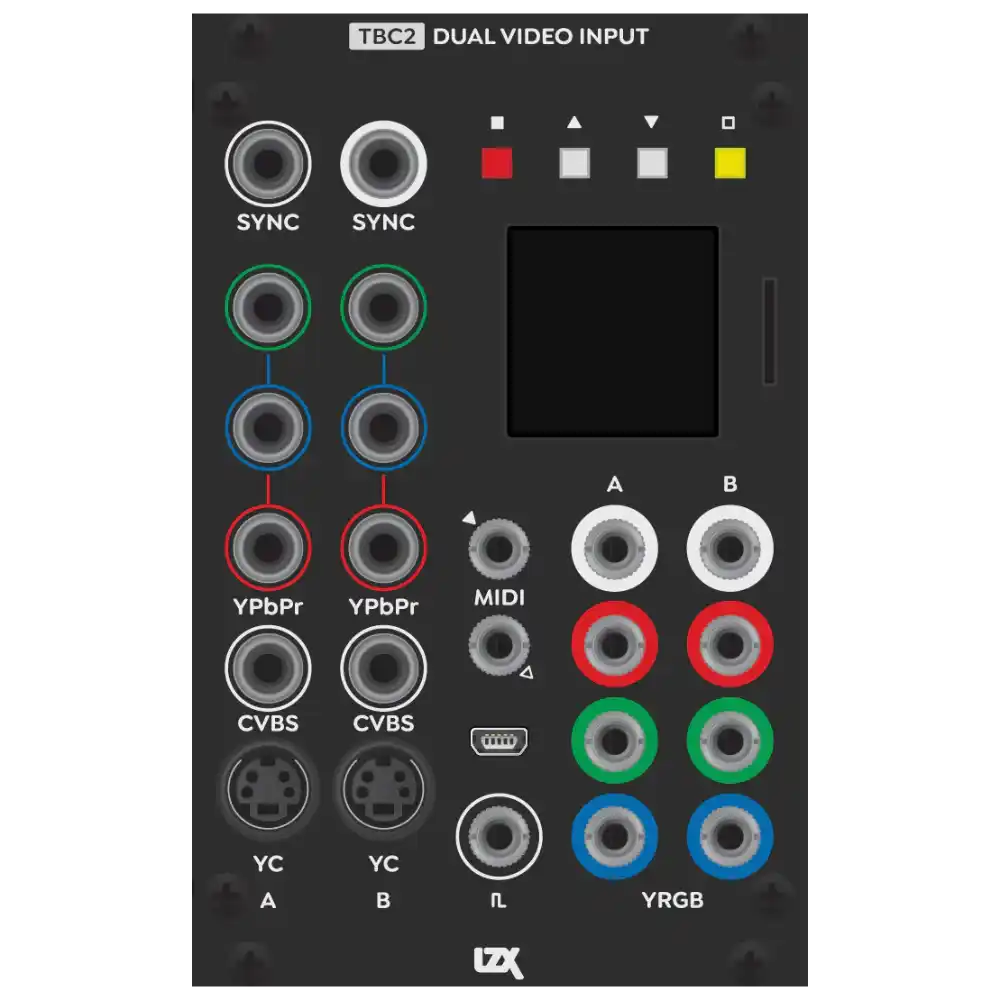

TBC2 is a dual video input module for your LZX modular system. Supported are Composite, Component & S-Video inputs capable of SD/HD video decoding and frame synchronization.
There is no change in functional capabilities or feature set between the Mk1 and Mk2; the Mk2 has a faceplate to match the branding of LZX’s Gen3 series.
Features
- SD/HD Video Sync Generator supporting NTSC, PAL, 480p, 576p, 720p50, 720p5994, 720p60, 1080i50, 1080i5994, 1080i60, 1080p2398, 1080p24, 1080p25, 1080p2997, 1080p30 sync formats
- Dual SD/HD Video Decoders supporting NTSC, PAL, 480p, 576p, 720p50, 720p5994, 720p60, 1080i50, 1080i5994, 1080i60, 1080p2398, 1080p24, 1080p25, 1080p2997, 1080p30 input sources
- VESA/VGA input up to 1024×768 with optional 10HP VGA+SCART expander
- Playback of still images and looping sequences loaded from frontpanel MicroSD card slot
- SD color correction controls for each input: Hue, Saturation, Contrast & Brightness
- Auto upscaling and downscaling modes for both inputs
- MIDI input for remote parameter control
Specifications
- Width: 16hp
- Depth: 55mm
- Power: +12V 600mA
