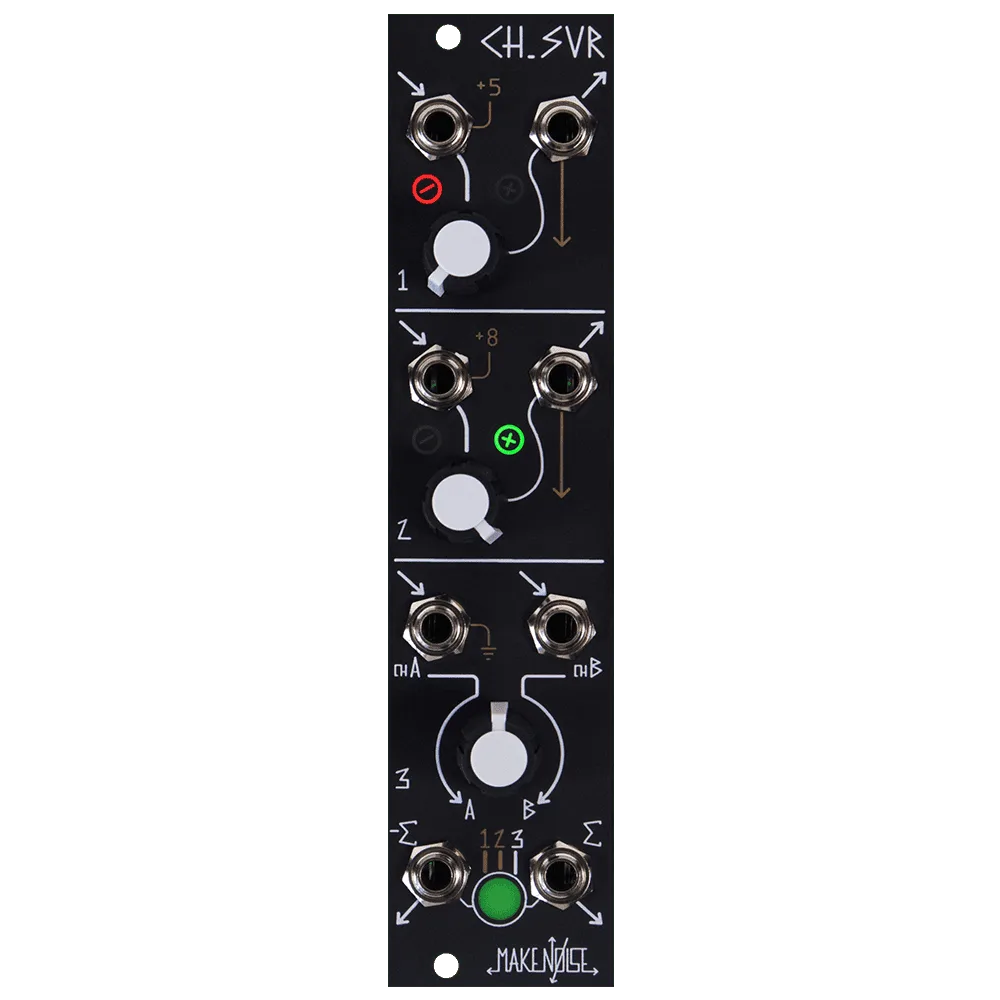

The Channel Saver music synthesizer module is a small utility module, offering several channels of signal-processing that will be useful in just about any modular system. As a condensation/extension of the sum/offset/attenuversion aspects of MATHS, it continues the great tradition of sculpting the control signals we use to sculpt our sound signals.
Features
- Scale, amplify, attenuate, or invert an incoming signal using Channels 1 or 2
- Generate DC offsets when Channel 1 or 2 is unpatched
- Crossfade between two signals, or attenuate one signal, using Channel 3
- SUM and INVerted Sum Bus for addition, subtraction, mirroring, inversion etc.
- Individual Channel Outputs for Channels 1 and 2 allow independent use of all three channels
- Anywhere you need more subtle modulation, Ch. Svr is there for you… now all your eurorack slivers may have subtle and intentional modulation they deserve!
Specifications
- Width: 6hp
- Depth: 30mm
- Power: +12v 20mA / -12v 10mA
