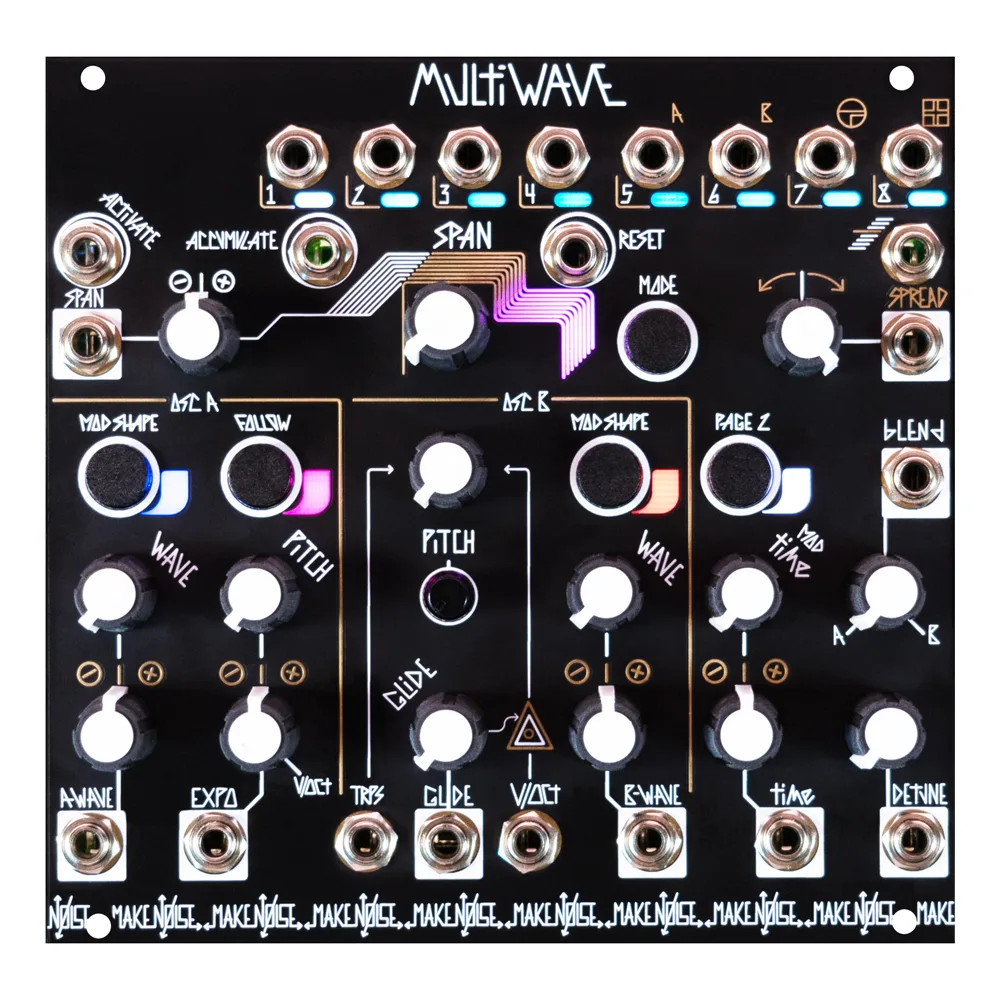

MultiWAVE is an 8-channel dual wavetable oscillator for the New Universal Synthesizer System or any Eurorack modular synthesizer. It uses a single set of controls to generate audio waveforms at eight independent channel outputs.
Each of the eight MultiWAVE channels contains two independent wavetable oscillators, Osc A and Osc B, each with variable frequency, modulation, and wavetable position.
MultiWAVE includes an output header for creating pre-patched connections to the audio signal inputs of two QXG modules. When grouped up with PoliMATHS it creates the 8-channel hybrid polysynth core of the New Universal Synthesizer System.
Features
- 8-channel dual wavetable oscillator with a single set of controls
- Sequence A and B oscillators (per channel) independently or together via 4 follow modes
- Generate polyphonic activations from monophonic sequences using Modulation Dissemination, Span modes, Spread, and Accumulate.
- Variable timbre per channel via Spread and Modulation Dissemination
- Independent v/o inputs per oscillator and global transpose v/o input
- Built-in polyphonic quantizer
- Modulatable polyphonic detune, and glide.
- Works as a Harmonic Oscillator with detune turned fully clock wise
- Modulate wavetables using built-in MultiMod LFO
- Independent modulation depth and shape per oscillator.
- Modulation Time and depth variable per voice via spread and modulation dissemination
- Ships with custom Make Noise wavetables developed from Make Noise modules
- Smooth interpolation between waveforms
- Compatible with Waveedit format wavetables
- Each wavetable contains 64 waves
- Capable of storing 8 banks of 8 wavetables.
- Activate channels in multiple voltage-controllable Span modes
- In arbitrary order using Channel Index
- Sequentially with variable channel count step in Round
- Via variable per channel clock divisions using Parallel
- Oscillator Core of the New Universal Synthesizer System
- Designed for seamless use with PoliMATHS, QXG, and future N.U.S.S. modules
Specifications
- Width: 26hp
- Depth: 43mm
- Power: +12V 250mA / -12V 5mA
