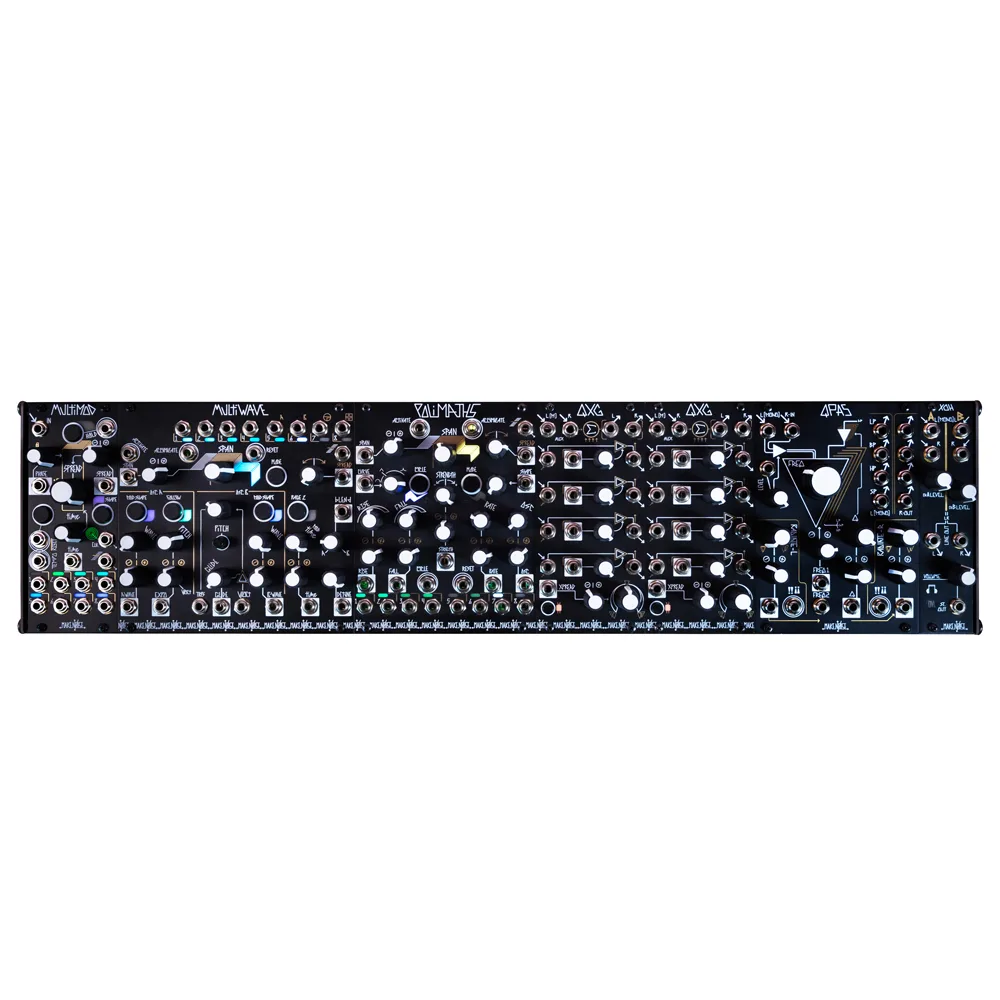

The New Universal Skiff System music synthesizer is a small system devoted to multi-channel modular synthesis, using control voltages to create poliphonic sound events. The MultiWAVE provides eight dual wavetable oscillators, the PoliMATHS provides eight complex function generators, and a pair of QXG modules combine for eight channels of low pass gate with stereo mix animation. Together, these three modules enable poliphonic patching from a simple set of controls. In addition to the 8 channels of Polimaths for modulation, the MultiMod creates eight time-shifted variants of a single control signal, for even deeper modulation capabilities within New Universal Skiff System. QPAS provides Multi-Mode Multi-Peak Stereo Filtering, and the XOH provides a final stereo mix and line-level or headphone outputs for monitoring and/or performance. The system also includes a USB-C input that can be used for Activation of MultiWAVE channels via MIDI or MPE signals from a USB MIDI host (such as a computer running a DAW or MIDI sequencer).
Features
- The New Universal Synthesizer System modules come together in a unified system!
- Voltage controlled eight channel dual wavetable oscillator: MultiWAVE
- Voltage controlled eight channel complex function generator: PoliMATHS
- Voltage controlled low pass gate/mixing: QXG (x2)
- Voltage controlled flock of inter-related modulators: MultiMod
- Voltage controlled Multi-Mode Multi-Peak Stereo Filtering: QPAS
- Stereo Mixing and Final Outputs: XOH
- Activate MultiWAVE via MIDI/MPE using USB-C input with a USB host
- 3U Skiff outfitted with USB-C input and our new 2-Zone Bus Board
- Ships with 15 patch cables
Specifications
- Size: 3U
- Total hp: 104
- Dimensions: 21.5 x 5.14 x 3.5 (inches)
- Weight: 7.05 lb
