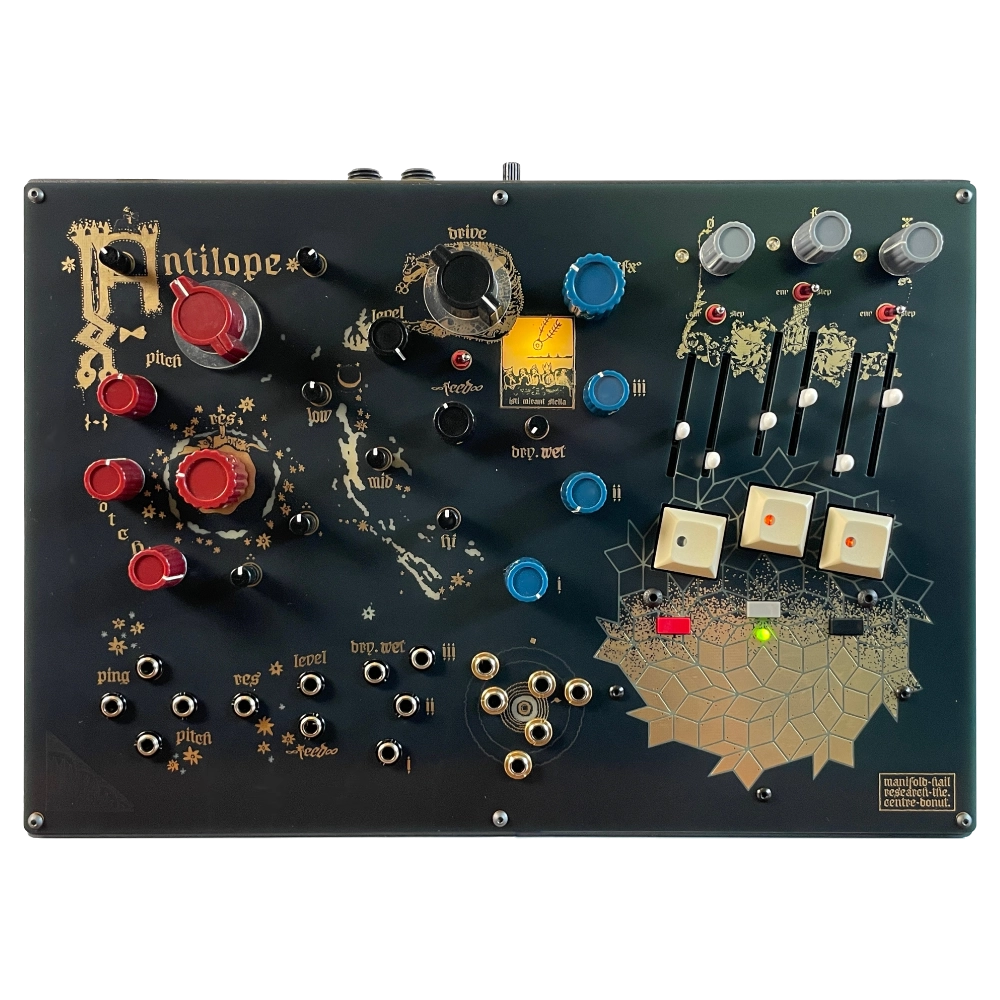

Antilope is a pseudo drum and dynamics machine, a dual pingable fully resonant filter, with distortion + multiFX feedback path, all controllable through a pattern recorder with 3 CV sources switchable between morphable AD envelopes or stepped voltages.

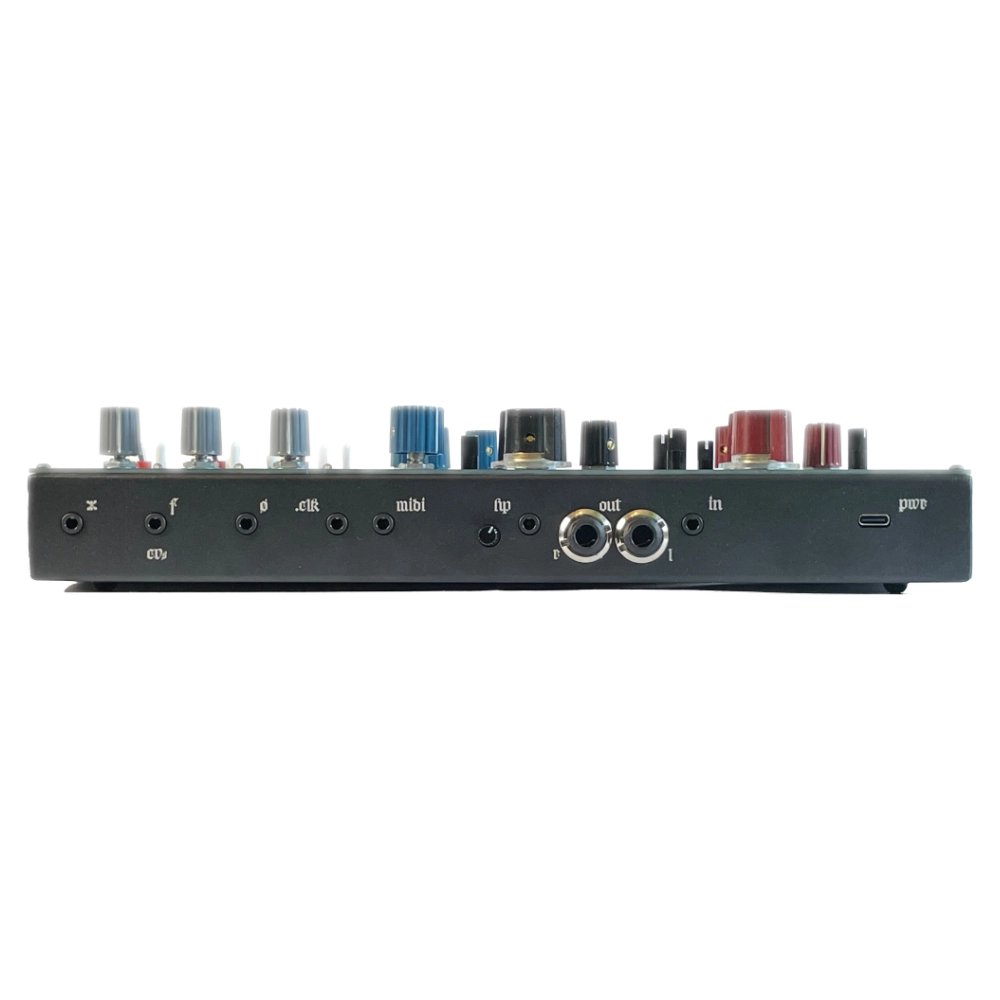

It’s a standalone instrument, but compatible with Eurorack voltage levels, with midi clk/reset and sync inputs. It has a stereo line level input for processing external sources, stereo line level out, and a headphone output.
A USB C (2.4A) power input makes Antilope a portable instrument.
Features
- Dual filter with common cutoff, resonance and spread
- Quasi-linear control of filter decay length
- Distortion section composed of a level control, distortion, feedback, and a three band equaliser
- Level and feedback are VCAs, making them CV controllable
- Spin FV-1 FX section offers 7 different stereo algorithms, spacing from multi-tap echoes, flanger delays, pitch shifting delays and reverbs
- Dedicated CV and gate outputs for each channel
- Touch/magnetic surface allows to introduce various types and combinations of cross modulations between 3 channels
- USB port for future CORE firmware updates
Specifications
- Width: 10hp
- Depth: 35mm
- Power: +12V 25mA / -12V 29mA
