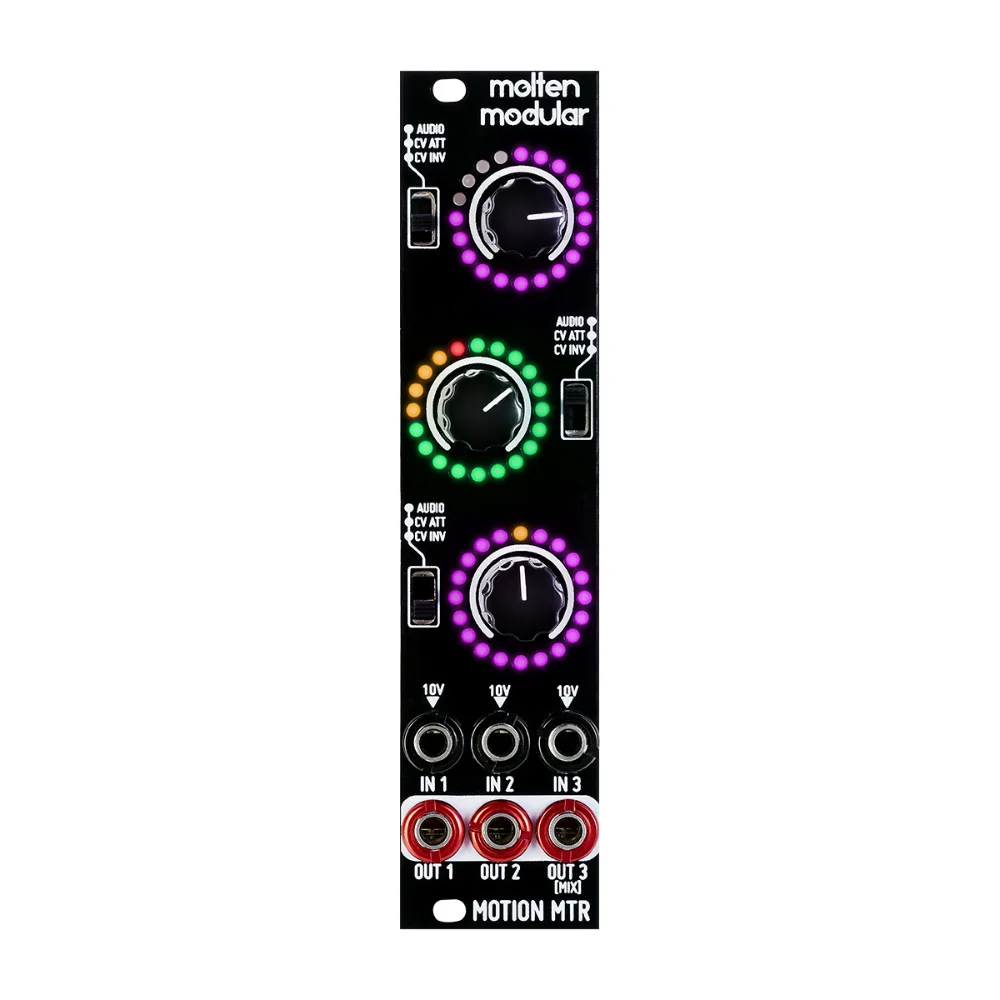

Motion MTR allow you to mix, attenuate and invert signals while having clear visual feedback of their levels. Each channel can function as:
- Audio level control with VU meter
- CV attenuator with voltage meter
- CV inverter with voltage meter
Each input is normalled to 10v, so you can use each of them to generate fixed voltages. Also, the outputs of channels 1 and 2 are summed into Out 3 to be used as a mixer. Patch it wildly to make it work as an attenuverter with offset, as a mixer, a VU meter or a combination of them all!
Features
- Three channels attenuator
- CV and inverted CV visualization
- Audio VU meter mode
- Normalled inputs to 10v
- Outputs summed at OUT3
Specifications
- Width: 6hp
- Depth: 30mm
- Power: +110mA / -43mA
