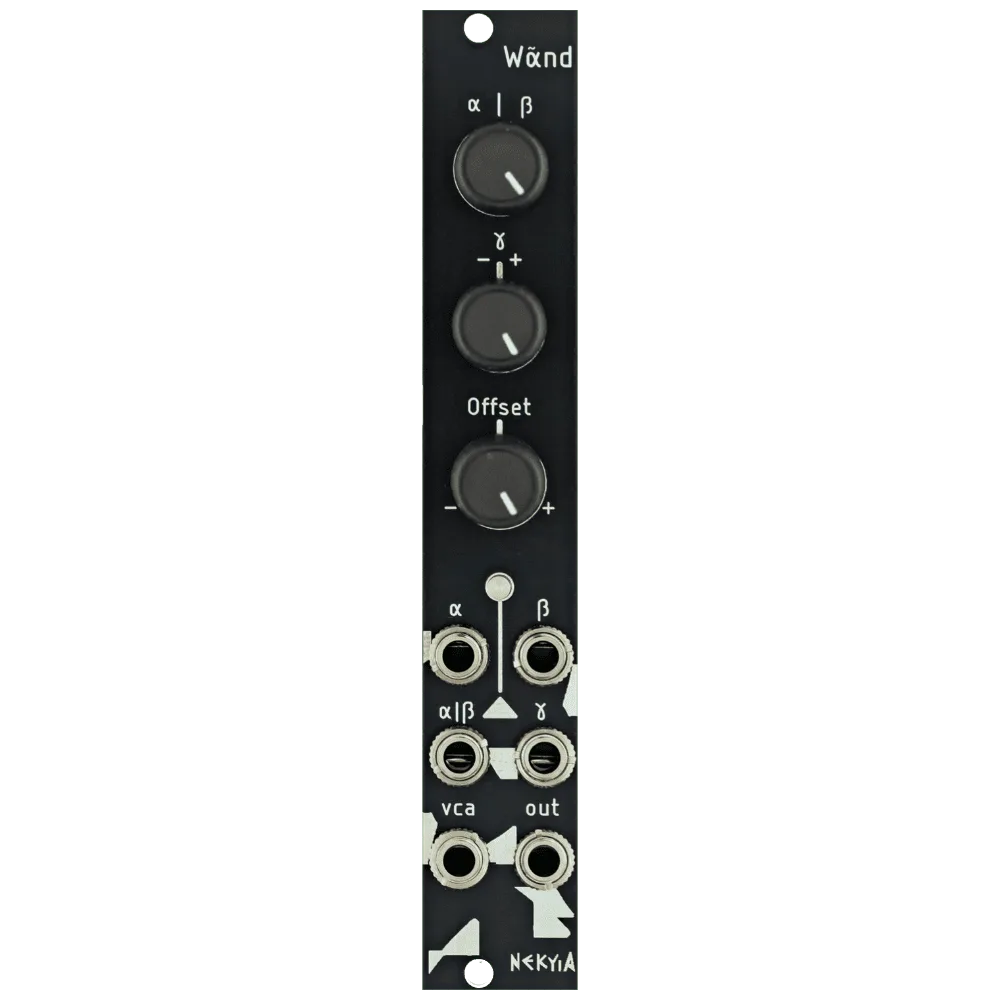

Wand is a voltage processor based on the Buchla 257 design. It consists of three sections; a voltage controlled crossfader, an attenuverter and an offset generator. Crossfader section has the addition of a VCA to voltage control its level. The combination of the three sections through the sum output will provide a wide range of applications for processing both audio and control signals.
A legendary utility module in only 4hp in order to fit in any rack!
Features
- Voltage controlled Crossfader with an extra VCA
- Attenuverter with an individual input
- Offset Generator 5V or 10V
- Sum out of all the three voltage processors
Specifications
- Width: 4hp
- Depth: 25mm
- Power: +12V 23mA / -12V 24mA
