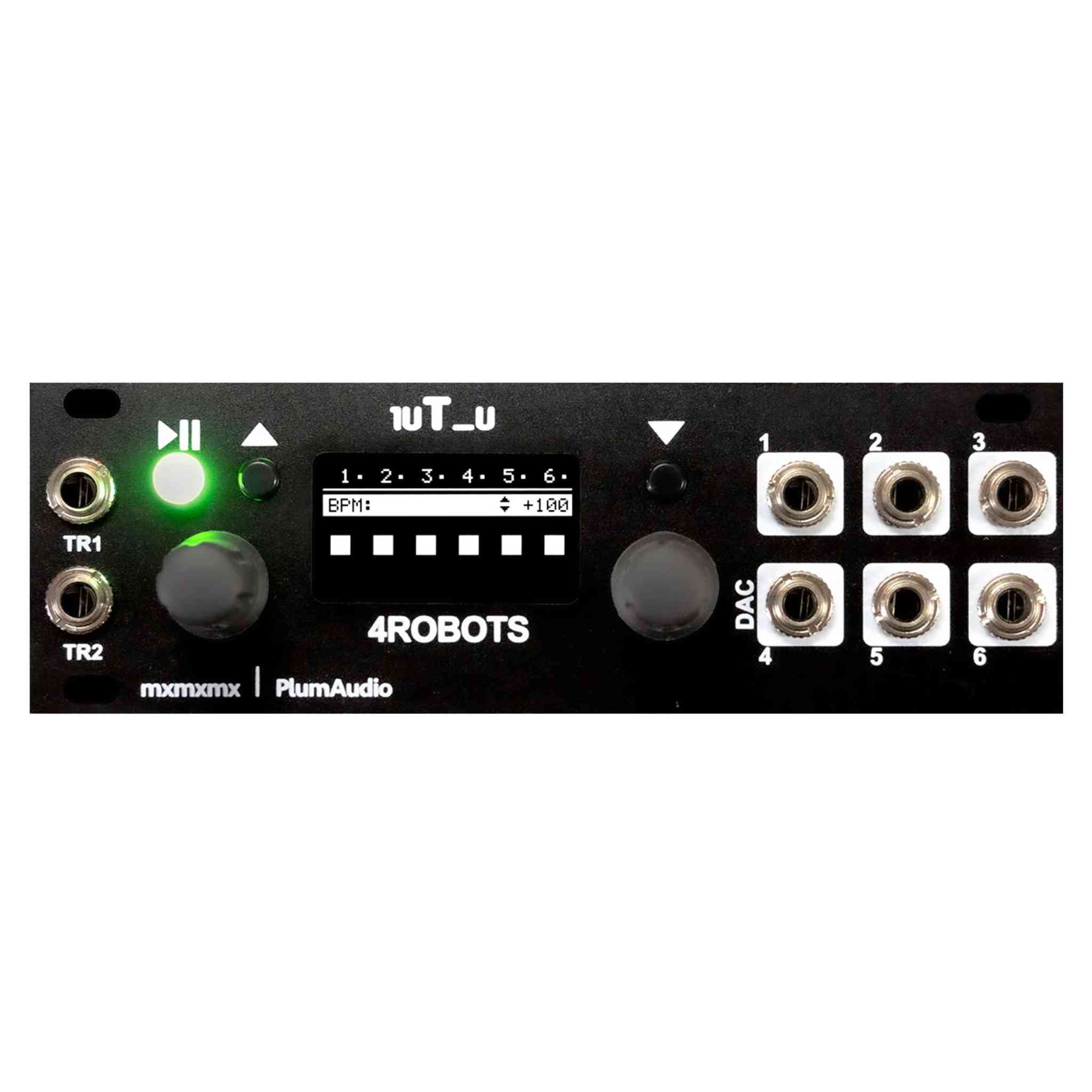

Plum Audio 1uT_u 4ROBOTS +Ex6 Eurorack Module (Black)

A powerful Clock generator / Clock modulator with 6 Clocks / Trigger channels, one of them with a DAC (channel #4 is able to generate CV).

Features

• Clock division / Multiplication from external clock or from the internal clock
• Trigger sequencer / Sequence editor – Create your oun grooves
• LFSR (“Turing machine”)
• Random triggers with threshold
• Euclidian Rhythm generator
• Logic gates (AND, OR, XOR, NAND, NOR, XNOR)
• Burst
• DAC (channel #4 only): random, binary, “Turing”, logistic, sequencer/arpeggiator
• Save and recall 6 Presets.
• 2 Trigger inputs to use with external cloclks or to send reset / mute
• Play / Stop button with color indicator
• 1.3″ OLED Screen

CV inputs are not necessary for the basic operation of the clock but the ability to modulate different parameters from any CV source can add a lot of fun.

Tech Specs

• 24HP
• Intellijel 1u format
• 27mm Deep
• Current Draw:+12v – 50mA, -12v – 20mA, +5v – 0mA

Product manufacturer page here.

Product Manual.
