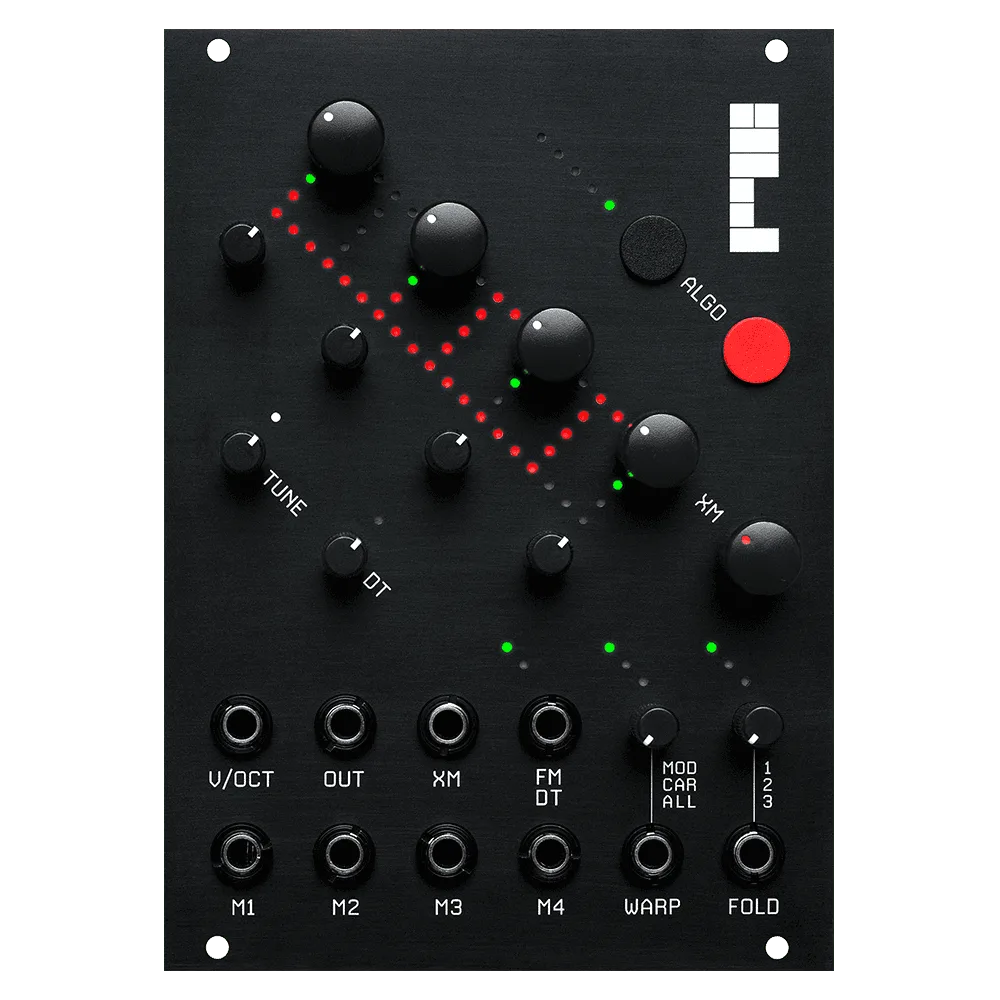

RYK Modular Algo Eurorack Quad Complex Oscillator Bank Module

389.00 inc. VAT
369.00 inc. VAT

304.96 ex. VAT

In stock

Bear in mind prices on the site are initially shown including Spanish VAT (21%).

After entering your shipping address at checkout prices on the site will update to show the correct VAT amount due to us based on your location. If purchasing from outside the EU, VAT, handling fees, and import duties will potentially be due on delivery.





Product Info


All knobs and no menus, an FM synth engine with hands-on control!

ALGO’s four through-zero oscillators can be configured in series, or parallel combinations, to create Complex FM or additive sound textures.

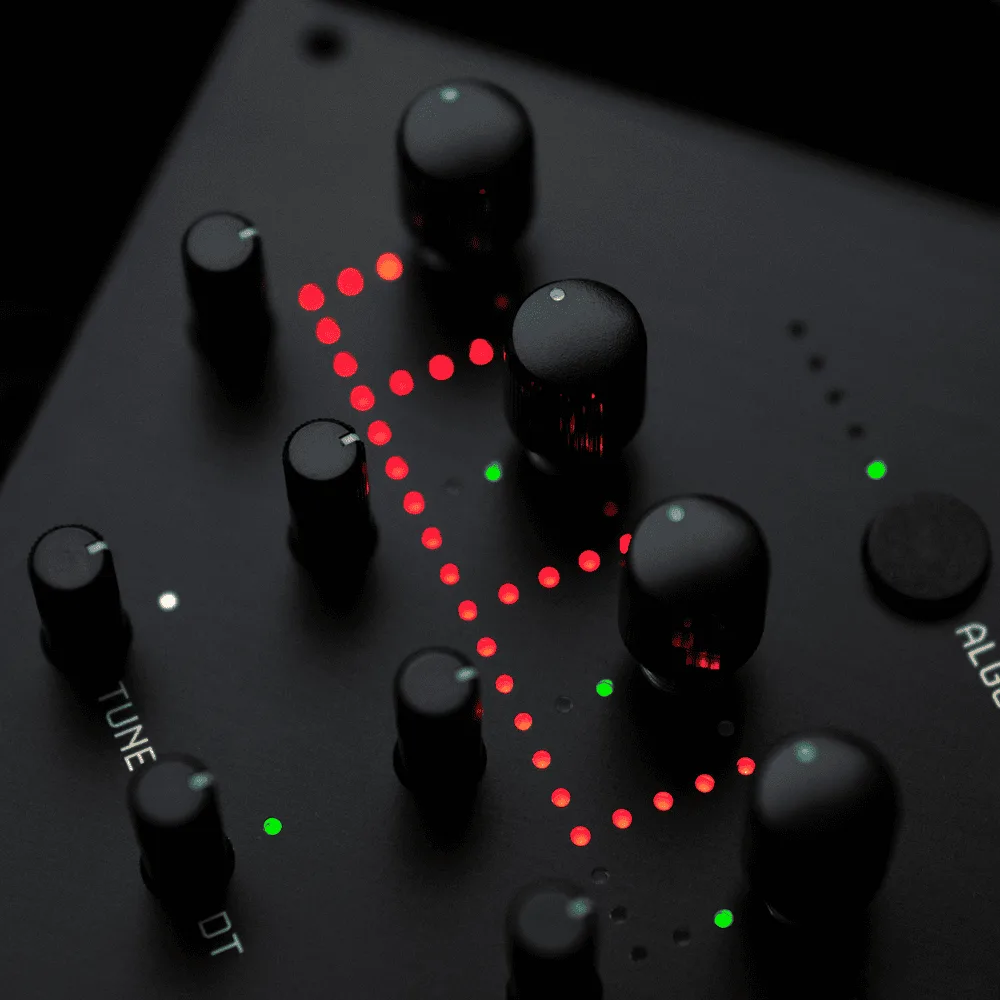

A unique Algorithm Display indicates the signal flow from one oscillator to another – easy-to-understand FM with pretty twinkly lights! Each oscillator has controls for Level and Frequency, allowing easy adjustment of FM timbres, no menu diving snorkels needed.

Modulation inputs for Frequency or Level for each oscillator – patch in a couple of Envelopes, and you have an instant FM synth voice.

Bored of Sine waves? A generous Wave Warp control bends things through Triangle to Pulse wave and back again. Wave Warp can be applied to Carrier, Modulator or both types of oscillators. For the more discerning mangler, Wave Folding is also available in three delicious flavours; Symmetric, Asymmetric and Soft Clip! A Global Detune spread control with CV input is great for creating Netflix apocalypse drones that descend into the abyss.

Lastly, an onboard Stereo Chorus can add a vivacious 1980’s shimmer to all your FM creations.

Oh, nearly forgot. It’s in Stereo!

Features

  • Frequency range: 8hz – 35khz
  • Sampling frequency: 85khz @ 2 x oversampled ( 170khz )
  • Four through zero oscillators
  • Harmonic intervals, Fine tune, or Fixed frequency options for each oscillator
  • Amplitude OR Frequency/V/OCT CV inputs for each oscilator
  • 9 FM algorithm combinations
  • Wave Shaping and three types of Wave folding
  • Multi Stage vari speed high quality chorus effect
  • Stereo output, with Pan control for each oscillator in the stereo field
  • Pretty lights!

Specifications

  • Width: 18hp
  • Depth: 25mm
  • Power: +12v 70mA / -12v 6mA

Manufacturer product page here.
