A powerful utility module:

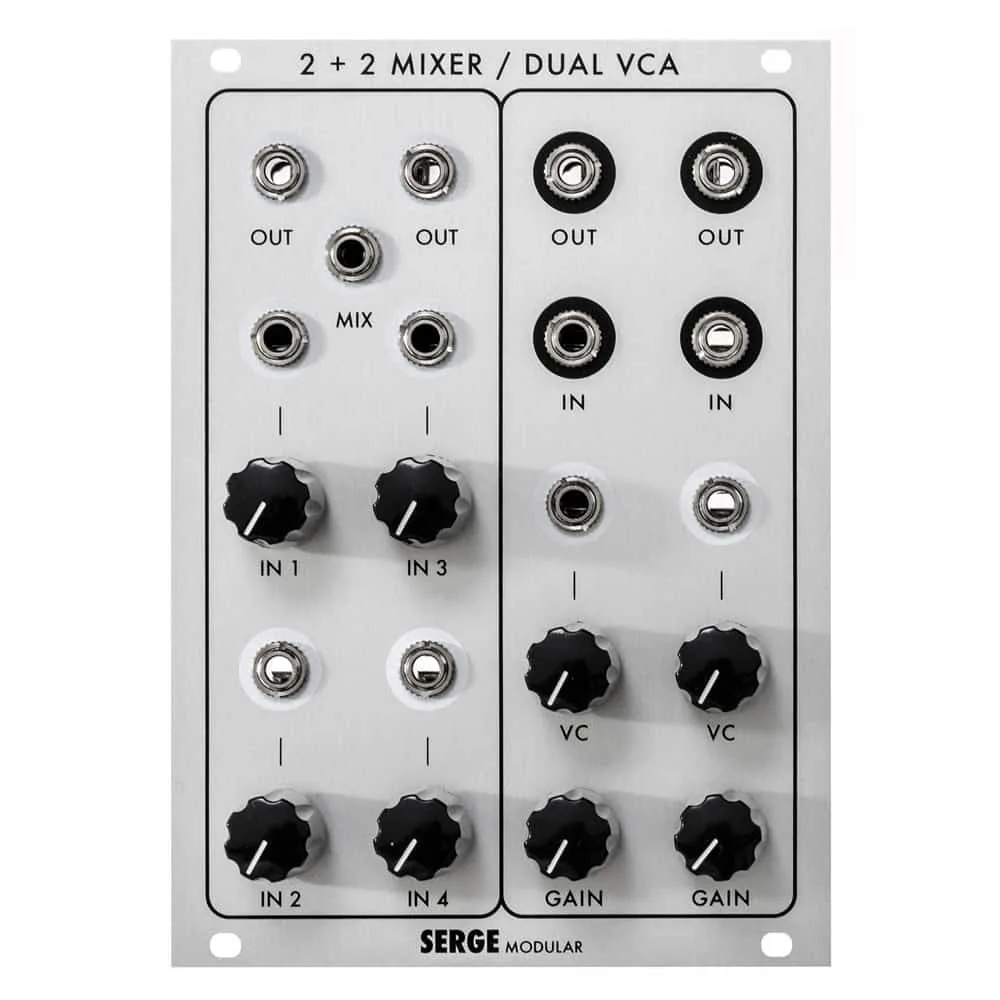

The 2+2 Mixer (left side) is a combo of two DC coupled 2-channel mixers with a sum out. For audio or CV purposes.
The Dual VCA is the audiophile and distortion friedly VCA taken from the Stereo Mixer. It has a special exponential response that imitates the behavior of the early Serge VCAs and allows massive amplification and overdrive. Beware – the resulting signal can get very high amplitudes (up to 16Vpp) and allows squaring of a sine or triangle wave.
Specifications
- Width: 18hp
- Depth: 25mm
- Power: +12V 55mA / -12V 50mA
