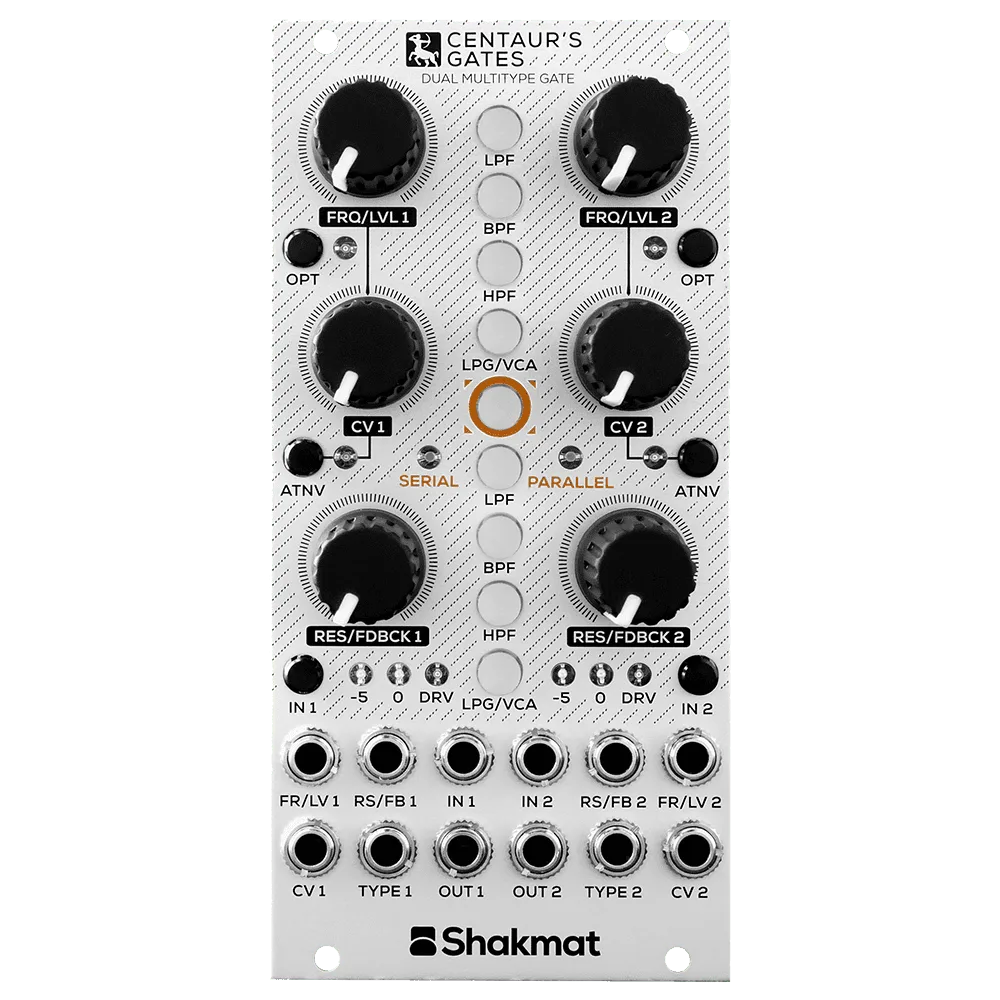

Shakmat Modular Centaur’s Gates Eurorack Multi Mode Filter VCA Module

369.00 inc. VAT

304.96 ex. VAT

In stock

Bear in mind prices on the site are initially shown including Spanish VAT (21%).

After entering your shipping address at checkout prices on the site will update to show the correct VAT amount due to us based on your location. If purchasing from outside the EU, VAT, handling fees, and import duties will potentially be due on delivery.





Product Info


The Centaur’s Gates is a fully analog signal path dual multi-types gate. Each of its two channels can take many forms: a smooth and warm two poles filter, a ready-to-ping low-pass gate, a VCA with distorting feedback loop, or an aggressive filter reminiscent of the unfamous Korg MS20. Both versions of the filter are available in three modes (low-pass, band-pass and high-pass), bringing to eight the number of types a channel can take the form of.

The extended sonic palette the Centaur’s Gates delivers is not its only asset as the module includes handy features such as serial/parallel routing, vactrol analog emulation, control link, variable input gain with drive, Select Bus compatibility, and last but not least, clickless switching for channels type selection via CV.

Features

  • Dual channel multi mode filter, low-pass gate or VCA
  • Smooth & warm or agressive & overdriven VCF characters
  • VCA with parallel distortion and feedback loop
  • LPG with 1 pole or 2 poles response
  • Serial and parallel routing configurations
  • Opto feature simulating vactrol behavior
  • Channel linking
  • Clickless type switching
  • Select bus compatibility with 16 presets
  • DJTechTools rubber injected knobs
  • Skiff friendly

Specifications

  • Width: 12hp
  • Power: +12V 190mA / -12V 150mA

Manufacturer product page here.
Product manual here.
