Soundforce Dual Filter Eurorack Module (MS-20)

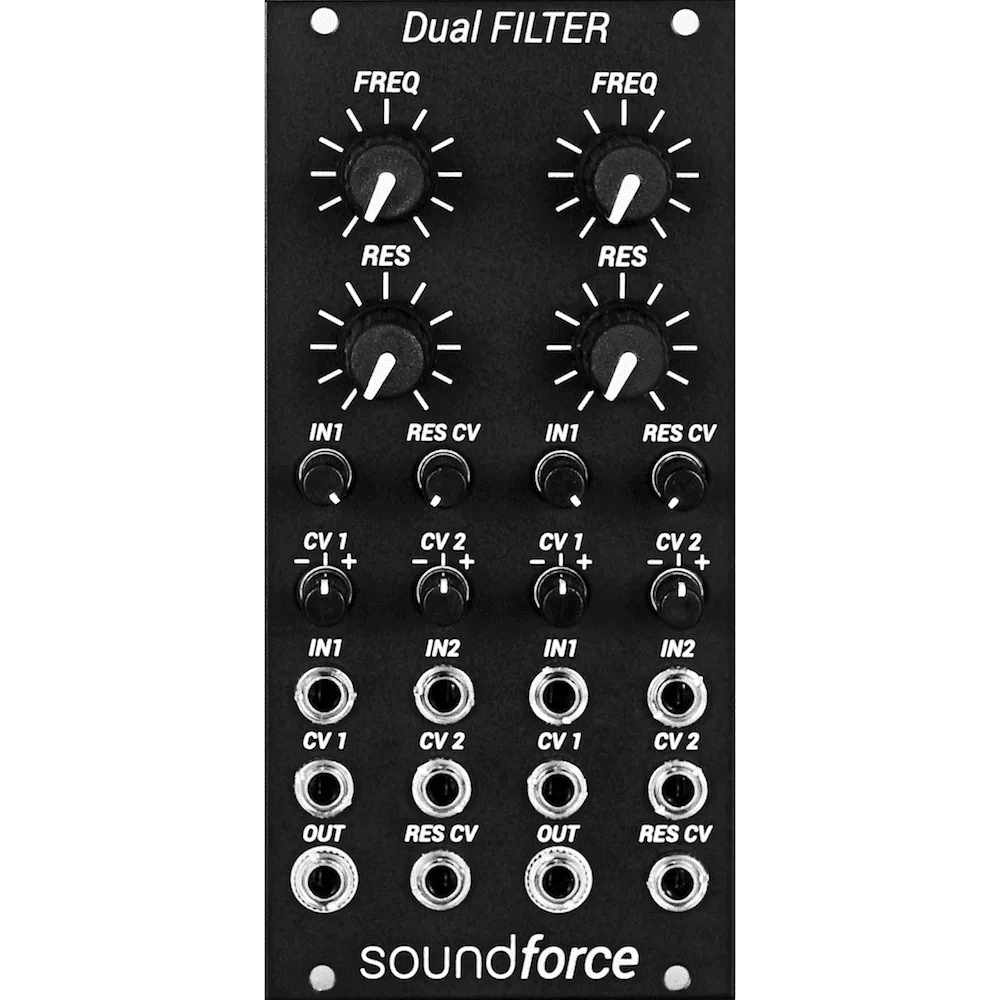

The SoundForce Dual Filter features 2 identical filter sections, one on the left and one on the right. Each filter has 2 audio inputs (one of which has a level control pot IN1), a manual cut off frequency pot and a manual resonance pot. There are 2 CV inputs for the cut off frequency both with their attenuverters and 1 CV input for the resonance with an attenuator.

– 12HP
– Depth: 38mm (including power connector)
– Power: +12V 40mA, -12V 40mA
– Cutoff CV inputs range -10V to 10V
– Resonance CV input range 0V to 10V
